Telecommunication Industry 4G monopole cell tower

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment or negociatable, T/T Supply Ability : 2000 Ton per Month
Place of Origin: china Brand Name: China
Certification: ISO9001,ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,Q690 Extra High Strength Steel Model Number: DINGLI

Detail Information

Material: ASTM A36,ASTM A572 GR65, GR50, Etc. Type: Straight Pole ,Tensile Pole ,Turn Pole
Surface Coating: Hot Dip Galvanization Or Painting Wind Pressure: 5-190 KM/H
Galvanization: Hot Dip Galvanization Life Time: More Than 30 Years
Height: 5-80m Application: Mobile Communication Tower
High Light:

4G telecommunication tower

,

Telecommunication telecom mast

Product Description



Product Name: 4G Cell Monopole Tower for Telecommunication Industry

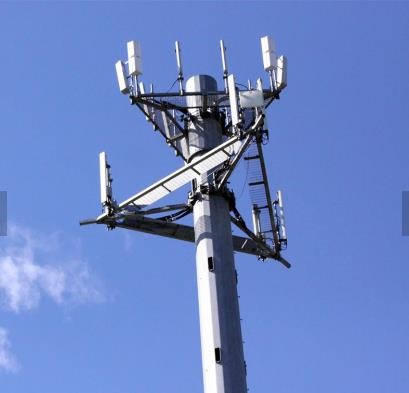

Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and other steel components, and by hot galvanized anti-corrosion treatment, mainly for microwave, ultrashort wave, wireless network signal transmission and transmission.

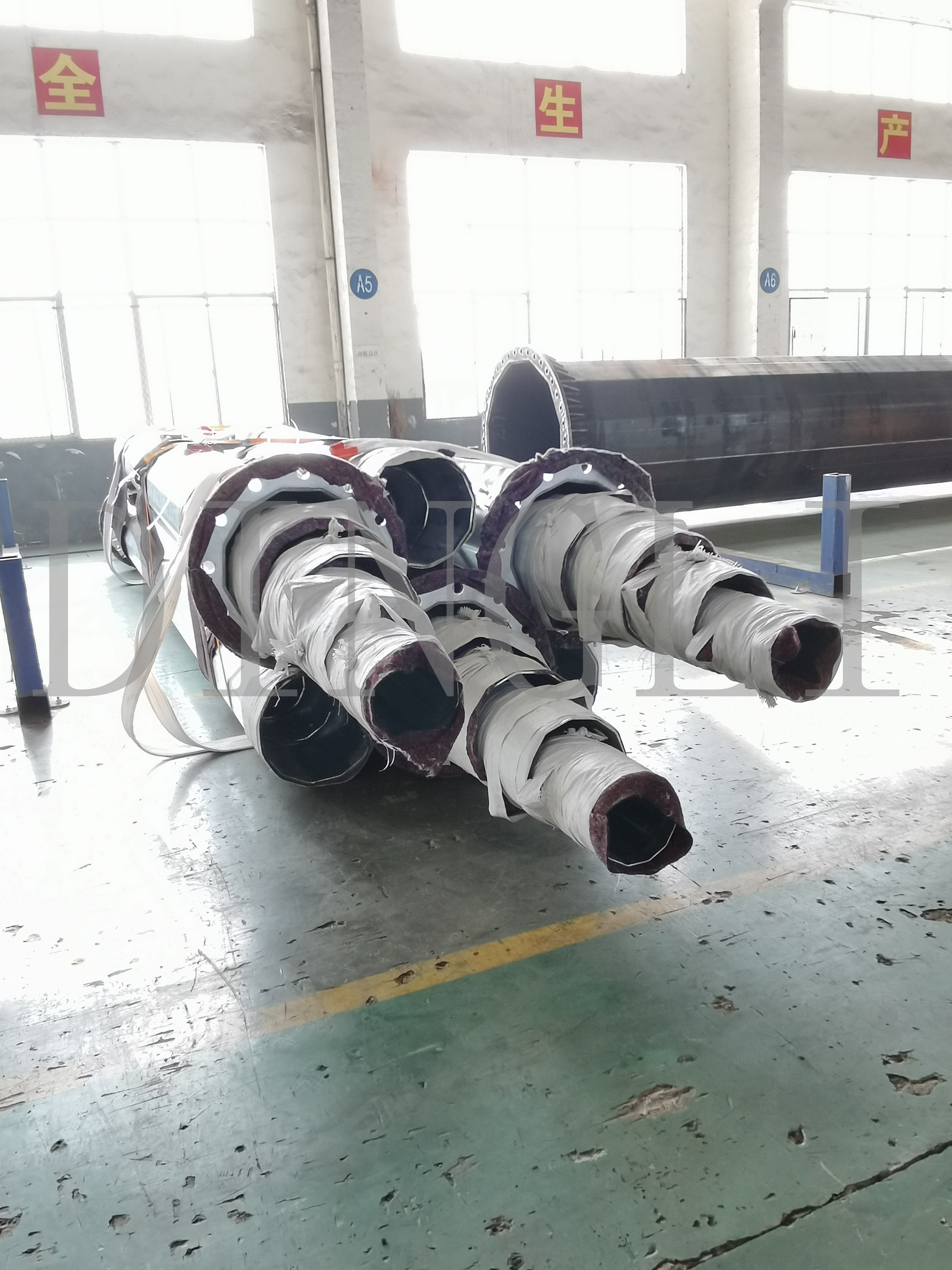

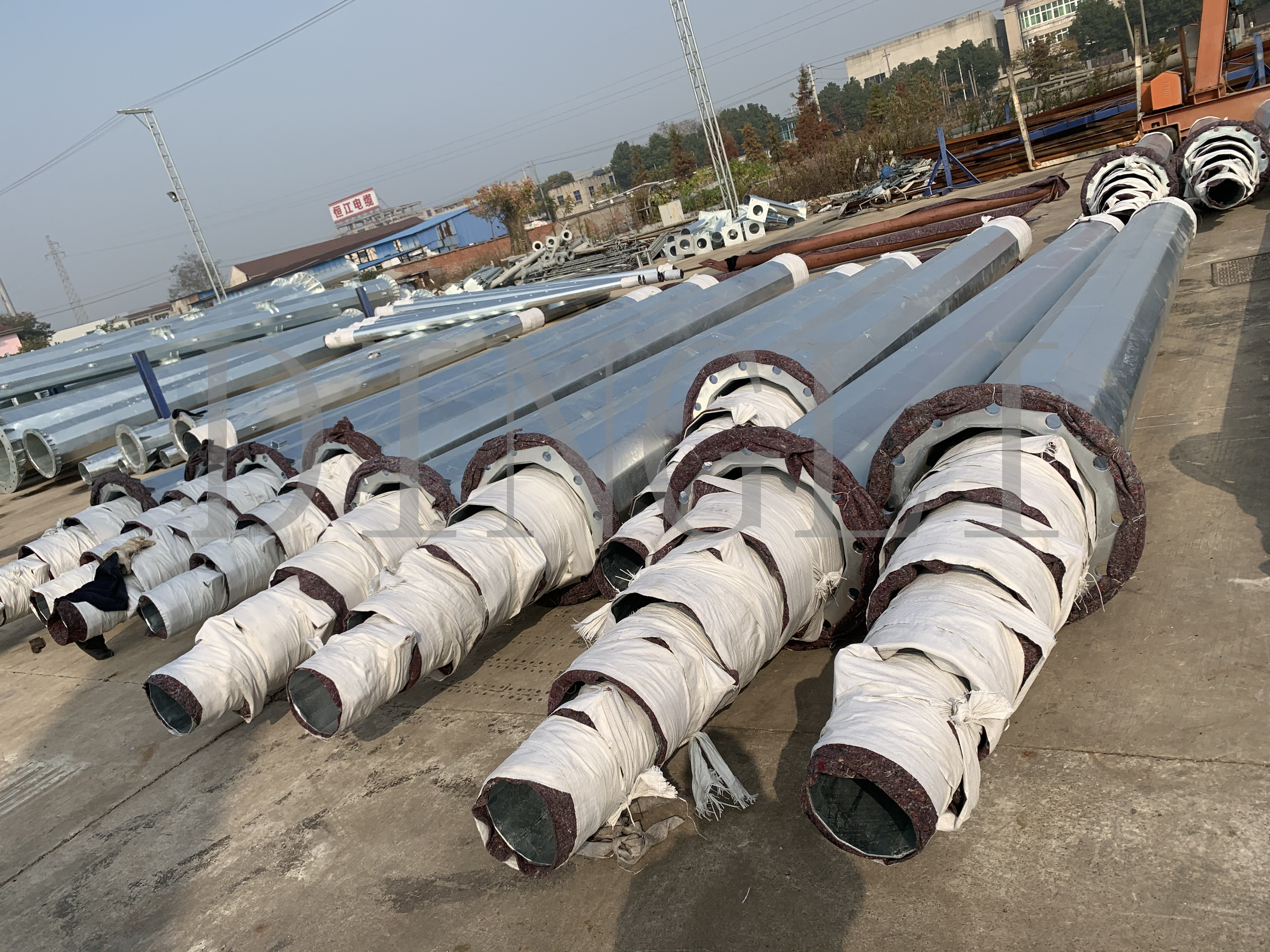

Bundled by Galvanized strapping for 30m Galvanized Steel Single Mast Communication Antenna Poles Cell Phone Radios Monopole Tower

Container bag for Connection Bolts.



Specifications of :4G Cell Monopole Tower

roducts
  • 4G Cell Monopole Tower for Telecommunication Industry
Height
  • 15-60m
Applications
  • Telecommunication, Broadcasting, etc
Shape
  • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc)
Material
  • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material
Surface Treatment
  • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006
  • Can be powder coated or painted according to clients' request
Wall Thickness
  • 2~30mm
Once Forming
  • 16m Once forming without joint
Welding
  • Welding of cell monopole tower complies with AWS D1.1 standard.
  • CO2 welding or submerged arc auto methods
  • No fissure, scar, overlap, layer or other defects
  • Internal and external welding makes cell monopole tower more beautiful in shape
  • If customers need any other requirements of welding on cell monopole tower , we also can make adjustment ad your request
Joint
  • Cell monopole tower is jointed with insert mode, flange mode.
Base plate
  • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.
Life Period
  • More than 25 years, it is according to installing environment

Welding Standard Standard Title

Pole shafts&multi-sided tubular

Cross arms&all accessories

AWS D1.1/D1.1M:2010 Structural Welding Code-Steel
Welding wire AWS D1.1/D1.1M:2010 Structural Welding Code-Steel
Hot dip galvanizing Standard Steel thickness/mm Mean coating thickness/μm Metallic element Content
Pole shafts,cross arms&bolted on accessories ASTM A123/A123M-15 AS/NZS 4680 >6 85

Mn



0.25%-0.40%



<3-6 70
1.5-3 55

Cu



<0.15%



<1.5 55
Bolts,nuts&washers

GB/T 5267.3-2008

(ISO 10684-2004)

_____ ≥ 54 P

<0.025%



Foundation bolts ASTM A153/A153M-09 _____ ≥ 54

S



<0.03%



Hot dip galvanizing Standard Steel thickness/mm

Mean coating

thickness/μm

Metallic element Content

Pole shafts,cross

arms&bolted on

accessories

ASTM A123/

A123M-15 AS/

NZS 4680

>6 85 Mn 0.25%-0.40%
<3-6 70
1.5-3 55 Cu <0.15%
<1.5 55
Bolts,nuts&washers GB/T 5267.3-2008 _____ ≥ 54 P <0.025%
(ISO 10684-2004)
Foundation bolts

ASTM A153/

A153M-09

_____ ≥ 54 S <0.03%



Features of galvanized telescopic antenna mast:

1, wide application

2, standardized design

3, matured technology

4, good quality



Engineering and Design Management



“Design and technology,professional and common, software and hardware” is JSHG‘s cell monopole tower

design philosophy. We have established a close cooperative relationship with design institutions and companies

in the same industry. Through close communication and explorations, our company took in advanced design

concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.



In the R&D Department, there are many experienced senior research & design staff and rigid development

network, which ensure our design proposals meet customer demand, even exceed their expectations.

Telecommunication Industry 4G monopole cell tower 0

Detials of Telecommunication Antennas galvanized steel structure

Telecommunication Industry 4G monopole cell tower 1

Competitive Advantage:

Why Us

1. Experienced staffs replying your inquiry in 24 working hours in fluent English.

2. Customized design is available. OEM&UBM are welcomed.

3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our

well-trained and professional engineers and staff.

4. Professional factory direct :Best price and timely delivery can be assured.

5. Very convenient transportation.

6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to

ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our

company anytime.

Experienced senior engineers and technical staff keeping on learning can help perform design accurately

and timely and ensure quality, reliability and innovation of products. With the help of the latest advanced

design software of PLS-Pole and AutoCAD, experienced engineers of the Company can design schemes

meeting complex landform and environment, so as to meet various needs of customers.

In the whole pole and tower manufacturing industry, experienced engineers and designers make the

Company be available of designing accurately and timely and ensuring quality, safety and easy construction.

On the basis of an excellent design team, the Company further configures software of PLS-Tower, AutoCAD,

BOCAD and other CAD and updates the software in real time to ensure the software is the latest.

Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the engineers

are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will

reduce the weight, and avoid the replacement on the profiles to save the working time.

Project management—Your Dingli Utility project manager oversees all the details necessary to ensure your

project delivers as specified. What’s more, he/she communicates with you every step of the way.

Telecommunication Industry 4G monopole cell tower 2



Package

A. Profiles packing methods:

Profiles will be packed by drums. Each drum shall not exceed 2 tons. The profiles below length of 5.8 meters

at least tied 4 times, above length of 5.8 meters at least tied 6 times, to ensure them are not scattered bundle.

Each drum could be adjusted by customers when packing. And there is a plastic filler piece between every

two profiles to avoid being worn.

B. Steel Plate packing methods:

The steel plate ( including warning signs and number plate) will be packed by iron boxes, each box shouldn’t

exceed 2 tons.

There are beams under the box for forklift loading. And each box has lifting holes around the foursquare easy

for lift loading.

C. Bolts packing methods:

Each type of bolts ( including nuts, washers, etc.) will be individually wrapped in woven bags . Each woven

bag should not exceed 30KG, then packed in metal bucket. Each bucket should not exceed 1.5 tons.

D. Identification

Correspondingly, each product has detailed identification from piece to packing box.

E. New packing solution

We also offer a better protect packing solution, named railway frame loading solution.

Techniques:

The products will be fixed as one unit in the container then mounted on the frame, and there are wheels under

the frames. Installing rails in the container, put the frame with products into the container, then fix it.

In this case, we would additionally charge 1500USD/40GP for the cost price of welding frame and rails in the factory.

Remarks: Dingli has applied patent for this packing method in 20th OCT, 2016.

Telecommunication Industry 4G monopole cell tower 3

Telecommunication Industry 4G monopole cell tower 4

 International Fully Automatic Pollution-free Galvanizing Line

All the production line of galvanization is sealed off, it is operated by 7 workers with a yearly capacity of

160,000 tons.

In the new production line, we invest whole package of lifting equipment, all the loading works will be

completed in our factory, in this case, it will be avoided two times loading during transportation, we are

doing our best to protecting our products as always.

The new production line has improved on the part number tracking system, with this system we are doing

better to avoid the missing parts problem

Telecommunication Industry 4G monopole cell tower 5

Customer Visit

Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and found

ways to solve it together. They set a high value on this cooperation.

Telecommunication Industry 4G monopole cell tower 6



Telecommunication Industry 4G monopole cell tower 7

Product Testing:

On December 16, 2018, the steel poles FAT test for project 20kv transmission line in DR-Congo were

carried out in our company's

steel pole test workshop. Participating in the test were representatives of the Spanish EPC and

representatives team from the

Democratic State Grid of DR- Congo. A total of six representatives came to witness the results of the

FAT test. There had 6

types of steel pole were carried out the FAT test. Items of FAT test includes: Material Test, Proofing

Test and Loading Test.

Customers are very satisfied with the test results of our products. The higher test results show that

the product quality of

our steel poles is very reliable.
