Wind 190KM/H ASTM A36 Tubular 3 Legs Lattice Telecom Tower

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment or negociatable, T/T Supply Ability : 2000 Ton per Month
Place of Origin: china Brand Name: China
Certification: ISO9001,ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,Q690 Extra High Strength Steel Model Number: DINGLI

Detail Information

Material: ASTM A36,ASTM A572 GR65, GR50, Etc. Type: Straight Pole ,Tensile Pole ,Turn Pole
Surface Coating: Hot Dip Galvanization Or Painting Wind Pressure: 5-190 KM/H
Galvanization: Hot Dip Galvanization Life Time: More Than 30 Years
Height: 5-80m Application: Mobile Communication Tower
High Light:

3 Legs Lattice Telecom Tower

,

Tubular Lattice Telecom Tower

,

ASTM A36 Lattice Telecom Tower

Product Description



Product Name:Communication bts fm radio tv satellite tubular steel 3 leges lattice tower



Product Application

Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and

other steel components, and by hot galvanized anti-corrosion treatment, mainly for microwave,

ultrashort wave, wireless network signal transmission and transmission.



Specifications of galvanized telescopic antenna mast:

communication bts fm radio tv satellite tubular steel 3 leges lattice tower
Brand DINGLI
Material Q355/Q345/Q235/Q420 steel
Surface treatment Hot dip galvanized/painting
Height 1-80m, also can customized as buyer’s requirements
Wind speed 30-50m/s, also can customized as buyer’s requirements
Payload 500kg, also can customized as buyer’s requirements
Connection type Flange
Service life More than 30 years
Application Park, uptown, playground, street, etc
Standard GB
Certification ISO9001
Delivery time Within 20 days or depend on the quantity of pole
OEM OK
Welding Standard Standard Title

Pole shafts&multi-sided tubular

Cross arms&all accessories

AWS D1.1/D1.1M:2010 Structural Welding Code-Steel
Welding wire AWS D1.1/D1.1M:2010 Structural Welding Code-Steel
Hot dip galvanizing Standard Steel thickness/mm Mean coating thickness/μm Metallic element Content
Pole shafts,cross arms&bolted on accessories ASTM A123/A123M-15 AS/NZS 4680 >6 85

Mn



0.25%-0.40%



<3-6 70
1.5-3 55

Cu



<0.15%



<1.5 55
Bolts,nuts&washers

GB/T 5267.3-2008

(ISO 10684-2004)

_____ ≥ 54 P

<0.025%



Foundation bolts ASTM A153/A153M-09 _____ ≥ 54

S



<0.03%



Place of Origin:  Henan China (Mainland)
Brand name: DINGLI
Color: User-defined
Certificate: ISO9001:2008
Surface Treatment: Hot Dip Galvanized
Service life: 30 years
Material: Steel
Spare Parts: Parts for connection or installation
Height: 6-50m
Packaging details: Standard seaworthy package(wooden boxes,cotton ,steel strip and other package)or as buyers' requirement
Hot dip galvanizing Standard Steel thickness/mm

Mean coating

thickness/μm

Metallic element Content

Pole shafts,cross

arms&bolted on

accessories

ASTM A123/

A123M-15 AS/

NZS 4680

>6 85 Mn 0.25%-0.40%
<3-6 70
1.5-3 55 Cu <0.15%
<1.5 55
Bolts,nuts&washers GB/T 5267.3-2008 _____ ≥ 54 P <0.025%
(ISO 10684-2004)
Foundation bolts

ASTM A153/

A153M-09

_____ ≥ 54 S <0.03%



Features of galvanized telescopic antenna mast:

1, Wide application

2, Standardized design

3, Matured technology

4, Good quality

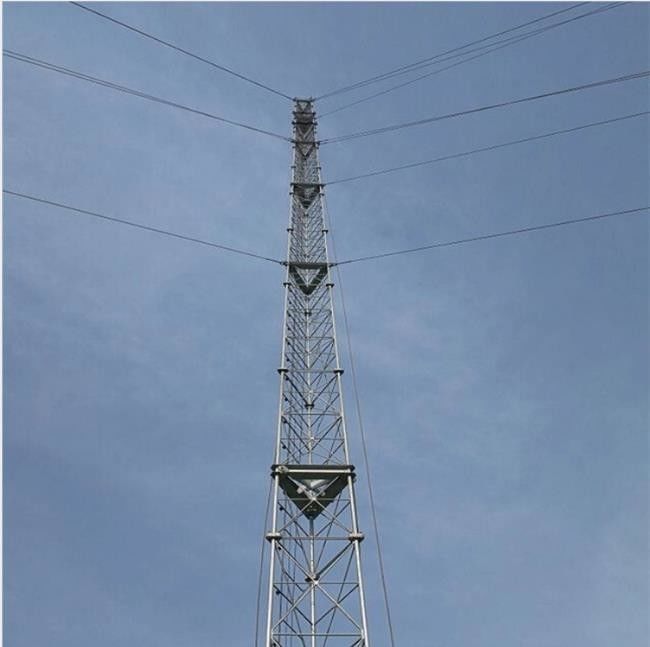

Wind 190KM/H ASTM A36 Tubular 3 Legs Lattice Telecom Tower 0

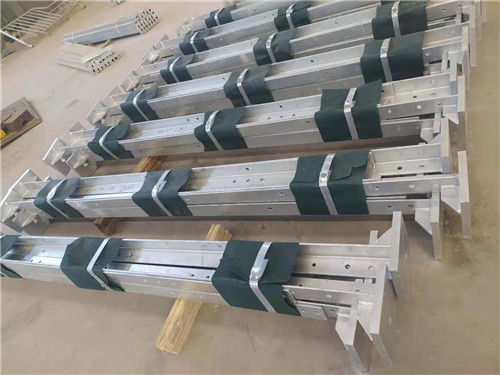

Wind 190KM/H ASTM A36 Tubular 3 Legs Lattice Telecom Tower 1

Detials of Telecommunication Antennas galvanized steel structure

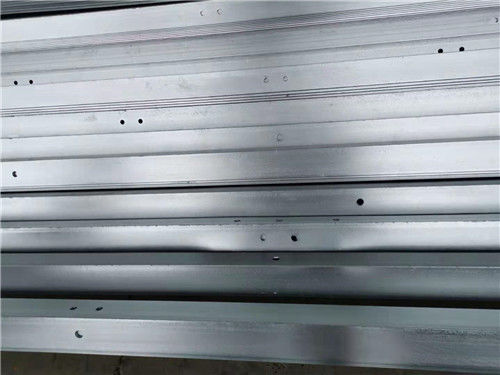

Wind 190KM/H ASTM A36 Tubular 3 Legs Lattice Telecom Tower 2

Competitive Advantage:

Why Us

1. Experienced staffs replying your inquiry in 24 working hours in fluent English.

2. Customized design is available. OEM&UBM are welcomed.

3. Perfect after sales service. Exclusive and unique solution can be provided to our customer

by our well-trained and professional engineers and staff.

4. Professional factory direct :Best price and timely delivery can be assured.

5. Very convenient transportation.

6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians

to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit

our company anytime.

Experienced senior engineers and technical staff keeping on learning can help perform design

accurately and timely and ensure quality, reliability and innovation of products. With the help of the

latest advanced design software of PLS-Pole and AutoCAD, experienced engineers of the Company

can design schemes meeting complex landform and environment, so as to meet various needs of

customers.

In the whole pole and tower manufacturing industry, experienced engineers and designers make the

Company be available of designing accurately and timely and ensuring quality, safety and easy

construction. On the basis of an excellent design team, the Company further configures software of

PLS-Tower, AutoCAD, BOCAD and other CAD and updates the software in real time to ensure the

software is the latest.

Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the

engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard,

which will reduce the weight, and avoid the replacement on the profiles to save the working time.

Project management—Your Dingli Utility project manager oversees all the details necessary to ensure

your project delivers as specified. What’s more, he/she communicates with you every step of the way.



 International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

 After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with

more than 100 engineers. We have special pre-sales engineer to work with customer at early

stage of the project.

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile,

Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has

built production line in Quito and warehouse for transmission line and distribution network in Ecuador,

Bolivia and Senegal with common use spare parts.

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide

technical consultant and design service within our scope of work. For Quito tower design center,

most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB

material standard, which will reduce the weight, and avoid the replacement on the profiles to save

the working time.

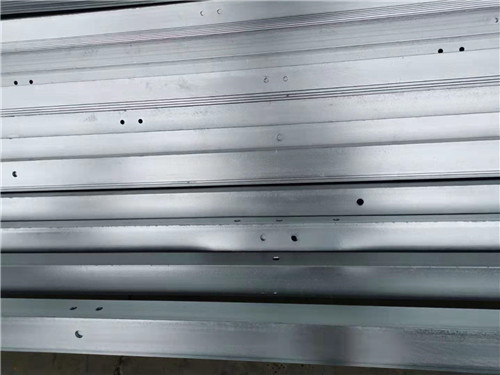

Wind 190KM/H ASTM A36 Tubular 3 Legs Lattice Telecom Tower 3

Package

A. Profiles packing methods:

Profiles will be packed by drums. Each drum shall not exceed 2 tons. The profiles below length of 5.8

meters at least tied 4 times, above length of 5.8 meters at least tied 6 times, to ensure them are not

scattered bundle.

Each drum could be adjusted by customers when packing. And there is a plastic filler piece between

every two profiles to avoid being worn.

B. Steel Plate packing methods:

The steel plate ( including warning signs and number plate) will be packed by iron boxes, each box

shouldn’t exceed 2 tons.

There are beams under the box for forklift loading. And each box has lifting holes around the foursquare

easy for lift loading.

C. Bolts packing methods:

Each type of bolts ( including nuts, washers, etc.) will be individually wrapped in woven bags . Each

woven bag should not exceed 30KG, then packed in metal bucket. Each bucket should not exceed

1.5 tons.

D. Identification

Correspondingly, each product has detailed identification from piece to packing box.

E. New packing solution

We also offer a better protect packing solution, named railway frame loading solution.

Techniques:

The products will be fixed as one unit in the container then mounted on the frame, and there are

wheels under the frames. Installing rails in the container, put the frame with products into the container,

then fix it.

In this case, we would additionally charge 1500USD/40GP for the cost price of welding frame and rails

in the factory.

Remarks: Dingli has applied patent for this packing method in 20th OCT, 2016.

Wind 190KM/H ASTM A36 Tubular 3 Legs Lattice Telecom Tower 4

Wind 190KM/H ASTM A36 Tubular 3 Legs Lattice Telecom Tower 5

International Fully Automatic Pollution-free Galvanizing Line

All the production line of galvanization is sealed off, it is operated by 7 workers with a yearly capacity

of 160,000 tons.

In the new production line, we invest whole package of lifting equipment, all the loading works will be

completed in our factory, in this case, it will be avoided two times loading during transportation, we are

doing our best to protecting our products as always.

The new production line has improved on the part number tracking system, with this system we are doing

better to avoid the missing parts problem

Wind 190KM/H ASTM A36 Tubular 3 Legs Lattice Telecom Tower 6

Customer Visit

Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now,

and found ways to solve it together. They set a high value on this cooperation.

Wind 190KM/H ASTM A36 Tubular 3 Legs Lattice Telecom Tower 7

Wind 190KM/H ASTM A36 Tubular 3 Legs Lattice Telecom Tower 8

Product Testing:

On December 16, 2018, the steel poles FAT test for project 20kv transmission line in DR-Congo

were carried out in our company's

steel pole test workshop. Participating in the test were representatives of the Spanish EPC and

representatives team from the

Democratic State Grid of DR- Congo. A total of six representatives came to witness the results of

the FAT test. There had 6

types of steel pole were carried out the FAT test. Items of FAT test includes: Material Test, Proofing

Test and Loading Test.

Customers are very satisfied with the test results of our products. The higher test results show that

the product quality of

our steel poles is very reliable.
