International Standard Steel Lattice Tower 110kV-230kV Monopoles Steel Lattice Tower
Contact Person : Julia
Phone Number : 86-18037871307
WhatsApp : +8618037871307
| Minimum Order Quantity : | Negotiation | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Standard National Packing Method | Delivery Time : | Depends on the quality of client |
| Payment Terms : | 30% advanced payment , 70% balance payment before shipment. | Supply Ability : | 2000 Ton per Month |
| Place of Origin: | China | Brand Name: | DINGLI |
|---|---|---|---|
| Certification: | ISO9001,ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,Q690 Extra High Strength Steel |
|
Detail Information |
|||
| Material: | All Types,GB/ASTM/JIS/EN. | Type: | Steel Tubular Tower |
|---|---|---|---|
| Surface Coating: | Hot Dip Galvanization Or Painting | Galvanization: | Hot Dip Galvanization |
| Painting: | According To Clients' Request | Life Time: | Minmum 50 Years |
| High Light: | 3 Legged Lattice Steel Towers,100m Lattice Steel Towers,3 Legged transmission steel tower |
||
Product Description

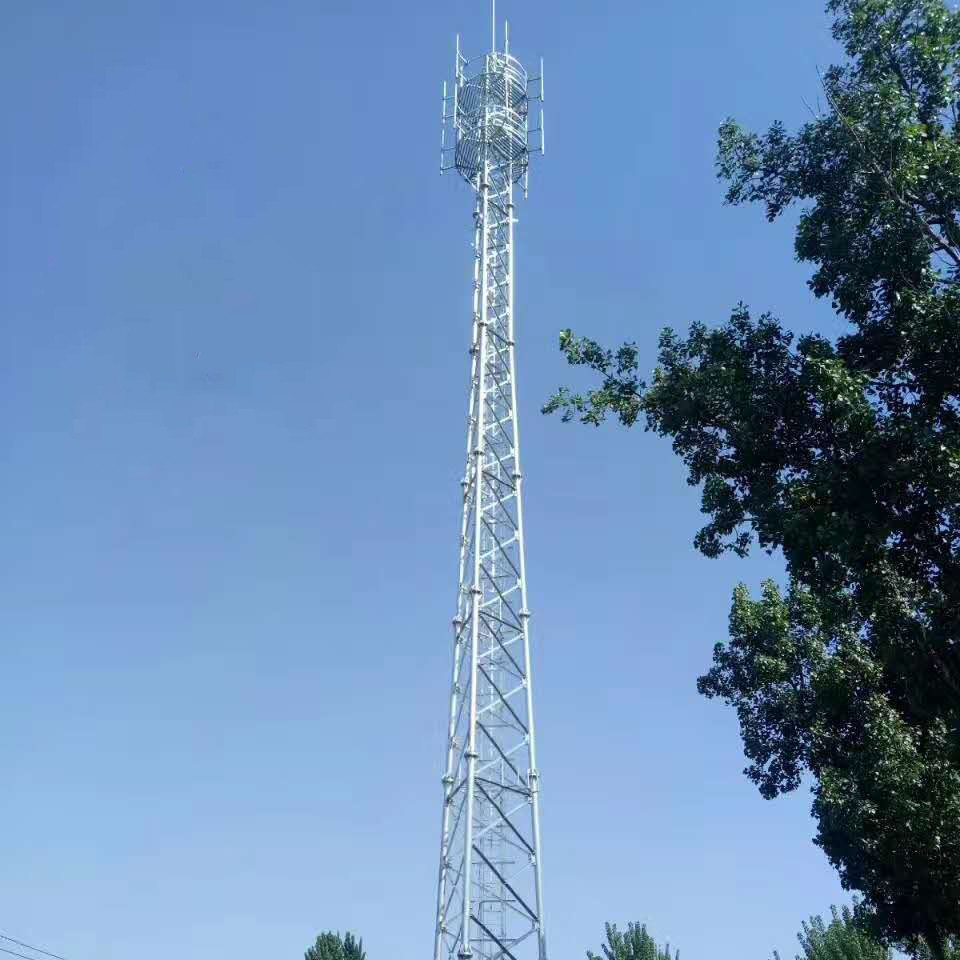

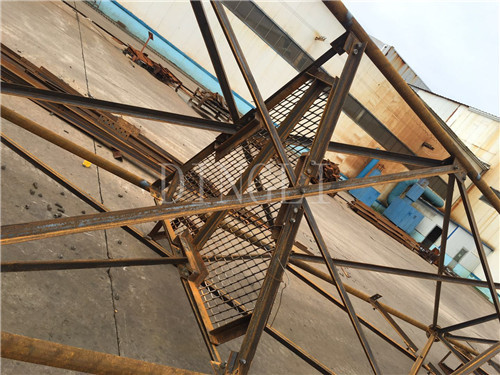

3-Leg Steel Tube Self Supporting Telecommunication Signal Wifi Gsm Cell Phone Telecom Tower
Quick Detail:

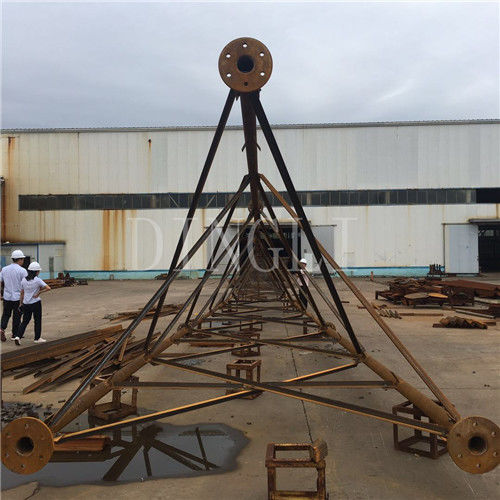

“3 Legged Tubular Steel Tower” adopts triangle layout, which saves steel and occupies less land. The tower
column is made of steel tubes, auxiliary materials are made of Angle steel, and the tower column steel tubes
are connected by flange bolts. An external climbing ladder belt guardrail is set, and feeder supports are set on
both sides of the climbing ladder. This product is beautiful in appearance, economical and applicable.
| Sepcification of Products | ||||
| Service Life |
Structural Safety Level |
Aseismic Strength |
Wind Stability |
Ground Resistance on Lightning Protection |
| 50 Years | Level 2 | Based on the local Seismic Intensity |
Based on the local Maximum Wind Speed in 50 years |
Less than 1 ohm |
| Thickness of Galvanized Layer |
Height | Number of Platforms |
Gravity Load | |
| More than 86um | Designed according to Customer's Requirement |
Designed according to Customer's Requirement |
Designed according to Customer's Requirement |
|
| Material | Q235/Q345/As Per Clients'Requirement |
| Height | 1m-100m |
| Surface treatment | hot dip galvanized or painting |
| Product life | more than 50 years |
| Suitable temperature | -40ºC~60ºC |
| Wind speed | 35m/s |
| Supply type | manufacturer |
| MOQ | 10 tons |
| Certification | ISO |
Production Process
| Shearing | A:Shearing and cutting shall be performed carefully and all portions of the work which will be exposed to view after completion shall be finished neatly. Manually guided cutting torches shall not be used. B:All material over 13 (or 12) mm thick shall be cold sawn or machine flame cut. C:Cropping or shearing shall be allowed for material thickness of 13 mm or less. Flame cutting of high yield steel shall be preceded by a slight preheat operation by passing the cutting flame over the part to be cut. All flame-cut edges shall be ground clean. |
| Bending | Our company owaned the bending machince. Frether more, we can manufacture the towers with hot bending or cold bending according to client's requirements. |
| Welding | No welding shall be done unless prior approval has been obtained from the Engineer. Welding shall not be allowed at tower attachment points for conductor, shield wire, insulators or associated assemblies or brackets |
| Sub-punching | All holes in structural steel less than 10 mm thickness may be punched to full size unless otherwise noted on the approved Drawings. Holes shown on the Drawings as drilled holes and all holes in structural steel 10 mm or more in thickness and tension members of cross-arms shall be drilled or sub-punched and reamed. All holes shall be clean cut and without torn or ragged edges. All burrs resulting from reaming or drilling shall be removed. All holes shall be cylindrical and perpendicular to the member. Where necessary to avoid distortion of the holes, holes close to the points of bends shall be made after bending. |
| Punching | For punching to full size, the diameter of the punch shall be 1.0 mm larger than the nominal diameter of the bolt, and the diameter of the die shall not be more than 1.5mm larger than the diameter of the punch. For sub-punching, the diameter of the punch shall be 4 mm smaller than the nominal diameter of the bolt, and the diameter of the die shall be not more than 2 mm larger than the diameter of the punch. Sub-punching for reamed work shall be such that after reaming no punch surface shall appear in the periphery of the hole |
| Hole Size | Where holes are reamed or drilled, the diameter of the finished hole shall be not greater than the nominal diameter of the bolt plus 1.0 mm. |
| Galvanizing | All material shall be hot-dip galvanized after fabrication in accordance with the latest revision of GB/T 13912-2002 or ASTM Specification A 123. Material that has been rejected because of bare spots or other coating defects shall either be stripped and re-galvanized, or the uncoated areas shall be recoated by an approved method. All plates and shapes which have been warped by the galvanizing process shall be straightened by being re-rolled or pressed. The material shall not be hammered or otherwise straightened in a manner that will injure the protective coating. Approval shall be secured from the Engineer if galvanizing is done outside of the Contractor's plant. All galvanized steel work shall be protected against white storage stain by using an approved solution treatment immediately following galvanizing. |
| Packing | Our product will be packed into several bundles whose weight is 2~3 MT or according to your requirement. |
|
Hot dip galvanizing |
Standard | Steel thickness/mm |
Mean coating thickness/μm |
Metallic Element |
Content |
|
Pole shafts,cross arms&bolted on accessories |
ASTM A123/ A123M-15 AS/ NZS 4680 |
>6 | 85 | Mn | 0.25%-0.40% |
| <3-6 | 70 | ||||
| 1.5-3 | 55 | Cu | <0.15% | ||
| <1.5 | 55 | ||||
| Bolts,nuts&washers | GB/T 5267.3-2008 | _____ | ≥ 54 | P | <0.025% |
| (ISO 10684-2004) | |||||
| Foundation bolts |
ASTM A153/ A153M-09 |
_____ | ≥ 54 | S | <0.03% |
| Inspection Items and Methods | |||
| S/N | Items | Instruments | Methods |
| 1 | Material Specifications |
Steel Ruler Vernier Caliper Thickness Gauge Steel Tape-measure |
Measure the Width and Thickness of Section Steel Measure the Outer Diameter and Wall Thickness of Tublar Steel Measure the Diameter of Round Steel Measure the Thickness of Steel Plate |
| 2 | Chemical Composition of Steel(C,Si,Mn,P,S) | Chemical Composition Analyzer | Inspect according to National Standard GB/T 222-2006. |
| 3 | Mechanical Properties of Steel | Universal Material Testing Machine | Inspect according to National Standard GB/T 228-2002. |
| 4 | Welded Structural Dimension | Weld Inspection Ruler Steel Ruler |
Measure the Weld Length with Steel Ruler. |
| 5 | Internal Quality of Weld | Ultrasonic Detector | Inspect according to National Standard GB 50205-2001. |
| 6 | Hardness of Bolts and Nuts | Brinell Hardness Tester Rockwell Hardness Tester Vickers Hardness Tester |
Brinell Hardness is tested according to Standard GB/T 231.1-2009. Rockwell Hardness is tested according to Standard GB/T 230.1-2009. Vickers Hardness is tested according to Standard GB/T 4340.1-2009. |
Inspection Before Delivery:
Packing Detials:
Competitive Advantage:
Why Us
1. Experienced staffs replying your inquiry in 24 working hours in fluent English.
2. Customized design is available. OEM&UBM are welcomed.
3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our
well-trained and professional engineers and staff.
4.Professional factory direct :Best price and timely delivery can be assured.
5. Very convenient transportation.
6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians
to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit
our company anytime.
In the whole pole and tower manufacturing industry, experienced engineers and designers make the
Company be available of designing accurately and timely and ensuring quality, safety and easy construction.
On the basis of an excellent design team, the Company further configures software of PLS-Tower,
AutoCAD, BOCAD and other CAD and updates the software in real time to ensure the software is the latest.
Supported by both domestic engineering company and Quito tower design center, could provide technical
consultant and design service within our scope of work. For Quito tower design center, most of the engineers
are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will
reduce the weight, and avoid the replacement on the profiles to save the working time.
Project management—Your Dingli Utility project manager oversees all the details necessary to ensure
your project delivers as specified. What’s more, he/she communicates with you every step of the way.
