36kv Composite Zinc Oxide Lightning Arrester And Surge Arrester Distribution

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard export carton, or according to client's requirements. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 5000 Piece/Pieces per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM, Model Number: YH10W-24

Detail Information

Material: Silicone Rubber Type: Distribution Type Lightning Arrester
Model Number: FXBW Series Certification: ISO9001/CE/ROHS
Rated Voltage: 24KV Lekage Distance: 3280/3610 Mm
Nominal Current: 5kA Application: Electricity Distribution
Product Name: Lightning Arrestor
High Light:

36kv Lightning Arrester And Surge Arrester

,

15kv Lightning Arrester And Surge Arrester

,

36kv metal oxide gapless lightning arrester

Product Description

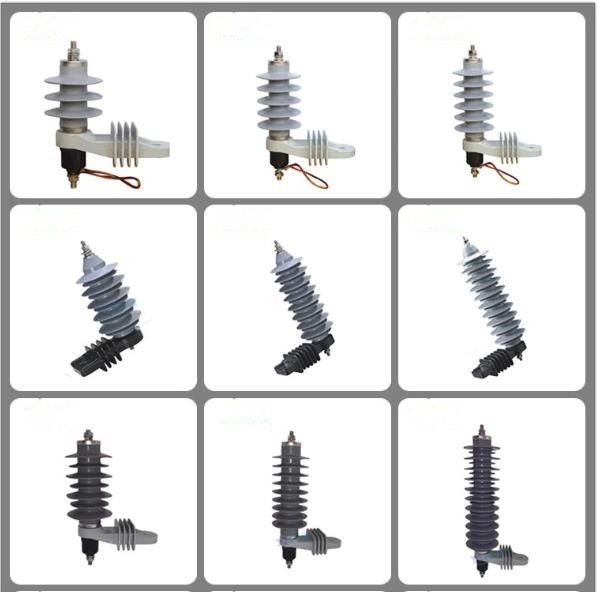

36kv composite zinc-oxide lightning surge thunder arrester suppliers



Product Description:

Conditions Of Use

1.Power frequency:48Hz~62Hz

2.Ambient temperature:-40 degree to + 40 degrees C

3.The maximum wind speed of no more than 35m/s

4.Altitude not exceeding 2000m

5.No more than 8 degree earthquake intensity

6.Ice thickness is less than 10mm

7.Long applied voltage does not exceed the maximum continuous operating voltage of the rays of the sun:

solar maximum irradation(1.1kw/mm²)impact has been in the product type test to be considered,if the arrester

has in the vicinity of other sources,lighting arrester used for both sides.

Product Features:

1.Has the advantages of small volume,light weight,resitance to impact,transport without damage ,flexible installation,

suitable for use in the switch cabinet.

2.Special structure,integrally molded,no gas gap,good sealing performance,moisture-proof explosion-proof;

3.Big creepage distance,good hydrophobicity,strain resistant capability,stable performance,reduce operation and

maintenance;

4.Unique formula of zinc oxide varistor,the leakage current is small,the aging speed,long service life.

5.With the DC refrence voltage square wave,flow capacity and large current withstand capability are higher than

the national standard.



Technical specification

Product Model

Rated Voltage

(kV)

Continuous Operating Voltage

(MCOV)(kV)

Nominal Discharge Current (kA) Rated frequency standard (Hz)

Creepage Distance

(mm)

0.75 U1mA

Leak Current (μA)

Partial discharge

(pC)

8/20μs Ligting Current Impulse (kV) 4/10μs High Current Impulse Witstand(kA)

2ms rectangular current impulse withstand

(A)

HY10W-3kV 3 2.4 10 50 150 15 10 9 100 250
HY10W-6kV 6 4.8 10 50 250 15 10 18 100 250
HY10W-9kV 9 7.2 10 50 350 15 10 27 100 250
HY10W-10kV 10 8 10 50 350 15 10 30 100 250
HY10W-11kV 11 9.4 10 50 450 15 10 33 100 250
HY10W-12kV 12 10.2 10 50 440 15 10 36 100 250
HY10W-15kV 15 12.7 10 50 540 15 10 45 100 250
HY10W-18kV 18 14.4 10 50 640 15 10 54 100 250
HY10W-21kV 21 16.8 10 50 640 15 10 65 100 250
HY10W-24kV 24 19.5 10 50 740 15 10 72 100 250
HY10W-27kV 27 21.6 10 50 840 15 10 81 100 250
HY10W-30kV 30 24 10 50 940 15 10 90 100 250
HY10W-33kV 33 28.8 10 50 1040 15 10 99 100 250
HY10W-36kV 36 29 10 50 1140 15 10 108 108 250



Packaging

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping

cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.

36kv Composite Zinc Oxide Lightning Arrester And Surge Arrester Distribution 0

 International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than

100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.

36kv Composite Zinc Oxide Lightning Arrester And Surge Arrester Distribution 1

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia,

Peru, Ecuador, Senegal, which will make a fast response for customer.

36kv Composite Zinc Oxide Lightning Arrester And Surge Arrester Distribution 2

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production

line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with

common use spare parts.

36kv Composite Zinc Oxide Lightning Arrester And Surge Arrester Distribution 3

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the engineers

are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce

the weight, and avoid the replacement on the profiles to save the working time.

36kv Composite Zinc Oxide Lightning Arrester And Surge Arrester Distribution 4
