8m 9m10m 11m 12m 13m Single Arm Street Lamp Pole 14M Round Tubular Pole

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : sea worthy : professional packing, plastic bag, carton, pallets if clients needed. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 50000 Piece/Pieces per Month
Place of Origin: China Brand Name: DINGLI
Certification: CCC, CE, CQC, RoHS Model Number: SXC-001

Detail Information

Lighting Solutions Service: Lighting And Circuitry Design Material: Galvanized Steel
Q235 Galvanized Steel: Garden,Solar Street Light,Yard,Country Side, Garden Light,Yar Thickness Of Steel:: 2.5mm-20mm
Height: 14m Coating:: Hot Dip Galvanization/Powder Coating
Materials: Q235,Q345,SS355,ASTM Gr50 Shape: Octagonal/Tapered Round/Polygon
Welding: Submerge Arc Welding/Gas Shielded Welding
High Light:

13 Single Arm Street Lamp Pole

,

14m Street Lamp Pole

,

14M Round Tubular Pole

Product Description

8m Single Arm Street Light Lamp Pole



Quick Detail:

MODEL SLP14
Material: steel
Yield strength of Material:

Minimum yield strength>=235n/mm2 for Q235, S235 and SS400

Minimum yield strength>=345n/mm2 for Q345 S355 and Gr 50

Pole height: 14
Length of one part without joint
Wall thickness: 3-4mm
Pole's Shape Can be made: Polygonal, Round, Taper Octagonal, Taper round, Round conical, Taper Square, Square.
Arm type can be made: Single arm, Double arm, Tri-arm, Four-arm
Arm Diameter: Diameter as 42mm, 48mm, 60mm, 76mm and etc, can fit to any diameter’s lamps.

Welding Advanced CNC welding equipment. flaw testing, internal and external double welding makes the welding beautiful in shape. The international welding standards are applied.
Galvanization: Hot dip galvanization with thickness of 80-100µm average in accordance with Turkish TSE standards or European standards.
Manufactury Capacity Per Day: 50

Wall thickness Tolerance:



+- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm. +- 0.5mm from 22mm to 30mm
Painting color: (RAL)Color card or Refer to client’s requirement
Surface treatment 1: Rough pole
Surface treatment 2: Hot dip Galvanizing antirust.
Surface treatment 3: Hot dip galvanizing with powder coating
Temperature range -35 °C~+65 °C
Wind Speed: Aganist wind pressure of 120Km/h to 180Km/h, or according to client design.
Base plate mounted Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement.
Ground mounted: The length buried underground as per customer’s requirement.
Quality Control According to ISO9001-2008 requirements.
Certificates ISO9001-2008, SGS Audited Supplier
Other Less land occupation & easy maintenance.



Galvanized Hexagonal Road / Street Lighting Poles.

  • Our products are manufactured under strict quality concerns witrh maximum smooth finishing and high quality raw material.
  • Our hot dip galvanized poles are of highest norms complying TSE Turkish Standardization and European Standards.
  • Our products are packed according to export standards together with bolt and nuts for fixation.
Areas Of Usage
Streets and Roads Intercity / Interstate Highways Parking Lots Airports Ports Motorways Parks and Gardens Walkway /
Running Paths Construction Sites Squares / Agoras Industrial Areas Sports Areas Arenas Building Lighting Open Campus /

Height

/m

Bottom Dia Top Dia Length - Main - mt Length Bottom mt Sheet Thickness- main Sheet Thickness Bottom Ground Flange Plate Ground Plate Thickness- mm BTW Holes - mm Anchor Type
5 125 60 5,00   3   220 12 160 M12
6 140 60 6,00   3   260 12 180 M16
7 170 60 7,00   3   280 14 200 M16
8 180 60 8,00   3   300 14 210 M16
9 205 60 9,00   3   360 16 250 M20
10 220 60 10,00   3   400 16 270 M20
11 235 60 11,00   3   420 16 290 M20
12 250 60 12,00   3   420 16 290 M20
13 225 60 7,00 6,35 3 4 440 18 290 M24
14 240 60 8,00 6,35 3 4 440 18 290 M24
15 250 60 9,00 6,35 3 4 440 18 290 M24



Console

Differing according to the shape of the pole/post, the arm console can be up to 3 meters. (0.5 mt - 1 mt - 2 mt - 3 mt)
Anchor
The ground fixation point for a strong and tight fastening, generally with concrete block.

Product Description

Production Process



Raw material test → Cutting →Molding or bending →Welidng(longitudinal)

Dimension verify →Flange welding →Hole drilling →Calibration →

Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages



Key information of the steel poles:

>> Material:we just only choose qualified & famous steel manufacturer's products such as Bao Steel,Shagang

Steel,Shougang Steel ect to make sure our product's quality. Any material was found the defects,then all the

rest materials which purchased together with it will be refused and forbidden to be receipt by the warehouse.



Key information of the steel poles:

>> Material:we just only choose qualified & famous steel manufacturer's products such as Bao Steel,Shagang

Steel,Shougang Steel ect to make sure our product's quality. Any material was found the defects,then all the rest

materials which purchased together with it will be refused and forbidden to be receipt by the warehouse.



>> Hot dip galvanization: all our products must be hot dip galvanized according to GB/T13912-2002 or ASTM A123

which can keep the steel poles without rust more than 30 years.Our standard for a good hot dip galvanization steel

pole is same color of the zinc coating without dent mark,no exposed iron and hang of zinc of defect. Normally speaking,

the thickness of the zinc coating is up to the materials thickness.The thicker the material is, the thicker the zinc coating

will be.



8m 9m10m 11m 12m 13m Single Arm Street Lamp Pole 14M Round Tubular Pole 0

8m 9m10m 11m 12m 13m Single Arm Street Lamp Pole 14M Round Tubular Pole 1




8m 9m10m 11m 12m 13m Single Arm Street Lamp Pole 14M Round Tubular Pole 3

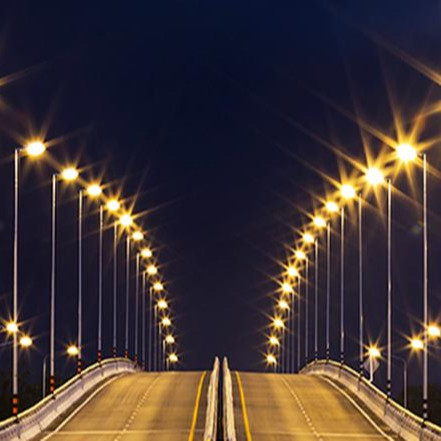

Application:

8m 9m10m 11m 12m 13m Single Arm Street Lamp Pole 14M Round Tubular Pole 4



Packing&Payment&Shipping

Because of there is nearly no any accessories on the poles shaft,so most of the clients agree with delivery the

25ft -40ft steel poles without package which is can save the space of the container,and also can save the

purchasing cost.



8m 9m10m 11m 12m 13m Single Arm Street Lamp Pole 14M Round Tubular Pole 5
Inspection of Customer from electricity company in Congo.

8m 9m10m 11m 12m 13m Single Arm Street Lamp Pole 14M Round Tubular Pole 6


1. About us
HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50

years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering

survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and

so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and

made an outstanding contribution to UHV transmission lines of China.

8m 9m10m 11m 12m 13m Single Arm Street Lamp Pole 14M Round Tubular Pole 7

Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador,

Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers.

We have got a number of international certificates, such as ISO certificate covering design, equipment and construction,

AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica

material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30%

of the company's main revenue. We have provided high-quality products and services to more than 100 customers in

33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and

on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.
2. International Certificate
ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.
3. After-Sale Service
Technical Support
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers.

We have special pre-sales engineer to work with customer at early stage of the project.


8m 9m10m 11m 12m 13m Single Arm Street Lamp Pole 14M Round Tubular Pole 8

Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru,

Ecuador, Senegal, which will make a fast response for customer.
Warehouse and Emergency Supply
Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production

line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with

common use spare parts.

8m 9m10m 11m 12m 13m Single Arm Street Lamp Pole 14M Round Tubular Pole 9
Design and Consultant
Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the engineers

are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce

the weight, and avoid the replacement on the profiles to save the working time.
