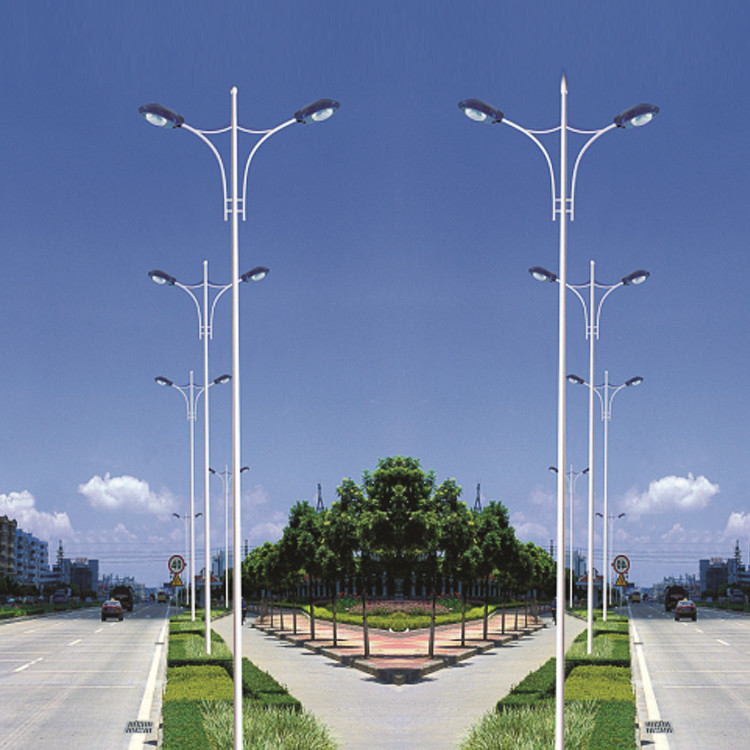

8m 9m 10m Steel Hot Dip Galvanized Road Lighting Pole With Double Detachable Lighting

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : sea worthy : professional packing, plastic bag, carton, pallets if clients needed. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 50000 Piece/Pieces per Month
Place of Origin: China Brand Name: DINGLI
Certification: CCC, CE, CQC, RoHS Model Number: SXC-001

Detail Information

Lighting Solutions Service: Lighting And Circuitry Design Material: Galvanized Steel
Q235 Galvanized Steel: Garden,Solar Street Light,Yard,Country Side, Garden Light,Yar Thickness Of Steel:: 2.5mm-20mm
Height: 6-9m Coating:: Hot Dip Galvanization/Powder Coating
Materials: Q235,Q345,SS355,ASTM Gr50 Shape: Octagonal/Tapered Round/Polygon
Welding: Submerge Arc Welding/Gas Shielded Welding
High Light:

8m Galvanized Road Lighting Pole

,

9m Galvanized Road Lighting Pole

,

10m Galvanized Road Lighting Pole

Product Description

8m 9m 10m China lamp pole factory manufacture steel hot dip galvanized road lighting pole with double

detachable lightin



Quick Detail:

Pole’s height 5m to 40m,or customized.
Material

Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

Hot rolled coil from ASTM A572 GR65, GR50, SS400



Shape of pole

Round conical; Octagonal tapered; Straight square; Tubular stepped;

Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine

Brackets/ Arm Single or double brackets/ arm are in the shape and dimension as per customers’ requirest.
Length Within 14m once forming without slip joint
Wall thickness 3mm to 20mm
Welding It has past flaw testing.Internal and external double welding makes the welding beautiful in shape.And confirms with international welding standard of CWB,B/T13912-92 standard.
Jointing Jointing of pole with insert mode,inner flange mode,face to face joint mode.
Base plate mounted Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement.
Ground mounted The length buried underground as per customers requirement.
Galvanizing Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985.
Powder coating

Pure polyester powder painting, color is optional according to

RAL Color stardand.

Wind Resistance Aganist wind pressure of 160Km/h
Manufacturing According to GB/T 1591-1994,GB/T3323—1989III;GB7000.1-7000.5-1996;GB-/T13912-92; ASTMD3359-83
Quality Control We control the quality according to the flow of ISO9001-2008. Quality is controlled at every stage of production to ensure the product compliance to the specifications/standards. Careful inspections are carried out by highly trained inspection engineers as per the defined procedures from raw material stage to finished product and delivery. Prototype assembly of towers is carried out in the plant.

Product Description

Production Process



Raw material test → Cutting →Molding or bending →Welidng(longitudinal)

Dimension verify →Flange welding →Hole drilling →Calibration →

Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages



Key information of the steel poles:

>> Material:we just only choose qualified & famous steel manufacturer's products such as Bao Steel,Shagang

Steel,Shougang Steel ect to make sure our product's quality. Any material was found the defects,then all the

rest materials which purchased together with it will be refused and forbidden to be receipt by the warehouse.



Key information of the steel poles:

>> Material:we just only choose qualified & famous steel manufacturer's products such as Bao Steel,Shagang

Steel,Shougang Steel ect to make sure our product's quality. Any material was found the defects,then all the rest

materials which purchased together with it will be refused and forbidden to be receipt by the warehouse.



>> Hot dip galvanization: all our products must be hot dip galvanized according to GB/T13912-2002 or ASTM A123

which can keep the steel poles without rust more than 30 years.Our standard for a good hot dip galvanization steel

pole is same color of the zinc coating without dent mark,no exposed iron and hang of zinc of defect. Normally speaking,

the thickness of the zinc coating is up to the materials thickness.The thicker the material is, the thicker the zinc coating

will be.



8m 9m 10m Steel Hot Dip Galvanized Road Lighting Pole With Double Detachable Lighting 0

8m 9m 10m Steel Hot Dip Galvanized Road Lighting Pole With Double Detachable Lighting 1

8m 9m 10m Steel Hot Dip Galvanized Road Lighting Pole With Double Detachable Lighting 2





Application:

8m 9m 10m Steel Hot Dip Galvanized Road Lighting Pole With Double Detachable Lighting 4



Packing&Payment&Shipping

Because of there is nearly no any accessories on the poles shaft,so most of the clients agree with delivery the

25ft -40ft steel poles without package which is can save the space of the container,and also can save the

purchasing cost.



8m 9m 10m Steel Hot Dip Galvanized Road Lighting Pole With Double Detachable Lighting 5
Inspection of Customer from electricity company in Congo.

8m 9m 10m Steel Hot Dip Galvanized Road Lighting Pole With Double Detachable Lighting 6


1. About us
HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50

years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering

survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and

so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and

made an outstanding contribution to UHV transmission lines of China.

8m 9m 10m Steel Hot Dip Galvanized Road Lighting Pole With Double Detachable Lighting 7

Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador,

Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers.

We have got a number of international certificates, such as ISO certificate covering design, equipment and construction,

AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica

material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30%

of the company's main revenue. We have provided high-quality products and services to more than 100 customers in

33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and

on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.
2. International Certificate
ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.
3. After-Sale Service
Technical Support
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers.

We have special pre-sales engineer to work with customer at early stage of the project.


8m 9m 10m Steel Hot Dip Galvanized Road Lighting Pole With Double Detachable Lighting 8

Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru,

Ecuador, Senegal, which will make a fast response for customer.
Warehouse and Emergency Supply
Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production

line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with

common use spare parts.

8m 9m 10m Steel Hot Dip Galvanized Road Lighting Pole With Double Detachable Lighting 9
Design and Consultant
Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the engineers

are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce

the weight, and avoid the replacement on the profiles to save the working time.
