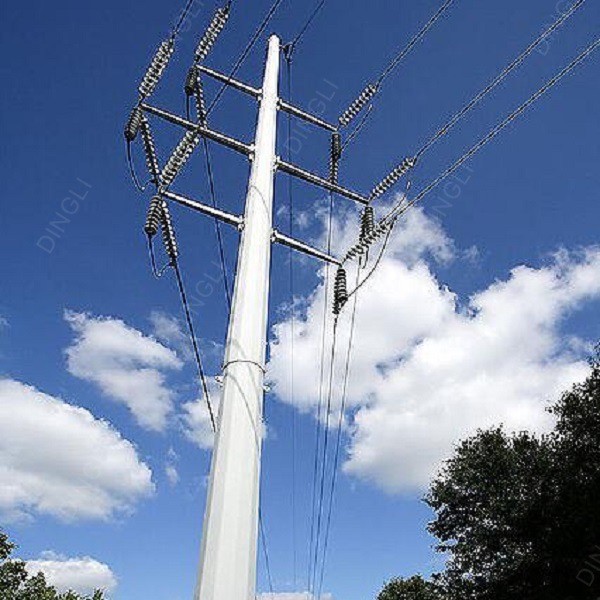

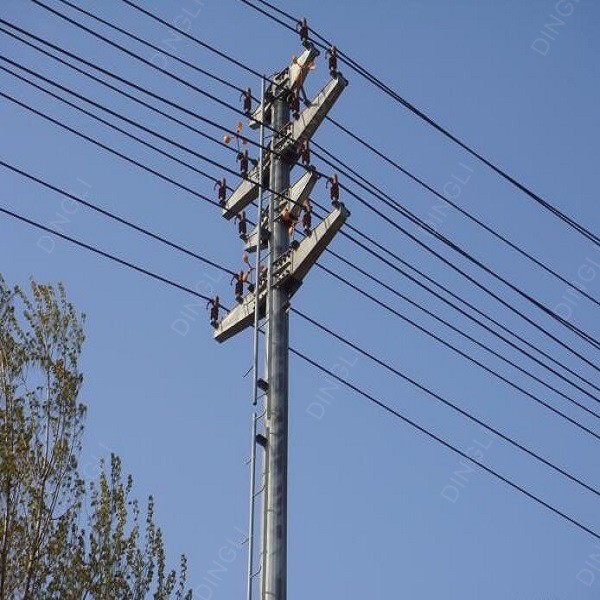

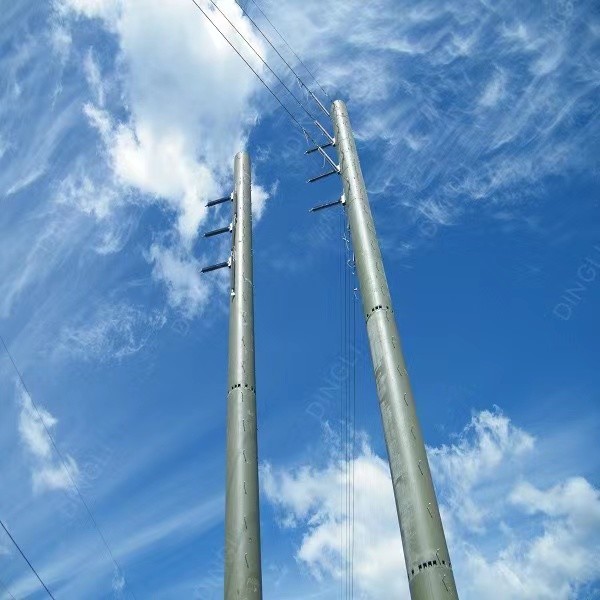

Power Transmission Electrical Steel Tubular Tower Tubular Steel Pole 10-220KV

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 10000 Set/Sets per Week
Brand Name: DINGLI Certification: ISO9001-2008
Model Number: HG-SP-110KV

Detail Information

Place Of Origin: China Voltage Grade: 10-220KV
Material: Hot Roll Steel Q235, Q345, Q420, Q460, Gr.50, Gr.65, SS400, Etc. Shape: Round / Polygonal / Conical / Tubular
Standard: GB / ANSI Appearance Treatment: Hot-dip Galvanized / Painting
Connection Structure: Overlap / Flange Connection Welding: According To AWS D 1.1, CO2 Welding Or Submerged Arc Auto Methods
Application: Power Transmission And Distribution Line Wall Thickness: 2.3-18mm
High Light:

220KV Steel Tubular Tower

,

Power Transmission Steel Tubular Tower

,

220KV Tubular Steel Pole

Product Description

High Quality Power Transmission Tower Pole Electrical Steel Tubular Tower



Quick Details

Products

  •   High Quality Power Transmission Tower Pole Electrical Steel Tubular Tower

Type

  •   Suspension Galvanized Steel Power Pole,Tensile Galvanized Steel Power Pole, Strain Galvanized Steel Power Pole, Angle Galvanized Steel Power Pole, Dead-end Galvanized Steel Power Pole, etc

Voltage Grade

  •   10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )

Shape

  •   Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc)

Material

  •   Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material

Wall thickness

  •   2~30mm

Once Forming

  •   16m Once forming without joint

Welding

  •   Welding of galvanized steel power pole complies with AWS D1.1 standard.

  •   CO2 welding or submerged arc auto methods

  •   No fissure, scar, overlap, layer or other defects

  •   Internal and external welding makes the galvanized steel power pole more beautiful in shape

  •   If customers need any other requirements of welding, we also can make adjustment ad your request

Joint

  •   Joint with insert mode, flange mode.

Base plate

  •   Base plate of galvanized steel power pole is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.

Galvanization

  •   Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.

Painting

  •   According to clients' request

Life Period

  •   More than 25 years, it is according to installing environment

Certificates

  •   ISO9001-2008 , AAA credit rating, etc

Engineering and Design Management

Power Transmission Electrical Steel Tubular Tower Tubular Steel Pole 10-220KV 0

“Design and technology,professional and common, software and hardware” is DINGLI‘s galvanized steel power

pole design philosophy. We have established a close cooperative relationship with design institutions and companies

in the same industry. Through close communication and explorations, our company took in advanced design concept,

introducing domestic and foreign first-class design software, and attracting high-quality personnel.



In the R&D Department, there are many experienced senior research & design staff and rigid development network,

which ensure our design proposals meet customer demand, even exceed their expectations.



Since the establishment, DINGLI have put forward thousands of design proposals covering several industries and fields,

such as power transmission industry, telecommunication industry, lighting industry, etc, which provides complete and

strong technical support and service assurance.



Galvanized Steel Power Pole Process Flowchart

Power Transmission Electrical Steel Tubular Tower Tubular Steel Pole 10-220KV 1

Key Production Equipments for Galvanized Steel Power Pole

Power Transmission Electrical Steel Tubular Tower Tubular Steel Pole 10-220KV 2

Galvanized Steel Power Pole Detail

Power Transmission Electrical Steel Tubular Tower Tubular Steel Pole 10-220KV 3



Our Workshop:

Before put into production, all the material must pass the chemical and physical analysis to make sure that

they have met the requested strength and component. we have more than 15 inspection procedures from

incoming raw material to finished products.We have professional equipment and CNC machinery to guarantee

the quantity.

Galvanized Steel Tubular Substation Structure Transmission Tower



Competitive Advantage:



Why Us

1. Experienced staffs replying your inquiry in 24 working hours in fluent English.

2. Customized design is available. OEM&UBM are welcomed.

3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our well-trained

and professional engineers and staff.

4.Professional factory direct :Best price and timely delivery can be assured.

5. Very convenient transportation.

6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure

our products to be finished in high quality and stable feature. Welcome to contact us or visit our company anytime.

In the whole pole and tower manufacturing industry, experienced engineers and designers make the Company be

available of designing accurately and timely and ensuring quality, safety and easy construction. On the basis of an

excellent design team, the Company further configures software of PLS-Tower, AutoCAD, BOCAD and other CAD

and updates the software in real time to ensure the software is the latest.

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant

and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs.

The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid

the replacement on the profiles to save the working time.

Project management—Your Dingli Utility project manager oversees all the details necessary to ensure your project

delivers as specified. What’s more, he/she communicates with you every step of the way.



1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50

years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering

survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and

so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and

made an outstanding contribution to UHV transmission lines of China.

Power Transmission Electrical Steel Tubular Tower Tubular Steel Pole 10-220KV 5

Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador,

Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers.

We have got a number of international certificates, such as ISO certificate covering design, equipment and

construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate,

Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more

than 30% of the company's main revenue. We have provided high-quality products and services to more than 100

customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical

support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.

To improve the products’ quality and provide superior service for our customers, DINGLI has started using new

Production Line for towers at the beginning of 2018. The production line is the most advanced one in the ASIA,

which with all the equipment from Italy (Brand: FICEP) and satisfying the most strict laws and regulations of environmental

protection in China. The production line equipped with high level of automatic operation, especially the hot dip galvanization,

which can meet ASTM standard, EN standard, GB standard under the computer control system.



2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.



3. After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers.

We have special pre-sales engineer to work with customer at early stage of the project.

Power Transmission Electrical Steel Tubular Tower Tubular Steel Pole 10-220KV 6

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru,

Ecuador, Senegal, which will make a fast response for customer.

Power Transmission Electrical Steel Tubular Tower Tubular Steel Pole 10-220KV 7

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production

line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with

common use spare parts.



Power Transmission Electrical Steel Tubular Tower Tubular Steel Pole 10-220KV 8

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the engineers are

local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the

weight, and avoid the replacement on the profiles to save the working time.

Power Transmission Electrical Steel Tubular Tower Tubular Steel Pole 10-220KV 9

Delivery Site of Client



Power Transmission Electrical Steel Tubular Tower Tubular Steel Pole 10-220KV 10

4. Package

Set-wisely packing or member-wisely packing as per client's requirements.

Tower members: One steel tower is separated into several bundles.

Bolts: Packing material is robust nylon bag or steel drum.

Power Transmission Electrical Steel Tubular Tower Tubular Steel Pole 10-220KV 11



5. Global-network map

China

Henan DINGLI Pole and Tower Co., ltd.

Henan Zhongdingxin Detection Technology Co.,ltd.

Henan Dadi Electricity Engineering Co.,ltd.

Henan DINGLI Power Equipment Co.,ltd

Henan DINGLI Power Construction Co., ltd

Huading Concrete Pole Co., Ltd

Xingjiang Huili Steel Tower Co., Ltd.

Bazhou Dingli Tower Co., Ltd.

Shanghai Sales and Service Center

Beijing Sales and Service Center



Cambodia

Cambodia Phnom Penh Factory



Spain

Madrid (Spain) Sales and Service Center



Dakar, Senegal



Senegal (Dakar) Sales and Service Center

Senegal (Dakar) Spare Part Warehouse



Quito, Ecuador



Quito (Ecuador) Steel Tower Design Center (ASTM Standard)

Quito (Ecuador) Steel Tower Emergency Production Line

Quito (Ecuador) Raw Material and Spare Part Warehouse



Lima, Peru

Lima (Peru) Sales and Service Center



Cochabamba, Bolivia

Cochabamba (Bolivia) Raw Material and Spare Part Warehouse



Santiago, Chile

Santiago (Chile) Sales and Service Center



Jakarta, Indonesia

Jakarta (Indonesia) Sales and Service Center

Power Transmission Electrical Steel Tubular Tower Tubular Steel Pole 10-220KV 12

6. International Fully Automatic Pollution-free Galvanizing Line

All the production line of galvanization is sealed off, it is operated by 7 workers with a yearly capacity of 160,000 tons.

In the new production line, we invest whole package of lifting equipment, all the loading works will be completed

in our factory, in this case, it will be avoided two times loading during transportation, we are doing our best to

protecting our products as always.

The new production line has improved on the part number tracking system, with this system we are doing better

to avoid the missing parts problem.

Power Transmission Electrical Steel Tubular Tower Tubular Steel Pole 10-220KV 13



7. Customer Visit

Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and

found ways to solve it together. They set a high value on this cooperation.

Power Transmission Electrical Steel Tubular Tower Tubular Steel Pole 10-220KV 14

8. Customers and Partners of Dingli

Power Transmission Electrical Steel Tubular Tower Tubular Steel Pole 10-220KV 15
