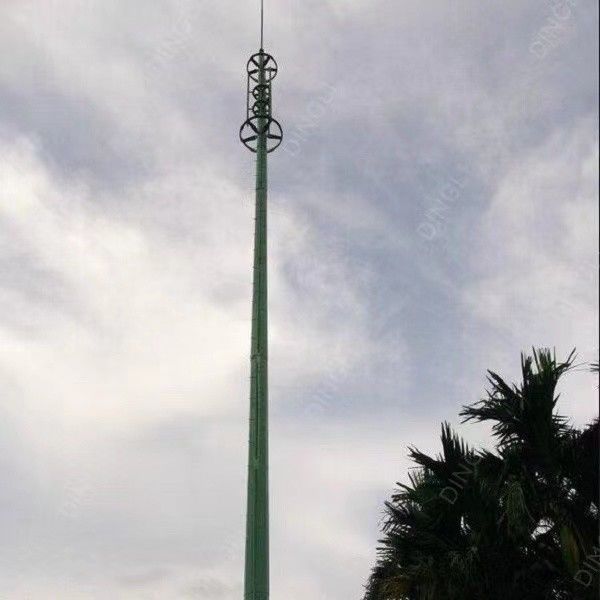

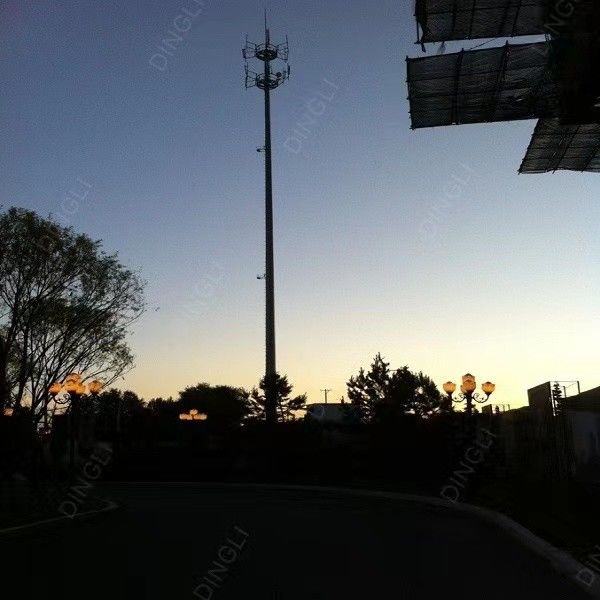

Monopole Tower Planter Steel Galvanized Single Tube Communication Tubular Pole

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Piece/Pieces per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO Model Number: CP-022

Detail Information

Place Of Origin: China Type: Telecommunication Tower
Certification: ISO Material: Q235
Steel Pole: 30-45m Use: Outdoor
Wall Thickness: 3mm To 20mm Wind Resistance: Aganist Wind Pressure Of 160Km/h
High Light:

Monopole Communication Tubular Pole

,

Planter Communication Tubular Pole

,

Galvanized tubular steel pole

Product Description

Monopole Tower Planter Steel Galvanized Single Tube Communication Tubular Pole



Quick Details

Pole’s height

5m to 40m,or customized.

Material

Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

Hot rolled coil from ASTM A572 GR65, GR50, SS400



Shape of pole

Round conical; Octagonal tapered; Straight square; Tubular stepped;

Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine

Brackets/ Arm

Single or double brackets/ arm are in the shape and dimension as per customers’ requirest.

Length

Within 14m once forming without slip joint

Wall thickness

3mm to 20mm

Welding

It has past flaw testing.Internal and external double welding makes the welding beautiful in shape.And confirms with international welding standard of CWB,B/T13912-92 standard.

Jointing

Jointing of pole with insert mode,inner flange mode,face to face joint mode.

Base plate mounted

Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement.

Ground mounted

The length buried underground as per customers requirement.

Galvanizing

Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985.

Powder coating

Pure polyester powder painting, color is optional according to

RAL Color stardand.

Wind Resistance

Aganist wind pressure of 160Km/h

Manufacturing

According to GB/T 1591-1994,GB/T3323—1989III;GB7000.1-7000.5-1996;GB-/T13912-92; ASTMD3359-83

Quality Control

We control the quality according to the flow of ISO9001-2008. Quality is controlled at every stage of production to ensure the product compliance to the specifications/standards. Careful inspections are carried out by highly trained inspection engineers as per the defined procedures from raw material stage to finished product and delivery. Prototype assembly of towers is carried out in the plant.

Production Process

Monopole Tower Planter Steel Galvanized Single Tube Communication Tubular Pole 0

Welding Detail

Monopole Tower Planter Steel Galvanized Single Tube Communication Tubular Pole 1

Powder Coated

Monopole Tower Planter Steel Galvanized Single Tube Communication Tubular Pole 2

Our Workshop:

Before put into production, all the material must pass the chemical and physical analysis to make sure that

they have met the requested strength and component. we have more than 15 inspection procedures from

incoming raw material to finished products.We have professional equipment and CNC machinery to guarantee

the quantity.

Galvanized Steel Tubular Substation Structure Transmission Tower



Competitive Advantage:



Why Us

1. Experienced staffs replying your inquiry in 24 working hours in fluent English.

2. Customized design is available. OEM&UBM are welcomed.

3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our well-trained

and professional engineers and staff.

4.Professional factory direct :Best price and timely delivery can be assured.

5. Very convenient transportation.

6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure

our products to be finished in high quality and stable feature. Welcome to contact us or visit our company anytime.

In the whole pole and tower manufacturing industry, experienced engineers and designers make the Company be

available of designing accurately and timely and ensuring quality, safety and easy construction. On the basis of an

excellent design team, the Company further configures software of PLS-Tower, AutoCAD, BOCAD and other CAD

and updates the software in real time to ensure the software is the latest.

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant

and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs.

The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid

the replacement on the profiles to save the working time.

Project management—Your Dingli Utility project manager oversees all the details necessary to ensure your project

delivers as specified. What’s more, he/she communicates with you every step of the way.



1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50

years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering

survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and

so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and

made an outstanding contribution to UHV transmission lines of China.

Monopole Tower Planter Steel Galvanized Single Tube Communication Tubular Pole 4

Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador,

Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers.

We have got a number of international certificates, such as ISO certificate covering design, equipment and

construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate,

Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more

than 30% of the company's main revenue. We have provided high-quality products and services to more than 100

customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical

support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.

To improve the products’ quality and provide superior service for our customers, DINGLI has started using new

Production Line for towers at the beginning of 2018. The production line is the most advanced one in the ASIA,

which with all the equipment from Italy (Brand: FICEP) and satisfying the most strict laws and regulations of environmental

protection in China. The production line equipped with high level of automatic operation, especially the hot dip galvanization,

which can meet ASTM standard, EN standard, GB standard under the computer control system.



2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.



3. After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers.

We have special pre-sales engineer to work with customer at early stage of the project.

Monopole Tower Planter Steel Galvanized Single Tube Communication Tubular Pole 5

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru,

Ecuador, Senegal, which will make a fast response for customer.

Monopole Tower Planter Steel Galvanized Single Tube Communication Tubular Pole 6

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production

line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with

common use spare parts.



Monopole Tower Planter Steel Galvanized Single Tube Communication Tubular Pole 7

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the engineers are

local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the

weight, and avoid the replacement on the profiles to save the working time.

Monopole Tower Planter Steel Galvanized Single Tube Communication Tubular Pole 8

Delivery Site of Client



Monopole Tower Planter Steel Galvanized Single Tube Communication Tubular Pole 9

4. Package

Set-wisely packing or member-wisely packing as per client's requirements.

Tower members: One steel tower is separated into several bundles.

Bolts: Packing material is robust nylon bag or steel drum.

Monopole Tower Planter Steel Galvanized Single Tube Communication Tubular Pole 10



5. Global-network map

China

Henan DINGLI Pole and Tower Co., ltd.

Henan Zhongdingxin Detection Technology Co.,ltd.

Henan Dadi Electricity Engineering Co.,ltd.

Henan DINGLI Power Equipment Co.,ltd

Henan DINGLI Power Construction Co., ltd

Huading Concrete Pole Co., Ltd

Xingjiang Huili Steel Tower Co., Ltd.

Bazhou Dingli Tower Co., Ltd.

Shanghai Sales and Service Center

Beijing Sales and Service Center



Cambodia

Cambodia Phnom Penh Factory



Spain

Madrid (Spain) Sales and Service Center



Dakar, Senegal



Senegal (Dakar) Sales and Service Center

Senegal (Dakar) Spare Part Warehouse



Quito, Ecuador



Quito (Ecuador) Steel Tower Design Center (ASTM Standard)

Quito (Ecuador) Steel Tower Emergency Production Line

Quito (Ecuador) Raw Material and Spare Part Warehouse



Lima, Peru

Lima (Peru) Sales and Service Center



Cochabamba, Bolivia

Cochabamba (Bolivia) Raw Material and Spare Part Warehouse



Santiago, Chile

Santiago (Chile) Sales and Service Center



Jakarta, Indonesia

Jakarta (Indonesia) Sales and Service Center

Monopole Tower Planter Steel Galvanized Single Tube Communication Tubular Pole 11

6. International Fully Automatic Pollution-free Galvanizing Line

All the production line of galvanization is sealed off, it is operated by 7 workers with a yearly capacity of 160,000 tons.

In the new production line, we invest whole package of lifting equipment, all the loading works will be completed

in our factory, in this case, it will be avoided two times loading during transportation, we are doing our best to

protecting our products as always.

The new production line has improved on the part number tracking system, with this system we are doing better

to avoid the missing parts problem.

Monopole Tower Planter Steel Galvanized Single Tube Communication Tubular Pole 12



7. Customer Visit

Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and

found ways to solve it together. They set a high value on this cooperation.

Monopole Tower Planter Steel Galvanized Single Tube Communication Tubular Pole 13

8. Customers and Partners of Dingli

Monopole Tower Planter Steel Galvanized Single Tube Communication Tubular Pole 14
