66KV Composite High Voltage Lightning Arrester / Polymer Surge Arrester Thunder Arrester

Contact Now

66KV Composite High Voltage Lightning Arrester / Polymer Surge Arrester Thunder Arrester

Name: 66KV Composite High Voltage Lightning Arrester / Polymer Surge Arrester Thunder Arrester
Brand: DINGLI
SKU: YH5WX
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (129 reviews)

Minimum Order Quantity :	Negotiation	Price :	Negotiation
Packaging Details :	Standard export carton, or according to client's requirements.	Delivery Time :	Depends on the quality of client
Payment Terms :	30% advanced payment , 70% balance payment before shipment.	Supply Ability :	5000 Piece/Pieces per Month

Brand Name:	DINGLI	Model Number:	YH5WX

Detail Information
Place Of Origin:	China	Certification:	ISO,GB/T,IEC And Other Certificates
Item:	YH5WX Series	Color:	Red, Brown, Green Or Customized
Tensile Strength:	Excellent	Feature:	Suspension Arrester Without Gap
Creep Distance ≥:	32 Mm/kv	Nominal System Voltage:	66KV Or Customize
High Light:	Composite High Voltage Lightning Arrester , 66KV High Voltage Lightning Arrester , Composite Polymer Surge Arrester

Product Description

High Voltage Composite Lightning Arrester / Polymer Surge Arrester /Thunder Arrester

Product Description:

Model type	Rated voltage	Nominal system voltage	Continuous running voltage	DC U1mA reference voltage	Residual voltage			Discharge current		0.75 U1mA leakage current ≤	Creepage distance
					Lightning impulse current 8/20	Steep current impulse 1/10	Operating waves impact current 30/60	2ms square wave	4/10 μs high current		Level 3 Antifou-ling	Level 4 Antifouling
					Lightning impulse current 8/20	Steep current impulse 1/10	Operating waves impact current 30/60	2ms square wave	4/10 μs high current		Level 3 Antifou-ling	Level 4 Antifouling
	kV effective value			kV≥	kV peak value ≤			A	kA	μA	mm/kV
YH5WX-51/134	51	35	40.8	73	134	154	114	400	65	50	32
YH5WX-51/122	51	35	40.8	73	122	140	104	400	65	50	32
YH5WX-96/232	96	66	72.5	134	232	267	198	400	65	50	28.2	31.2
YH5WX-96/250	96	66	75	140	250	288	213	400	65	50	28.2	31.2
YH10WX-96/232	96	66	72.5	134	232	267	198	600	100	50	28.2	31.2
YH10WX-96/250	96	66	75	140	250	280	213	600	100	50	28.2	31.2
YH10WX-100/260	100	110	78	145	260	291	221	600	100	50	26.8	31.4
YH10WX-102/266	102	110	79.6	148	266	297	226	600	100	50	26.8	31.4
YH10WX-108/281	108	110	84	157	281	315	239	600	100	50	26.8	31.4

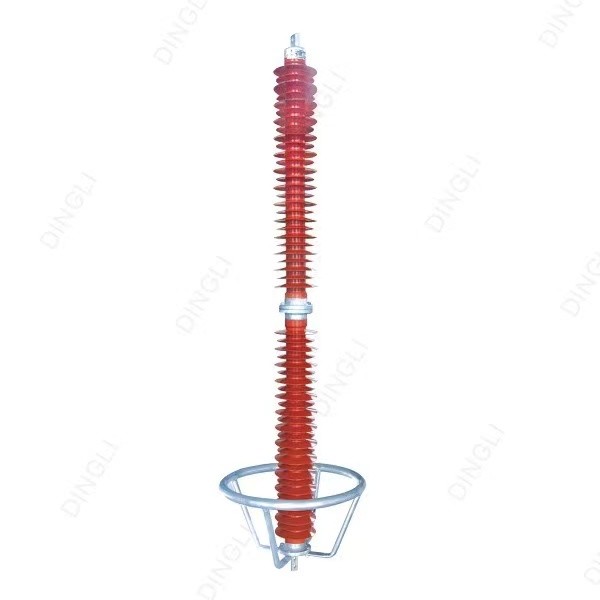

66KV Composite High Voltage Lightning Arrester / Polymer Surge Arrester Thunder Arrester 0

Packaging

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping

cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.

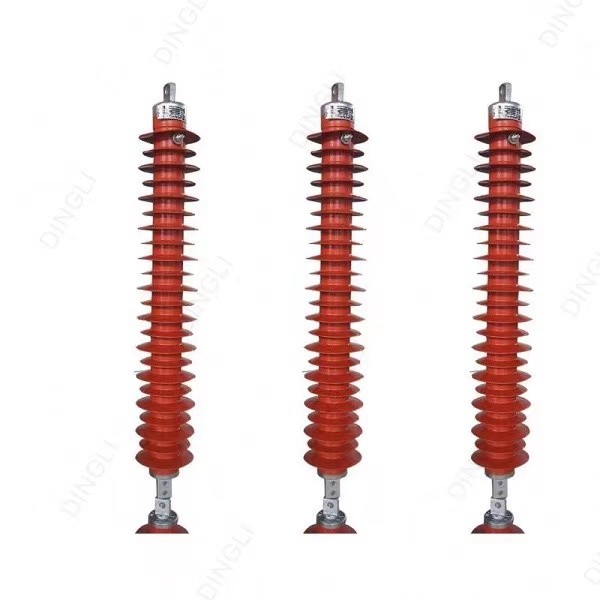

66KV Composite High Voltage Lightning Arrester / Polymer Surge Arrester Thunder Arrester 1

International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than

100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.

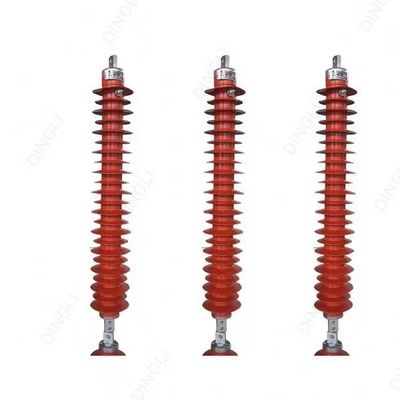

66KV Composite High Voltage Lightning Arrester / Polymer Surge Arrester Thunder Arrester 2

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia,

Peru, Ecuador, Senegal, which will make a fast response for customer.

66KV Composite High Voltage Lightning Arrester / Polymer Surge Arrester Thunder Arrester 3

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production

line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with

common use spare parts.

66KV Composite High Voltage Lightning Arrester / Polymer Surge Arrester Thunder Arrester 4

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the engineers

are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce

the weight, and avoid the replacement on the profiles to save the working time.

66KV Composite High Voltage Lightning Arrester / Polymer Surge Arrester Thunder Arrester 5
