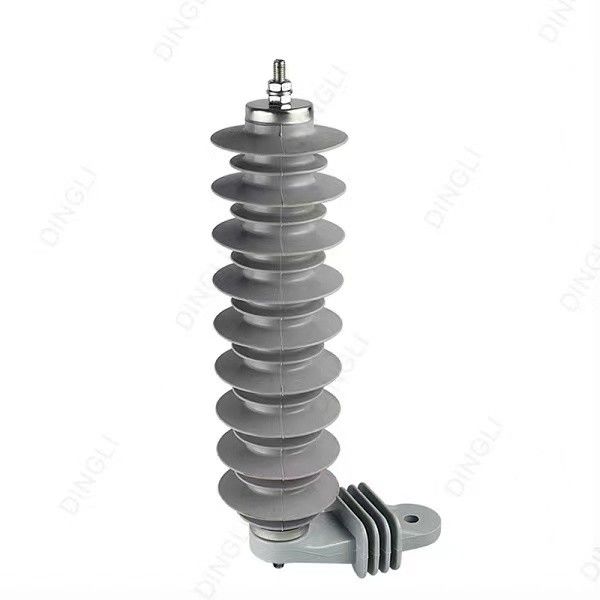

Electrical Equipment Limit Over 24kv / 10ka Lightning Surge Arrester High Voltage

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard export carton, or according to client's requirements. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 10000 Piece/Pieces per Month
Brand Name: DINGLI Certification: CE, ISO, ROHS
Model Number: YH5W-3L

Detail Information

Place Of Origin: China Product Name: Arrester
Color: Grey MOA Rated Voltage: 3KV(r.m.s)
MCOV: 2.55KV(r.m.s) Housing: Polymer
Housing Material: Silicone Rubber Certificate: CE, ISO, ROHS
High Light:

10ka Lightning Surge Arrester

,

24kv Lightning Surge Arrester

,

24ka high voltage surge arrester

Product Description

Electrical Equipment Limit Over 24kv / 10ka Lightning Surge Arrester High Voltage



Quick Detail

Product condition of use

-The ambient air themperatures is no higher than +40℃, no lower than -40℃.

-The altitude above sea level does not exceed 2000m.

-AC system frequency is 50HZ or 60HZ.

-AC voltage brought to bear on arrester for a long time does not exceed arrester's continuous operating voltage.

-Maximun wind speed does not exceed 35m/s.

-The earthquake intensity does not exceed 7 degrees.

Product Parameter

Rated Voltage: 3kV
MOCV : 2.55kV
1/10μS Steep current impuise: 11.3kV
2/20μS lightning current impuise: 9kV
30/60μS witching current impuise: 8.9kV
2μs Rectangular current impluse: 150kV
4/10μs High current impulse: 65kV



Product Drawing

Electrical Equipment Limit Over 24kv / 10ka Lightning Surge Arrester High Voltage 0

Electrical Equipment Limit Over 24kv / 10ka Lightning Surge Arrester High Voltage 1

Product Application

Electrical Equipment Limit Over 24kv / 10ka Lightning Surge Arrester High Voltage 2



Packaging

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping

cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.

Electrical Equipment Limit Over 24kv / 10ka Lightning Surge Arrester High Voltage 3

International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than

100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.

Electrical Equipment Limit Over 24kv / 10ka Lightning Surge Arrester High Voltage 4

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia,

Peru, Ecuador, Senegal, which will make a fast response for customer.

Electrical Equipment Limit Over 24kv / 10ka Lightning Surge Arrester High Voltage 5

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production

line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with

common use spare parts.

Electrical Equipment Limit Over 24kv / 10ka Lightning Surge Arrester High Voltage 6

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the engineers

are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce

the weight, and avoid the replacement on the profiles to save the working time.

Electrical Equipment Limit Over 24kv / 10ka Lightning Surge Arrester High Voltage 7
