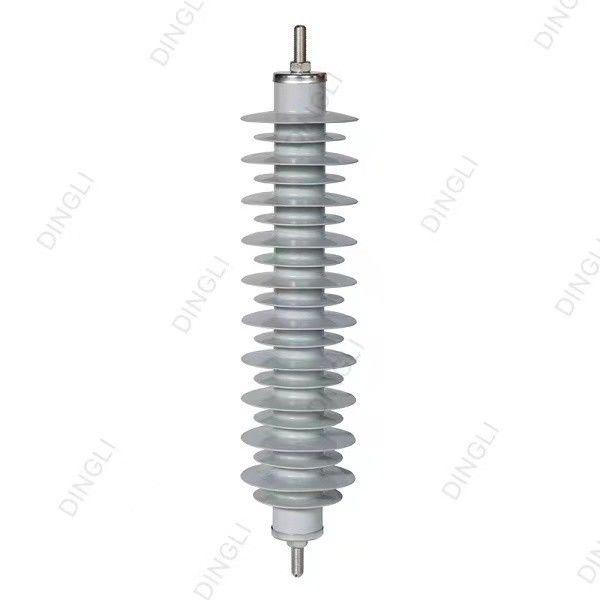

30KV High Voltage Surge Arrestors Silicon Metal Oxide Lightning Arrester

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard export carton, or according to client's requirements. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 1500 Piece/Pieces per Day
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001 Model Number: YH10W5-30

Detail Information

Place Of Origin: China Model Number: YH10W5-30
Material: Silicone Rubber Purpose: Bracket,Insulating Cap,Cooper Lead,Insulator,Hoop
Connection Type: Phase To Earth Structure: Self-Standing
Color: Gray Or Brown Application: Electronic Equipment
High Light:

30KV High Voltage Surge Arrestors

,

Silicon Metal High Voltage Surge Arrestors

,

30KV Metal Oxide Lightning Arrester

Product Description

High Voltage Surge Arrestors Silicon Metal-Oxide Lightning Arrester



Product Description:

Product Show

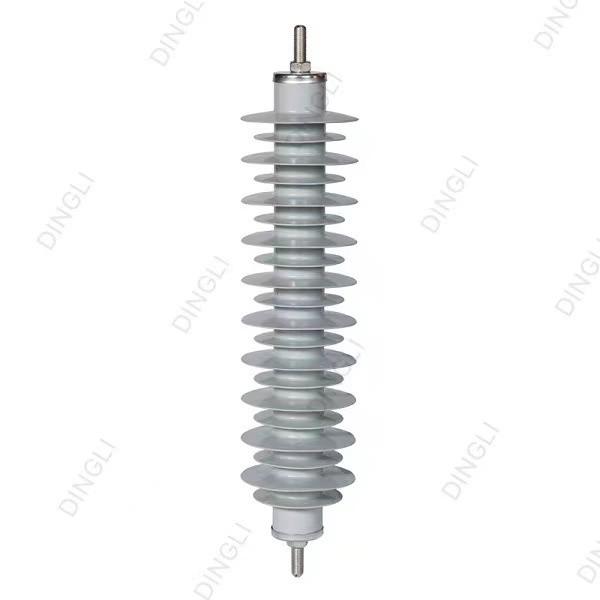

30KV High Voltage Surge Arrestors Silicon Metal Oxide Lightning Arrester 0












0.28kV~500kV Surge Arresters' Characteristics:
1. The Core column applied winding structure, Polymer Housed core pillar molded on the core column,

with almost no internal air gap, and outstanding sealing performance Simple in structure, small in size

and light in weight.
2. Polymer Housed with silicone rubber, explosion-proof ZnO varistor as the core component is large
in flow capacity.
3. International standard IEC 60099-4 and ANSI 62.22, and with high reliability. With fully insulated tops,

the product can be applied to the complete cabinet installation, which can reduce the designing size of cabinet.
4. Products with detachment device can provide signals for quitting operation when failure occurs,
avoiding arrester explosion, and it is maintenance-free.
5. Polymer housed products with a six CTI level, creepage distance meets the requirements of IV level in

heavy pollution areas.



Surge Arresters' Technical Parameters:

Type YH10W5-30/81.6
Rated voltage---------kV 30
MOCV ----------------kV 24.4
Nominal Current-------kA 10
Residual voltage of steep impulse----at 5kA(kV) 88.5
8/20µS Residual voltage of lightning impulse current kV(Peak value)-----at 5kA(kV) 81.6
Residual voltage of switching impulse current kV (peak value)----at 1kA (kV) 62.5
1mA D.C reference voltage (kV) 42.5
Line discharge level 1
2mS long duration impulse current A 400
4/10µS High current impulse kA 100
Lightning impulse withstand kV 200
Power frequency voltage withstand(dry/wet)kV 70
0.1S TOV--------------kV 36
1S TOV----------------kV 34.5
10S TOV---------------kV 33
1200S TOV-------------kV 30
Creepage distance ----mm 1082
Material employed in series non-linear resistor Zinc Oxide



Packaging

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about

the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.

30KV High Voltage Surge Arrestors Silicon Metal Oxide Lightning Arrester 1

 International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than

100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.

30KV High Voltage Surge Arrestors Silicon Metal Oxide Lightning Arrester 2

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia,

Peru, Ecuador, Senegal, which will make a fast response for customer.

30KV High Voltage Surge Arrestors Silicon Metal Oxide Lightning Arrester 3

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production

line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with

common use spare parts.

30KV High Voltage Surge Arrestors Silicon Metal Oxide Lightning Arrester 4

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the engineers

are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce

the weight, and avoid the replacement on the profiles to save the working time.

30KV High Voltage Surge Arrestors Silicon Metal Oxide Lightning Arrester 5
