Self Supporting Galvanized Angle Lattice Steel Towers For Telecommunication

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 1000 Ton/Tons per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001 Model Number: 3 Legs Angle Tower

Detail Information

Place Of Origin: China Model Number: 3 Legs Angle Tower
Matieral: ASTM A36 A572 Gr50/S275JR S275JR Height: 5-200M
Galvanized: Hot Dipped Galvanized Certificat: ISO9001:2008 SGS COC
Structure: Three Support Legs Galvanization Standard: ASTM A123/ ISO 1461
Wind Speed: 30M/S Lifetime: More Than 20 Years
High Light:

Galvanized Angle Lattice Steel Towers

,

Self Supporting Lattice Steel Towers

,

60m lattice transmission tower

Product Description

Self Supporting Galvanized Angle Steel Lattice Tower For Telecommunication



Quick Detail:



Design

1. Design Code

TIA/EIA-222-G/F

Structure Steel

2. Grade

Mild Steel

High Tensile Steel

GB/T 700:Q235B, Q235C,Q235D

GB/T1591:Q345B, Q345C,Q3455D

ASTM A36

ASTM A572 Gr50

EN10025: S235JR, S235J0,S235J2

EN10025: S355JR, S355J0,S355J2

3. Design Wind Speed

Up to 250 km/h

4. Allowable deflection

0.5 ~1.0 degree @ operational speed

5. Tension strength (Mpa)

360~510

470~630

6. Yield strength (t≤16mm) (Mpa)

355

235

7. Elongation (%)

20

24

8. Impact strength KV (J)

27(20°C)---Q235B(S235JR)

27(20°C)---Q345B(S355JR)

27(0°C)---Q235C(S235J0)

27(0°C)---Q345C(S355J0)

27(-20°C)---Q235D(S235J2)

27(-20°C)---Q345D(S355J2)

Bolts & Nuts

9. Grade

Grade 4.8, 6.8, 8.8

10. Standards for mechanical properties

10.1 Bolts

ISO 898-1

10.2 Nuts

ISO 898-2

10.3 Washers

ISO 6507-1

11. Standards for Dimensions

11.1 Bolts

DIN7990, DIN931, DIN933

11.2 Nuts

ISO4032, ISO4034

11.3 Washers

DIN7989, DIN127B, ISO7091

Welding

12. Method

CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)

13. Standard

AWS D1.1

Galvanizing

14. Galvanization standard of steel sections

ISO 1461 or ASTM A123

15. Galvanization standard of bolts and nuts

ISO 1461 or ASTM A153

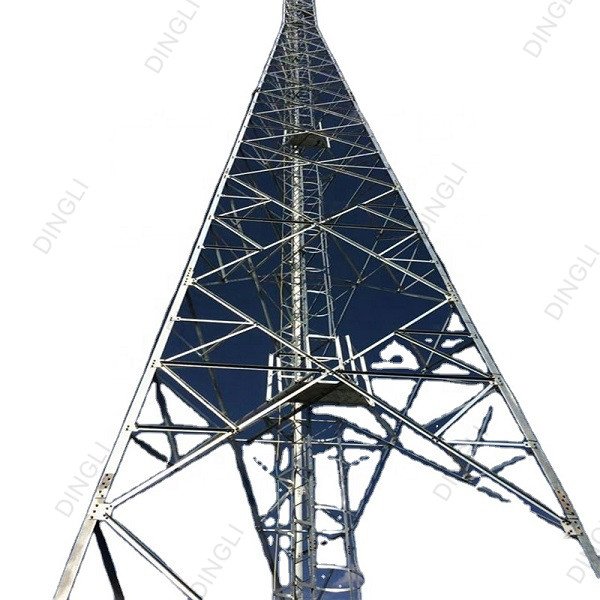

Self Supporting Galvanized Angle Lattice Steel Towers For Telecommunication 0

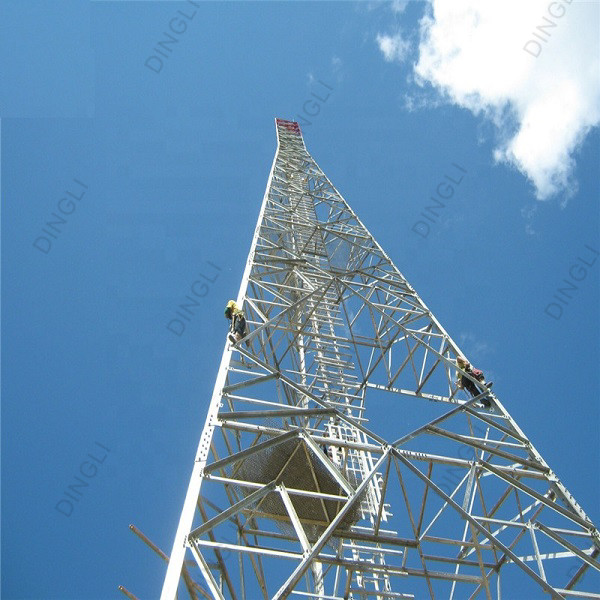

Self Supporting Galvanized Angle Lattice Steel Towers For Telecommunication 1

Self Supporting Galvanized Angle Lattice Steel Towers For Telecommunication 2

Self Supporting Galvanized Angle Lattice Steel Towers For Telecommunication 3

Inspection Before Delivery:

Self Supporting Galvanized Angle Lattice Steel Towers For Telecommunication 4

Packing Detials:

Self Supporting Galvanized Angle Lattice Steel Towers For Telecommunication 5

Self Supporting Galvanized Angle Lattice Steel Towers For Telecommunication 6



Competitive Advantage:



Why Us

1. Experienced staffs replying your inquiry in 24 working hours in fluent English.

2. Customized design is available. OEM&UBM are welcomed.

3. Perfect after sales service. Exclusive and unique solution can be provided to our customer by our

well-trained and professional engineers and staff.

4.Professional factory direct :Best price and timely delivery can be assured.

5. Very convenient transportation.

6. As an honest seller, we always use superior raw material, advanced machines, skilled technicians

to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit

our company anytime.



In the whole pole and tower manufacturing industry, experienced engineers and designers make the

Company be available of designing accurately and timely and ensuring quality, safety and easy construction.

On the basis of an excellent design team, the Company further configures software of PLS-Tower,

AutoCAD, BOCAD and other CAD and updates the software in real time to ensure the software is the latest.

Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the engineers

are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will

reduce the weight, and avoid the replacement on the profiles to save the working time.

Project management—Your Dingli Utility project manager oversees all the details necessary to ensure

your project delivers as specified. What’s more, he/she communicates with you every step of the way.
