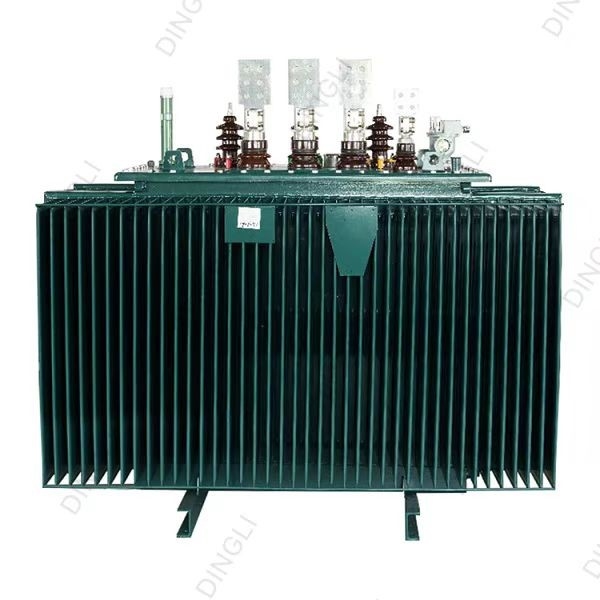

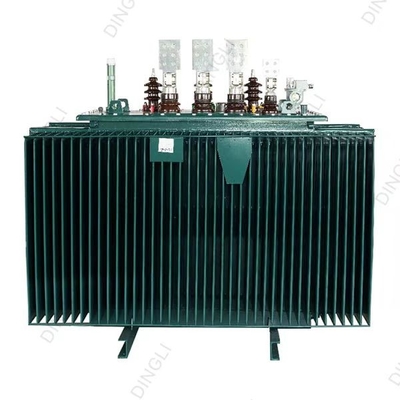

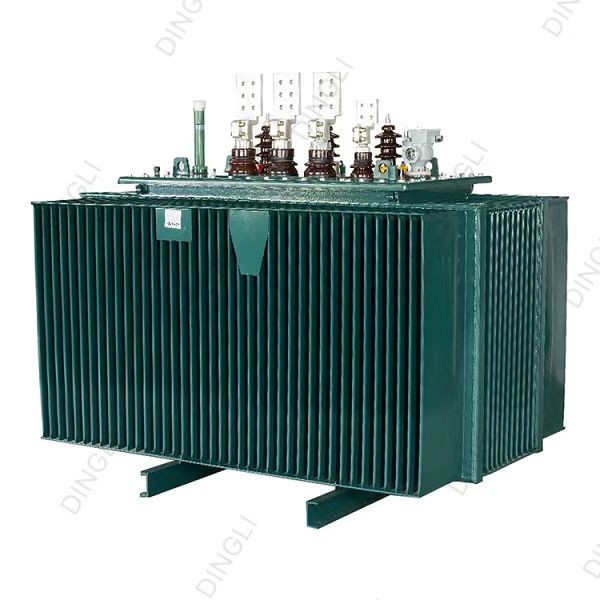

S11 2000 KVA 10/11KV Oil Type Distribution Transformer Electrical Power Voltage Up

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : ls International standard wood case or according to client's requests Best selling 66kv 20mva 3 phase 2 windings transformer oil price Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 100 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,SGS Model Number: S11-M-2000/10

Detail Information

Material: Copper Or Aluminum Type: Oil-type
Coil Number: AUTOTRANSFORMER Certification: ISO9001/CE
Usage: Power Phase: Three
Coil Structure: Toroidal High Voltage: 10KV
Rated Capacity: 2000kVA Low Voltage: 0.4kV
Frequency: 50/60Hz No-load Loss: 1.94kW
Load Loss: 18.3kW
High Light:

11KV Oil Type Distribution Transformer

,

S11 Oil Type Distribution Transformer

,

2000 KVA Oil Type Distribution Transformer

Product Description

S11 2000 KVA 10/11KV Oil Type Electrical Power Voltage Up Distribution Transformer

Quick Detail:
 S11 2000 KVA 10/11KV Oil Type Distribution Transformer Electrical Power Voltage Up 0

S11 2000 KVA 10/11KV Oil Type Distribution Transformer Electrical Power Voltage Up 1


Main Functions And Features :
The iron core of S11-M series low loss energy-saving transformer produced by our company adopts laminated

structure. This product is based on fully absorbing the advanced technology and process of domestic oil immersed

transformer, combined with the technical level of our company, putting the reliability of the product in the first place,

at the same time, the no-load loss and no-load current of the product are greatly reduced.


S11 2000 KVA 10/11KV Oil Type Distribution Transformer Electrical Power Voltage Up 2

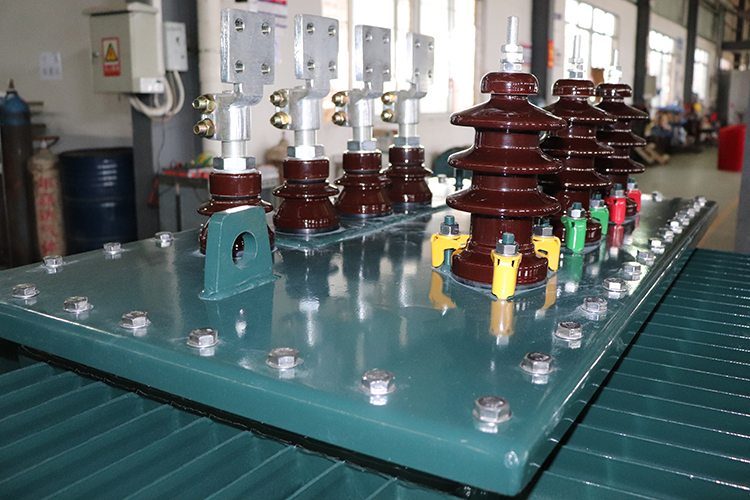

Strong Ability Of Withstanding Short-Circuit
The coil adopts a low axial short-circuit force structure. When the transformer is short-circuited, it can greatly reduce the axial short-circuit force and greatly improve the ability of withstanding short-circuit.

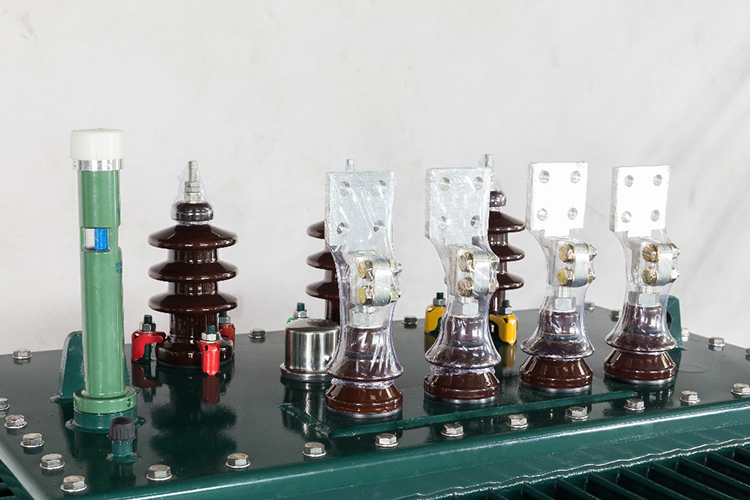

304 Stainless Steel Material
All the bolts and nuts on the cover surface are made of 304 stainless steel, which enhances the rust prevention ability of the transformer.
S11 2000 KVA 10/11KV Oil Type Distribution Transformer Electrical Power Voltage Up 3

S11 2000 KVA 10/11KV Oil Type Distribution Transformer Electrical Power Voltage Up 4

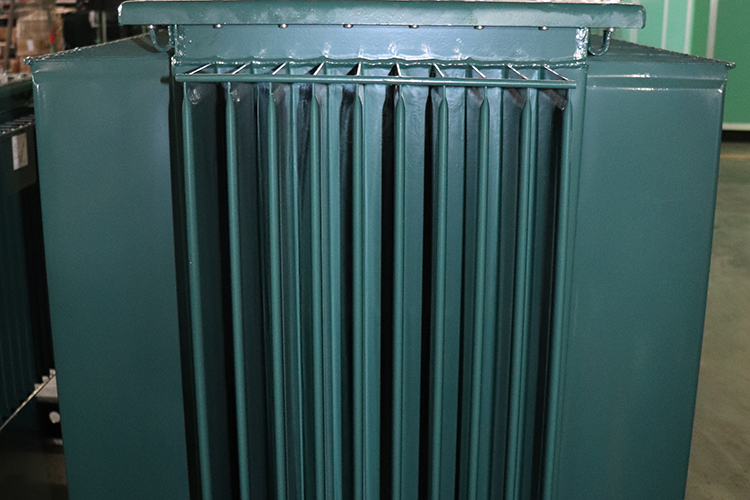

High-Quality Sealing Rubber Ring
Each sealing rubber ring adopts the best rubber material in China, which greatly prolongs the service life of the sealing rubber ring.

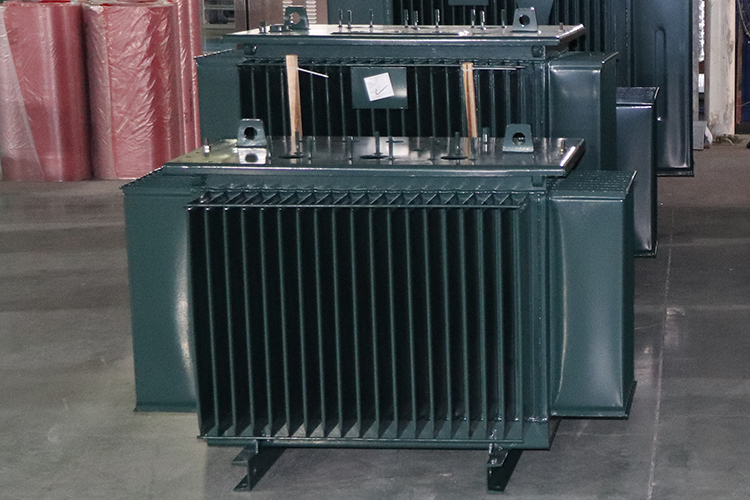

High-Reliability Support Structure
The transformer body adopts a high-reliability support structure to ensure reliable compression of the upper and lower parts of the coil. The entire body structure improves the ability of withstanding short-circuited.
S11 2000 KVA 10/11KV Oil Type Distribution Transformer Electrical Power Voltage Up 5

S11 2000 KVA 10/11KV Oil Type Distribution Transformer Electrical Power Voltage Up 6

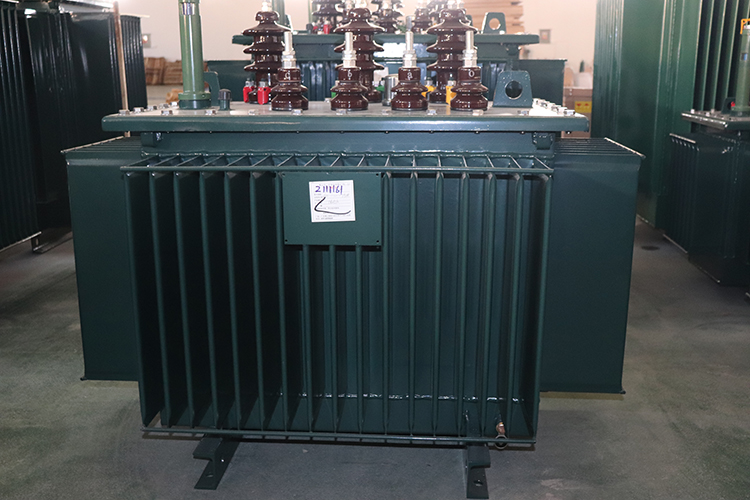

A Lower Magnetic Flux Density
This not only reduces the no-load loss of the transformer, but also ensures that the core flux is not saturated when the transformer is operating under voltage, so that the third harmonic of the transformer is small.

Technical Data:



Rated Capacity

2000kVA

High Voltage

10kV

Low Voltage

0.4kV

Short circuit resistance

5%

No-load Loss

1.94kW

Load Loss

18.3kW

No-load Current

0.4%

Frequency

50/60Hz

Connection Method

Yyn0/Dyn11

Material

aluminum/copper

Size

2030x1340x2000mm

Weight

4500kg



S11 2000 KVA 10/11KV Oil Type Distribution Transformer Electrical Power Voltage Up 7

S11 2000 KVA 10/11KV Oil Type Distribution Transformer Electrical Power Voltage Up 8

Workshop:

S11 2000 KVA 10/11KV Oil Type Distribution Transformer Electrical Power Voltage Up 9

Packaging
1. Specific packaging can be made to order.
You can specify other shipping methods such as Airmail, FEDEX or DHL.
We shall let you know about the shipping cost after receipt of your order.
And also can send by sea or air, kindly send me the port of yours.

S11 2000 KVA 10/11KV Oil Type Distribution Transformer Electrical Power Voltage Up 10
