1500 Kva Dry Type Distribution Transformer Indoor Type Electric Transformer

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : wooden box Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 100 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,SGS Model Number: SC,SC

Detail Information

Material: Copper Type: Dry Type
Model Number:: SC,SCB Certification: ISO9001/CE
Usage: Power Distrubution Standard: IEC 60076
Phase: Three Coil Structure: Toroidal
Input Voltage:: 10/20/35KV Output Voltage: 220-400V
Joint Groups: Ynd11/Yyn0 Cooling Method: ANAF
High Light:

power distribution transformer

,

three phase isolation transformer

Product Description

1500 Kva Dry Type Distribution Transformer Indoor Type Electric Transformer

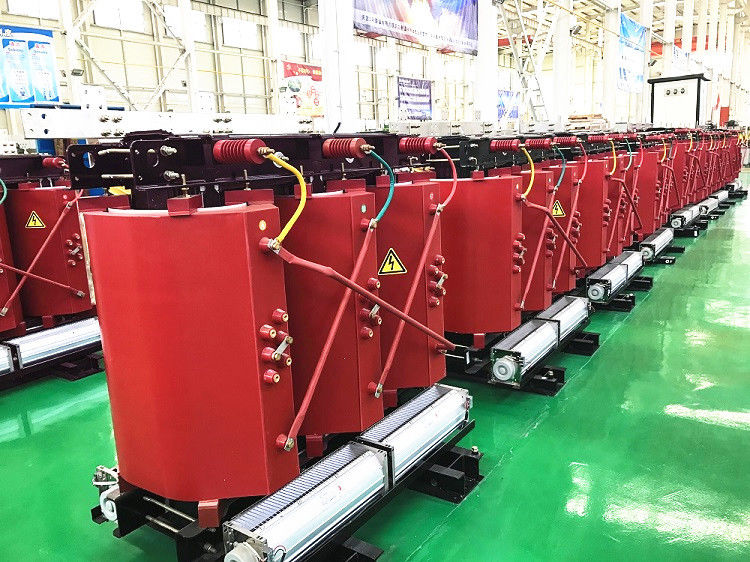

1500 Kva Dry Type Distribution Transformer Indoor Type Electric Transformer 0

Total Solution for the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation

and modular substation·Distribution network·Electricity Maintenance·Electricity investment·

Telecom tower and accessories



Quick Detail:

1500 kva dry transformer indoor type electric transformer



Brief Description of  1500 kva dry transformer indoor type electric transformer:



Simply speaking, dry type transformer refers to the transformer whose iron core and winding are not impregnated in insulation oil.

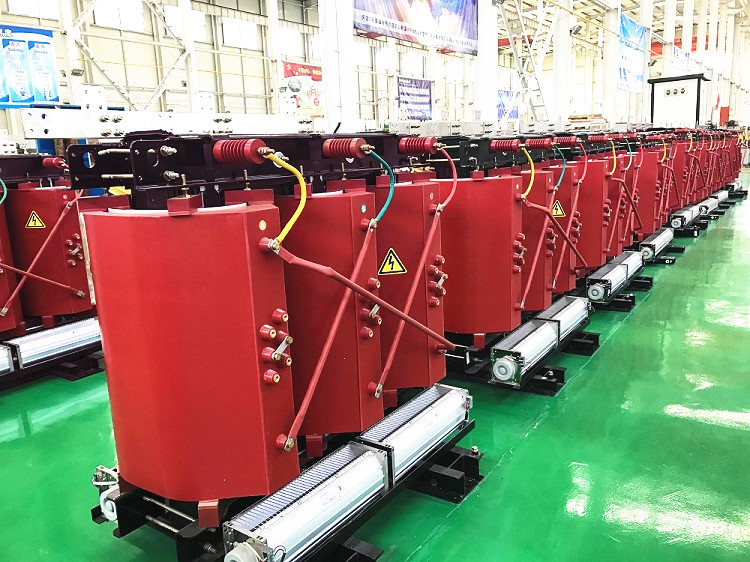

1500 Kva Dry Type Distribution Transformer Indoor Type Electric Transformer 1

Executive Standard:

GB 1094 (Electrical Transformer)
IEC 60076 (Electrical Transformer)
GB/T10228 (Specification and Technical Requirements for Dry-type Power Transformers)
JB/T10008 6kV~500kV (Power Transformer Sound Level)
GB/T7354 (Partial Discharge Measurements



Application of ZTELEC 1500 kva dry transformer indoor type electric transformer:

Dry type transformer is widely used in local lighting, high-rise buildings, airports, ports, CNC mechanical equipment and other places. We have different types of transformers, they have their own different USES.

1500 Kva Dry Type Distribution Transformer Indoor Type Electric Transformer 2



Features of ZTELEC 1500 kva dry transformer indoor type electric transformer:


Low noise, Low loss, Low temperature rise, better overload capacity, integrated intellectual interface.



1500 Kva Dry Type Distribution Transformer Indoor Type Electric Transformer 3



Motel and Parameters:



rated capacity

(KVA)

short-circuit impedance(%) SC(B)10 SC(B)11 sound level(dB) weight(Kg)
No-load loss(W) Load loss120℃(W) no-load current(%) no-load loss load loss load current
(W) 120℃(W) (%)
30 4 190 710 2.4 170 710 2.4 44 220
50 270 1000 2.4 250 1000 2.4 44 320
80 370 1380 1.8 330 1380 1.8 45 460
100 400 1570 1.8 360 1570 1.8 45 580
125 470 1850 1.6 420 1850 1.5 46 750
160 540 2130 1.6 490 2130 1.4 46 780
200 620 2530 1.4 560 2530 1.3 47 850
250 720 2760 1.4 650 2760 1.2 48 1030
315 880 3470 1.2 790 3470 1.1 48 1060
400 980 3990 1.2 880 3990 1 49 1400
500 1160 4880 1.2 1040 4880 1 49 1550
630 1340 5880 1 1210 5880 0.9 49 1820
630 6 1300 5960 1 1170 5960 0.9 50 1850
800 1520 6960 1 1370 6960 0.8 51 2150
1000 1770 8130 1 1590 8130 0.7 52 2550
1250 2090 9690 1 1880 9690 0.6 53 3020
1600 2450 11730 1 2210 11730 0.6 54 4500
2000 3050 14450 0.8 2750 14450 0.5 55 5300
2500 3600 17170 0.8 3240 17170 0.4 56 6200



Packaging



1.Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.



1500 Kva Dry Type Distribution Transformer Indoor Type Electric Transformer 4



1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

1500 Kva Dry Type Distribution Transformer Indoor Type Electric Transformer 5



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.



2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.



3. After-Sale Service



Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.



1500 Kva Dry Type Distribution Transformer Indoor Type Electric Transformer 6



Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

1500 Kva Dry Type Distribution Transformer Indoor Type Electric Transformer 7



Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.

1500 Kva Dry Type Distribution Transformer Indoor Type Electric Transformer 8



Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.
