Oil Immersed Electrical Power Transformer Three Phase Toroidal Coil Structure

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : ls International standard wood case or according to client's requests Best selling 66kv 20mva 3 phase 2 windings transformer oil price Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 20 Set/Sets per Month Best selling 66kv 20mva 3 phase 2 windings transformer oil price
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,SGS Model Number: SC,SC

Detail Information

Material: Copper Or Aluminum Type: Oil-type
Model Number:: S9-M Usage: Power
Standard: CQC,SGS,ISO,GB/T,JB/T,IEC Phase: Three
Coil Structure: Toroidal Output Voltage: 10.5KV
Packing: Wooden Box Frequency: 50/60Hz
Rated Voltage:: 66KV Product Name: S9-M OIL IMMERSED TRANSFORMER
High Light:

power distribution transformer

,

3 phase power transformer

Product Description

Oil Immersed Electrical Power Transformer Three Phase Toroidal Coil Structure

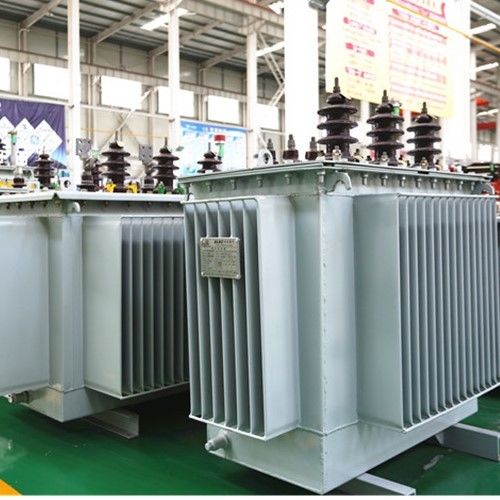

Oil Immersed Electrical Power Transformer Three Phase Toroidal Coil Structure 0

Total Solution for the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation

and modular substation·Distribution network·Electricity Maintenance·Electricity investment·
Telecom tower and accessories


Quick Detail: FACTORY S9-M OIL IMMERSED ELECTRICAL TRANSFORMER

1. Advantages:
A. The cancellation of oil conservator makes the transformer more convinient to use;
B. The replacement of oil tube into corrugated tank makes the transformer easier to cool;
C. The physical property of corrugated tank increases the reliability of the transformer;
D. The adoption of sanforizing makes sure the robustness of long distant transportation.
Applications:
A. Mentallurgy and Petrifaction;
B. Electric power system.
2. Product standards of S9-M Series Three Phrase Oil Immersed Transformer:
GB1094.1-1996 GB1094.2-1996
GBT6451-2008 GB/T7595-1987
GB1094.3-2003 GB1094.5-2003
GB/T10237-1988 JB/TT3837-1998

Plant & Equipment
All our partner's production and manufacturing procedures are under strict control, all process test and ex-work tests are computer-operated. The production material is imported, which make it qualified for manufacturing different transformers. Standarization and modernization are implemented though scientific management.

Workshop:

Oil Immersed Electrical Power Transformer Three Phase Toroidal Coil Structure 1


Packaging
1.Specific packaging can be made to order.
You can specify other shipping methods such as Airmail, FEDEX or DHL.
We shall let you know about the shipping cost after receipt of your order.
And also can send by sea or air, kindly send me the port of yours.



Oil Immersed Electrical Power Transformer Three Phase Toroidal Coil Structure 2



1. About us
HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.





Oil Immersed Electrical Power Transformer Three Phase Toroidal Coil Structure 3



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.
2. International Certificate
ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.
3. After-Sale Service
Technical Support
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.



Oil Immersed Electrical Power Transformer Three Phase Toroidal Coil Structure 4



Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

Oil Immersed Electrical Power Transformer Three Phase Toroidal Coil Structure 5



Warehouse and Emergency Supply
Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.

Oil Immersed Electrical Power Transformer Three Phase Toroidal Coil Structure 6


Design and Consultant
Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.
Package
Set-wisely packing or member-wisely packing as per client's requirements.
