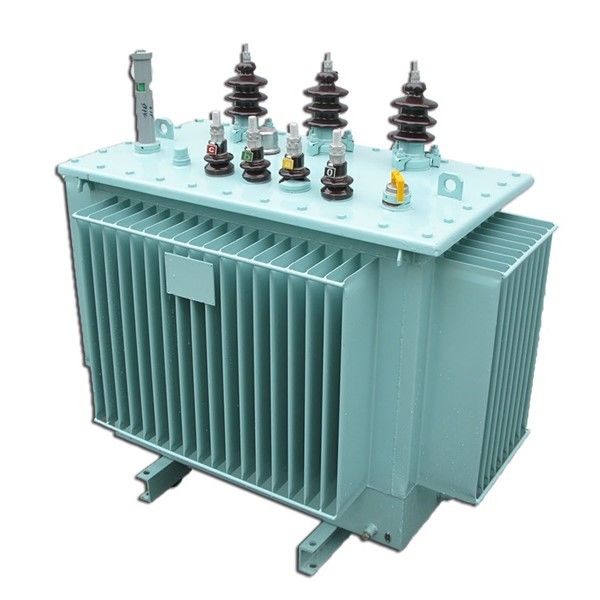

11kv Electrical Power Transformer Oil Type With Transformer Oil Level Gauge

Product Description

11kv Electrical Power Transformer Oil Type With Transformer Oil Level Gauge



Total Solution for the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation

and modular substation·Distribution network·Electricity Maintenance·Electricity investment·
Telecom tower and accessories

Quick Detail: 11KV High Voltage Distribution Transformer oil type with transformer oil level gauge

Application:

The 11KV High Voltage Distribution Transformer oil type with transformer oil level gauge applies new type insulating structure and makes short-circuit resistance strong.High-voltage winding group is made up of high-quality oxygen-free copper lines and it adopts multilayered drum type structure.All fasteners have been processed with special treatment to prevent them from loosening.

11KV High Voltage Distribution Transformer oil type with transformer oil level gauge meets standards of GB1094.1-2-1996,GB1094.3.5-1985 and GB/T6451-1999.



Model and Meaning:

Working conditions:

1. Ambient air temperature: -5°C~+40°C, the highest monthly mean temperature should not exceed +30°C;

2. Altitude for installing place should not exceed 2000m;

3. When the ambient air temperature is +40°C, the relative humidity should not exceed 50%, and it allows higher relative humidity under lower temperature. Max average humidity in the dampest month is 90%, meanwhile the lowest average temperature of this month is + 25°C, and condensation on the product surface caused by temperature change should be taken into consideration.



Main Technical Parameter:

Rated Power (KVA)	Rated Voltage (KV)		Short Circuit impedance 75°C%	Vector Group	No-load Loss (KW)	On-load Current (%)	No-load Current (%)	Weight (KG)			Outline Dimension (L×W×H,mm)
	HV	LV						Oil	Active Part	Total
10	6 6.3 10	0.4	4	Y,yn0	0.08	0.28	2.7	59	88	195	970×380×880
20					0.105	0.47	2.3	76	131	270	1030×470×1000
30					0.13	0.6	2.1	70	185	295	1025×720×1100
50					0.17	0.87	2	85	248	390	1050×730×1130
63					0.2	1.04	1.9	95	275	440	1131×740×1218
80					0.25	1.25	1.8	100	335	510	1110×790×1250
100					0.29	1.5	1.6	110	360	550	1118×840×1260
125					0.34	1.8	1.5	125	410	640	1268×860×1300
160					0.4	2.2	1.4	145	485	770	1200×850×1450
200					0.48	2.6	1.3	160	585	885	1250×880×1470
250					0.56	3.05	1.2	195	715	1080	1330×900×1500
315					0.67	3.65	1.1	215	820	1250	1420×970×1600
400					0.8	4.3	1	275	960	1465	1560×1120×1668
500					0.96	5.15	1	305	1120	1715	1600×1285×1694
