132kv Gas Insulated Circuit Breaker High Voltage Vacuum Circuit Breaker

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : sea worthy : professional packing, plastic bag, carton, pallets if clients needed. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 800 Set/Sets per Month Outdoor H.V.A.C. live tank SF6 gas 132kv circuit breaker
Place of Origin: China Brand Name: DINGLI
Certification: CCC, CE, CQC, RoHS Model Number: LW25-126/145/T

Detail Information

Power Supply: AC Poles Number: 3
Type: High Voltage Product Name: Outdoor H.V.A.C. Live Tank SF6 Gas 132kv Circuit Breaker
Rated Voltage: Rated Voltage: 132kv Rated Current: 3150A
Rated Frequency: 50/60 Hz Standard: GB10963/IEC60898
Certificate: IEC 62271-100 Color: Black&White
Creepage Distance: 25/31mm/kv Rated Short-circuit Breaking Current:: 31.5/40kA
Rated Short-circuit Making Current:: 80/100 KA
High Light:

high voltage circuit breaker

,

vacuum circuit breaker

Product Description

132kv Gas Insulated Circuit Breaker High Voltage Vacuum Circuit Breaker



Quick Detail: Outdoor H.V.A.C. live tank SF6 gas 132kv circuit breaker

1. Brief Introduction

H.V. A.C.porcelain type SF6 gas circuit breakers, with voltage from 40.5-550kV and rated current up to 4000A, manufactured by our company, are provided with

three kinds of operating mechanism, pneumatic, spring and hydraulic type.

Motor is used in spring mechanism to charge closing spring and charge opening spring at closing. Disk spring is used in hydraulic mechanism to be charged instead

of traditional compressed nitrogen gas for charge, and hydraulic driving is used at both opening and closing. Compressed air is used in pneumatic mechanism as driven

force for open while spring is used for close. The three kinds of operating mechanisms have their own features and are used in circuit breakers of different voltage

class respectively.Due to the unit structure in circuit breaker, there are advantages of minimized number of breaks,lower number of parts, simple structure,high

reliability and long period of inspection.

2. Normal Service Condition

2.1. Altitude:≤3000m

2.2. Humidity monthly:≤90%
2.3. Max .wind velocity:≤35m/s
2.4. Pollution class:Ⅲclass,IV class
2.5. Ambient air temperature:-35℃~40℃(It’s satisfied under condition of -40℃ in heavy cold area)
2.6. Max .temperature difference daily: 25K
2.7. Earthquake withstand density:8 degree
2.8. Ice coating: ≤10mm
2.9. Max. radiance from sun: 1000 W/m2

Note: When product is used under the condition out of above range, user and manufacturer shall consult to confirm.

3. The Drawing and Technical Datasheet



No. Item Unit LW25-126/145/T
1 Rated Voltage kv 132
2 Rated Frequency Hz 50/60
3 Rated Current ka 3150
4 Rated short-circuit breaking current ka 31.5/40
5 Rated short-circuit making current ka 80/100
6 Rated short-time withstand current and duration ka 31.5(4S)/40(4S)
7 Rated peak withstand current ka 80/100
8 Closing time ms 100
9 Opening time ms ≤30
10 Breaking time ms ≤60
11 Rated SF6 gas pressure (at 20°C) mpa 0.50;0.40
12 Creepage Distance cm/kv 2.5/3.1
13 Operating mechanism   Spring
14 Applied standards   IEC 62271-100

1) Three-phase Mechanism

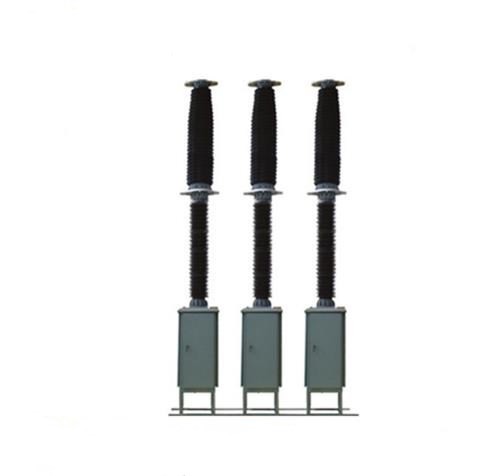

132kv Gas Insulated Circuit Breaker High Voltage Vacuum Circuit Breaker 0

132kv Gas Insulated Circuit Breaker High Voltage Vacuum Circuit Breaker 1

132kv Gas Insulated Circuit Breaker High Voltage Vacuum Circuit Breaker 2

132kv Gas Insulated Circuit Breaker High Voltage Vacuum Circuit Breaker 3

132kv Gas Insulated Circuit Breaker High Voltage Vacuum Circuit Breaker 4


Shipping:

1. Specific packaging can be made to order.
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.
The standard procedure for making wooden case is as follows:

132kv Gas Insulated Circuit Breaker High Voltage Vacuum Circuit Breaker 5
