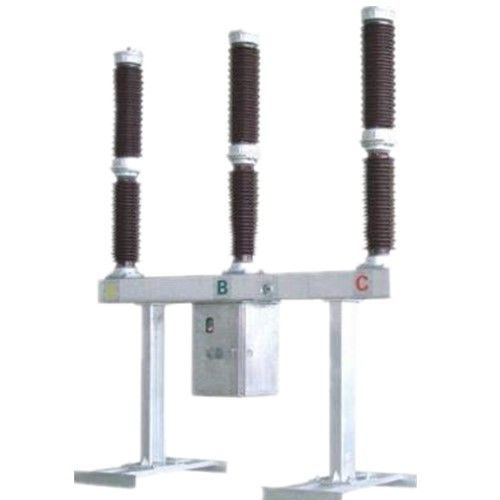

Vacuum Type Substation Circuit Breaker 3 Pole Hv Gas Live Tank 400 Kv

Quick Detail: Outdoor H.V. gas live tank 400 kv circuit breaker

1. Brief Introduction
H.V. A.C.porcelain type SF6 gas circuit breakers, with voltage from 40.5-550kV and rated current up to 4000A, manufactured by our company,

are provided with three kinds of operating mechanism, pneumatic, spring and hydraulic type.

Motor is used in spring mechanism to charge closing spring and charge opening spring at closing. Disk spring is used in hydraulic mechanism to be charged instead of traditional compressed nitrogen gas for charge, and hydraulic driving is used at both opening and closing.

Compressed air is used in pneumatic mechanism as driven force for open while spring is used for close. The three kinds of operating mechanisms have their own features and are used in circuit breakers of different voltage

class respectively.Due to the unit structure in circuit breaker, there are advantages of minimized number of breaks,lower number of parts, simple structure,high reliability and long period of inspection.

2. Normal Service Condition
2.1. Altitude:≤3000m

2.2. Humidity monthly:≤90%
2.3. Max .wind velocity:≤35m/s
2.4. Pollution class:Ⅲclass,IV class
2.5. Ambient air temperature:-35℃~40℃(It’s satisfied under condition of -40℃ in heavy cold area)
2.6. Max .temperature difference daily: 25K
2.7. Earthquake withstand density:8 degree
2.8. Ice coating: ≤10mm
2.9. Max. radiance from sun: 1000 W/m2
Note:  When product is used under the condition out of above range, user and manufacturer shall consult to confirm.

No. Item Unit LW25-420/Y
1 Rated Voltage kv 420
2 Rated Frequency Hz 50/60
3 Rated Current ka 4000
4 Rated short-circuit breaking current ka 50
5 Rated short-circuit making current ka 80/100
6 Rated short-time withstand current and duration ka 50(4S)
7 Rated peak withstand current ka 125
8 Closing time ms 65-95
9 Opening time ms 18~30
10 Breaking time ms ≤50
11 Rated SF6 gas pressure (at 20°C) mpa 0.50;0.40
12 Creepage Distance cm/kv 2.5/3.1
13 Operating mechanism   Hydraulic
14 Applied standards   IEC 62271-100

3. The Drawing and Technical Datasheet
1) Three-phase Mechanism

Vacuum Type Substation Circuit Breaker 3 Pole Hv Gas Live Tank 400 Kv 0

Vacuum Type Substation Circuit Breaker 3 Pole Hv Gas Live Tank 400 Kv 1
