Electrical Indoor Vacuum Circuit Breaker 40.5kv Three Phase Alternating Current

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Sea worthy : professional packing, plastic bag, carton, pallets if clients needed. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 200 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: CCC, CE, CQC, RoHS

Detail Information

Model Number: ZN85-40.5 Product Name: Vacuum Circuit Breaker
Type: Vacuum Circuit Breaker Material: Stainless Steel Or Hot-dip Galvanized Steel.
Ambient Temperature: -40°C-+40°C
High Light:

hv circuit breaker

,

vacuum circuit breaker

Product Description

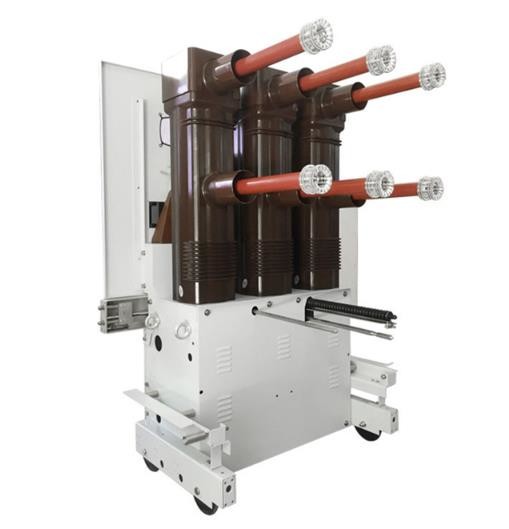

Electrical Indoor Vacuum Circuit Breaker 40.5kv Three Phase Alternating Current



Quick Detail: 40.5KV High Voltage Indoor Vacuum Circuit Breaker For Electrical



Product Description:

ZN85 axiliary handcart designed and produced by us has a screw rod drive mechanism and can be moved easily and avoid damage of the drive mechanism due to misoperation. It applies to the 50Hz and 40.5kV three-phase alternating-current single-bus segmented power systems in KYN61-40.5 armored mobile metllic metal-enclosed switchgears. Used with different primary components, it can realize bus connection, electric energy measurement, and overload protection or short-circuit protection for power equipment and, during system overhauls, functional component and interlocking.





Overall and Installation dimension

Overall dimension of ZN85-40.5 isolating handcart(cabinet width: 1400mm)

Electrical Indoor Vacuum Circuit Breaker 40.5kv Three Phase Alternating Current 0

Electrical Indoor Vacuum Circuit Breaker 40.5kv Three Phase Alternating Current 1

Technical Parameter

1.1 Technical parameters

Item Unit Reference value
Rated voltage kV 40.5
Rated insulation level Lightning impulse withstand voltage kV 185
1min power-frequency withstand voltage kV 95
Rated frequency Hz 50/60



1.2 Drawing of linkage between the moving contact and the fixed contact

Electrical Indoor Vacuum Circuit Breaker 40.5kv Three Phase Alternating Current 2



Standard

1. GB/T 11022-2011 Common specifications for high-voltage switchgear and controlgear standards

2. IEC 62271-2007 High-voltage switchgear and controlgear - Part 1: Common specifications



Operating conditions

1. Ambient temperature: - 40℃-+40℃ (below 35℃ within 24 hours)

2. Relative humidity:≤95% (daily average) or≤90% (monthly average)

3. Altitude: ≤1000m
