High Voltage Substation Circuit Breaker 12KV 3 Phase Stainless Steel Material

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Sea worthy : professional packing, plastic bag, carton, pallets if clients needed. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: CCC, CE, CQC, RoHS

Detail Information

Model Number: ZW10-12 Product Name: Vacuum Circuit Breaker
Type: Circuit Breaker Material: Stainless Steel
Ambient Temperature: -40°C-+45°C
High Light:

high voltage circuit breaker

,

vacuum circuit breaker

Product Description

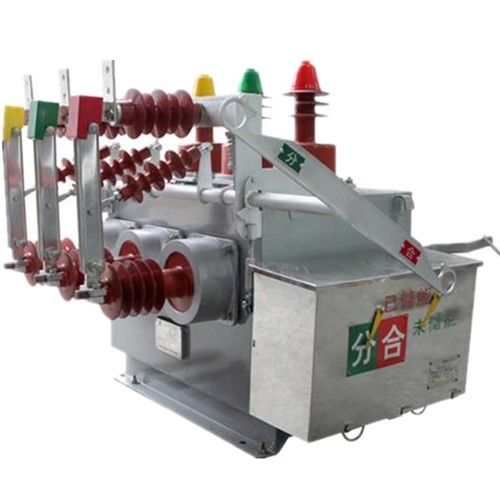

High Voltage Substation Circuit Breaker 12KV 3 Phase Stainless Steel Material

Quick Detail: High Voltage 12KV 3 Phase AC Intelligent Circuit Breaker For Substations


ZW10-12, ZW12-12, ZW27-12 model outdoor AC vacuum circuit breaker is a three phase outdoor high voltage AC switch device. It mainly used to make and break load current, overload current and short-circuit current in12kV, 630A, 50/60Hz power system. It is applicable for substations, industry and mining, urban and rural electricity power networks, especially for occasions with frequent operation and automatic power distribution network. The product is especially applicable yo overhead network, opening and closing of load current, overload current and short circuit current and switching and protection of power grids. It accords with the standards of IEC62271-100 & GB1984: AC high voltage circuit breaker, IEC60694 & GB/1984: HV General technical requirement of switch and control apparatus.

High Voltage Substation Circuit Breaker 12KV 3 Phase Stainless Steel Material 1

  • 1. Case
  • 2. Nameplate
  • 3. Operation mechanism
  • 4. Wiring terminal
  • 5. Insulated conducing rod
  • 6. Current transformer
  • 7. ON and OFF indicator
  • 8. Energy indicator
  • 9. Insulating sheath
  • 10. Wiring terminal
  • 11. Back cover
  • 12. Manual energy storing plate
  • 13. Nameplate of operation mechanism
  • 14. Manual closing ring
  • 15. Manual closing ring
  • 16. Earthing bolt

High Voltage Substation Circuit Breaker 12KV 3 Phase Stainless Steel Material 2

Technical Parameter

Name Unit Data
Rated voltage kV 12
Rated current A 630
1min P.F withstand voltage kV 42/48
Lightning impulse withstand voltage peak kV 75/85
Rated short-circuit breaking current kA 16/20/25
Rated short-circuit making current (peak) kA 40/50/63
Rated short-time withstand current kA 16/20/25
Rated withstand current (peak) kA 40/50/63
Rated short-circuit breaking time times 30
Mechanical life times 10000

Ambient condition:

1. Altitude: ≤ 2000m

2. Ambient temperature: -40°C~+45°C

3.The wind speed does not exceed 34m / s

4. Relative humidity: monthly average 90%, daily average 95%;

5. Earthquake intensity: < 8 degree;

6. Ambient pllution: IV;

7. Ice thickNess: 10mm;

8. Applicable occasions should be free from inflammables, explosives,corrosives and severe vibrations.
