13.8kv 480v Transformer Oil Immersed 500 Kva With Tank Expansion

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Sea worthy : professional packing, plastic bag, carton, pallets if clients needed. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: CCC, CE, CQC, RoHS Model Number: S10-11

Detail Information

Model Number: S10-11 Product Name: Oil Immersed With Tank Expansion 13.8kv 480v Transformer 500
Phase: 3 Coil Structure: TOROIDAL
Coil Number: 2 Winding Type: Power Transformer
Rated Power: 13.8 Kv Frequency: 50/60Hz
Rated Voltage: 40.5KV Rated Current: 630A
Rated Frequency: 50Hz/60Hz Rated Short-circuit Breaking Current: 20/25/31.5/40KA
Rated Short-circuit: 4S Output Voltage: 0.4 Kv
Connection Symbol: Dyn11 Yyn0
High Light:

13.8kv 480v Transformer Oil Immersed

,

500 Kva 480v Transformer Oil Immersed

,

13.8kv 480v oil immersed transformer

Product Description

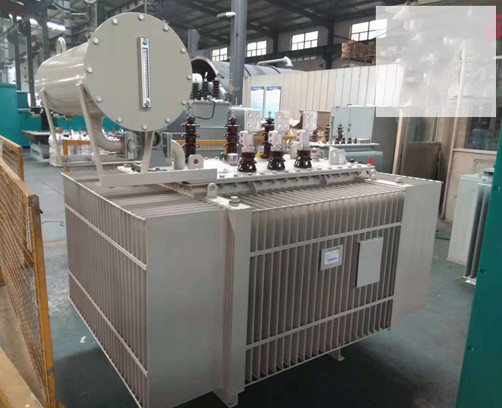

Oil immersed with tank expansion 13.8kv 480v transformer 500 kva



Quick Detail:

Main Function And Features

The performances of model S9-M, S10-M, S11-M, S11-MR 10 kV series full-sealed oil-immersed distribution

transformers conform to standards IEC60076 "Power Transformer" and ISO9001:2008 "Technical Parameters

and Requirements of Three-phase Oil-immersed Power Transformer". Its core is made of quality cold-rolled silicon

sheet and has a full-miter non-puncture structure and its coil is made of quality oxygen-free copper. It is widely

used in transmission and distribution of industrial and agricultural networks.



It is composed by a radiator oil tank of corrugated sheet type or expansion type. As it doesn't need oil conservator,

the height of transformer is reduced, and as the transformer oil doesn't have any contact with air, the oil ageing is

retarded, thus prolonging the service life of the transformer. The no-load loss of Model S10-M is 20% lower than

that of Model S9-M, and S11-M is 30% lower than S9-M. The transformers are high in reliability, advanced in

performances and rational in economical indexes. There are diverse oil tank types to make the appearance elegant.



We have always been focussing on our users, not only ensuring the product quality, but also building an after-sale

service.On the basis of training a team of high-quality service personnel, we applied a set of complete quality

traceability system on the after-sale products by keeping a close contact with our customers, providing them with

standardized and professional service, helping them removing the trouble back at home.




Product Description

Main Technical Parameters for 10KV level S9-M,S10-M,S11- M Series three-phase full-sealed non-excitaiton-tap-changing distribbution transformer
Rated
Power
(kva)
High
Voltage
(kv)
H.V.Tap
range
Low
Voltage
(kv)
Connection
symbol
Short
Circuit
Impendence
(%)
No-load loss(W) On-load loss(W) No load
current
(%)
S9 S10 S11 S9 S10 S11
30

6
6.3
10
10.5
11

13

±5%
±2x2.5%
0.4 Dyn11
Yyn0
4 130 110 100 600 600 600 2.1
50 170 150 130 870 870 870 2
63 200 180 150 1040 1040 1040 1.9
80 250 200 180 1250 1250 1250 1.8
100 290 230 200 1500 1500 1500 1.6
125 340 270 240 1800 1800 1800 1.5
160 400 310 280 2200 2200 2200 1.4
200 480 380 340 2600 2600 2600 1.2
250 560 460 400 3050 3050 3050 1.2
315 670 540 480 3650 3650 3650 1.1
400 800 650 570 4300 4300 4300 1
500 960 780 680 5150 5150 5150 1
630 4.5 1200 920 810 6200 6200 6200 0.9
800 1400 1120 980 7500 7500 7500 0.8
1000 1700 1320 1150 10300 10300 10300 0.7
1250 1950 1560 1360 12000 12000 12000 0.6
1600 2400 1880 1640 14500 14500 14500 0.6
2000 5 2830 2270 1940 17140 17140 17140 0.6
2500 3350 2690 2300 20260 20260 20260 0.5



Service Environment

13.8kv 480v Transformer Oil Immersed 500 Kva With Tank Expansion 1

Workshop:

13.8kv 480v Transformer Oil Immersed 500 Kva With Tank Expansion 2


Shipping:

1. Packing

Our packing experts will work with you and your product’s specifications, and provide solutions for packaging

options to ensure safe transport and delivery.

Packaging:Wooden case, container or according to client's requirements

Shipping:Land transportation and Ocean transportation



The standard procedure for making wooden case is as follows:

♦ Receipt of information required for the type of goods to be wood barrel customers.

♦ Measure and create original designs for customers.

♦ Select the type of wood suitable for the requirements of the goods.

♦ Determine the delivery time.

♦ Check the wood barrel technique.

♦ Handover confirmation.

13.8kv 480v Transformer Oil Immersed 500 Kva With Tank Expansion 3

13.8kv 480v Transformer Oil Immersed 500 Kva With Tank Expansion 4
Technical Support
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100

engineers. We have special pre-sales engineer to work with customer at early stage of the project.


13.8kv 480v Transformer Oil Immersed 500 Kva With Tank Expansion 5

Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru,

Ecuador, Senegal, which will make a fast response for customer.

13.8kv 480v Transformer Oil Immersed 500 Kva With Tank Expansion 6



Customer Visit
Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and found

ways to solve it together. They set a high value on this cooperation.

13.8kv 480v Transformer Oil Immersed 500 Kva With Tank Expansion 7

13.8kv 480v Transformer Oil Immersed 500 Kva With Tank Expansion 8

13.8kv 480v Transformer Oil Immersed 500 Kva With Tank Expansion 9
