Outdoor Substation Type SF6 Gas Circuit Breaker With High Breaking Capacity

Contact Now

Outdoor Substation Type SF6 Gas Circuit Breaker With High Breaking Capacity

Name: Outdoor Substation Type SF6 Gas Circuit Breaker With High Breaking Capacity
Brand: DINGLI
SKU: DINGLI
Price: 1.00 USD
Availability: InStock
Rating: 5 (111 reviews)

Minimum Order Quantity :	10 set or Negotiation	Price :	Negotiation
Packaging Details :	Sea worthy : professional packing, plastic bag, carton, pallets if clients needed.	Delivery Time :	Depends on the quality of client
Payment Terms :	30% advanced payment , 70% balance payment before shipment.	Supply Ability :	2000 Set/Sets per Month

Place of Origin:	China	Brand Name:	DINGLI
Certification:	CCC, CE, CQC, RoHS

Detail Information
Model Number:	GCB	Product Name:	Outdoor SF6 Circuit Breaker
Phase:	3	Rated Voltage:	12/24/36/40.5kV
Coil Number:	2 Winding	Rated Current:	1250A/2500A
Frequency:	50/60Hz	Breaking Capacity:	25/31.5kA
Feature:	Big Breaking Capacity, Long Life, SF6 Insulated, Outdoor
High Light:	Substation Type SF6 Gas Circuit Breaker , Outdoor SF6 Gas Circuit Breaker , SF6 gas insulated circuit breaker

Product Description

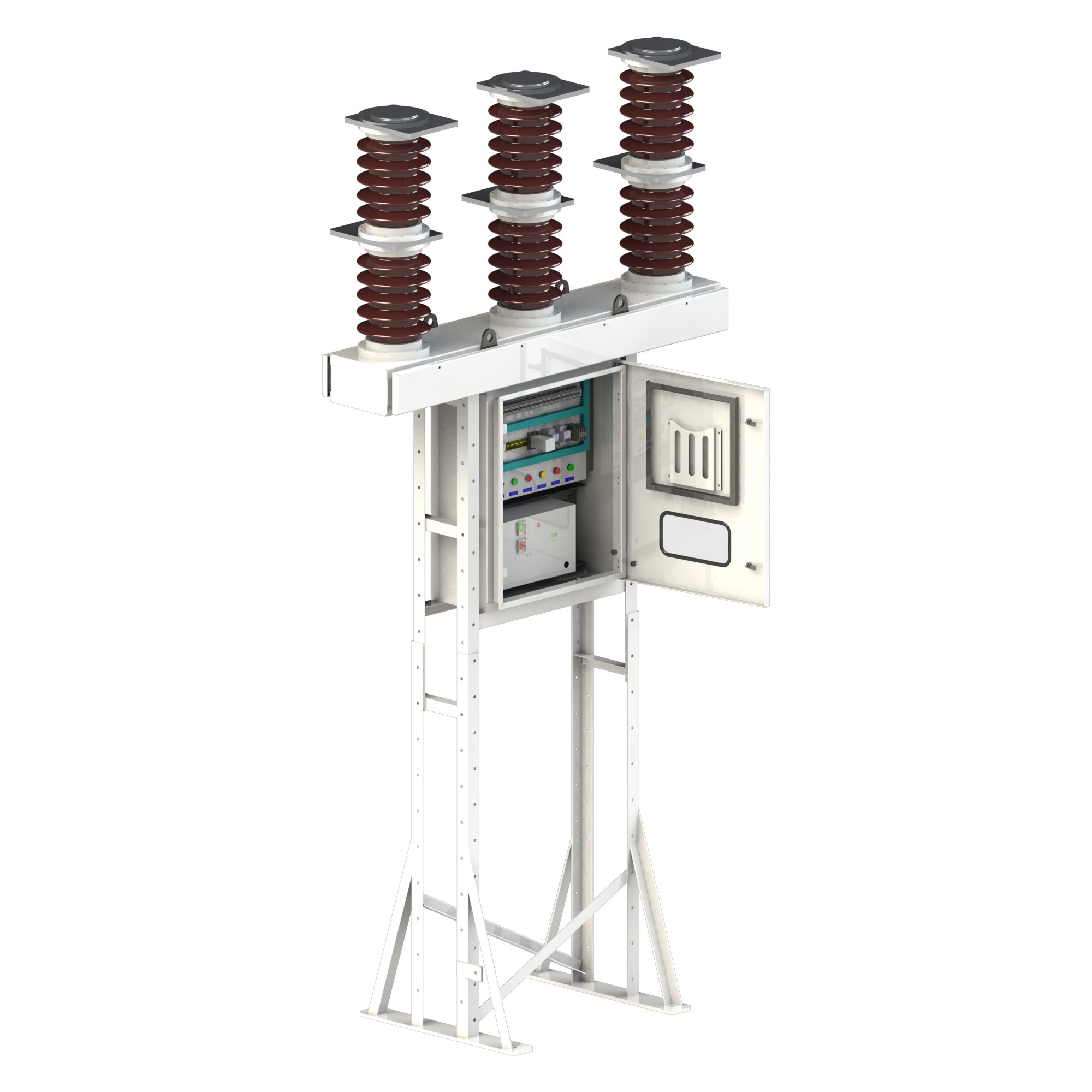

Outdoor Substation Type SF6 Gas Circuit Breaker With High Breaking Capacity

Quick Detail:

General

ROCKWILL Electric strives to bring our customers the latest technology and competitive pricing and best service

for distribution automatic GCB medium voltage circuit-breakers for outdoor installation use sulphur hexafluoride

gas (SF6) to extinguish the electric arc and as the insulating medium. Breaking in SF6 gas takes place without

current chopping or generation of overvoltages. These characteristics guarantee a long electrical life for the

circuit-breaker and limited dynamic di-electric and thermal stresses on the installation.

The GHS type of stored energy and free release mechanical operating mechanism allows opening and closing

operations through local and remote control. The operating mechanism, the activating kinematics of the moving

contacts and the anti-condensation heater are located inside a tight metal enclosure which also acts as the support

for the poles. The above-mentioned structure is supported by a frame made of telescopic metal sections which

allow the height of the circuit-breaker terminal to be adapted from 2800 mm to 3700 mm.

The metal enclosure has IP 54(*) degree of protection and is fitted with a tight door with an inspection window.

The circuit-breaker is compact and ensures a high level of sturdiness and excellent mechanical reliability.

The enclosure is made out of a steel plate with adequate surface protection by a special metalising and painting

process. The support structures are hot dip galvanised.

Main Contact Separation
No electric arc is struck because the current flows through the arcing contacts. During its run downwards, the moving

apparatus compresses the gas in the lower chamber. The compressed gas flows from the lower to the upper chamber.

hereby taking both the chambers to the same pressure.

Arcing Contact Separation
The current flows due to the electric arc which has struck between the arcing contacts. The gas cannot escape through

the nozzle because the hole is still closed by the fixed arcing contact and cannot even escape through the inside of the

arcing contact, because of the clogging effect of the electric arc.

No.	Item	Unit	Data
1	Model		GCB-12/24		GCB-36		GCB-40
2	Standards		IEC 62271-100
3	Rated voltage	kV	12/24		36		40.5
4	Rated Frequency	Hz	50-60		50-60		50-60
5	Rated Normal Current	A	1250	2500	1250	2500	1250	2500
6	Rated Breaking Capacity	kA	25/31.5	25/31.5	25/31.5	25/31.5	25/31.5	25/31.5
7	Rated Short Time Withstand Current(3s)	kA	25/31.5	25/31.5	25/31.5	25/31.5	25/31.5	25/31.5
8	Making Capacity	kA	63/80	63/80	63/80	63/80	63/80	63/80
9	Operation Sequence		O-0.3S-CO-15s-CO
10	Opening Time	ms	45+10		45+10		45+10
11	Arcing Time	ms	10-15		10-15		10-15
12	Total Breaking Time	ms	55-60		55-60		55-60
13	Closing Time	ms	75+10		75+10		75+10
14	SF6 Gas Absolute Pressure	kPa	380		380		550
15	Tropicalisation		IEC: 60068-2-30, 721-2-1
16	Electromagnetic Compatibility		IEC: 60694, 61000-6-2, 61000-6-4

Standards And Service

The GCB circuit-breakers comply with the IEC 62271- 100 standard as well as of other major industrialised

countries. They have undergone the tests indicated ensure service safety and reliability of the apparatus in alll

installationsThe mechanical and electrical locking devices have been provided to prevent incorrect operations

and to carry out nspection of the installations while guaranteeing maximum operator safety.

Service Environment

Workshop:

Shipping:

1. Packing

Our packing experts will work with you and your product’s specifications, and provide solutions for packaging

options to ensure safe transport and delivery.

Packaging:Wooden case, container or according to client's requirements

Shipping:Land transportation and Ocean transportation

The standard procedure for making wooden case is as follows:

♦ Receipt of information required for the type of goods to be wood barrel customers.

♦ Measure and create original designs for customers.

♦ Select the type of wood suitable for the requirements of the goods.

♦ Determine the delivery time.

♦ Check the wood barrel technique.

♦ Handover confirmation.

Outdoor Substation Type SF6 Gas Circuit Breaker With High Breaking Capacity 3

Technical Support
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100

engineers. We have special pre-sales engineer to work with customer at early stage of the project.

Outdoor Substation Type SF6 Gas Circuit Breaker With High Breaking Capacity 4

Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru,

Ecuador, Senegal, which will make a fast response for customer.

Outdoor Substation Type SF6 Gas Circuit Breaker With High Breaking Capacity 5

Outdoor Substation Type SF6 Gas Circuit Breaker With High Breaking Capacity 6

Outdoor Substation Type SF6 Gas Circuit Breaker With High Breaking Capacity 7
