ZW32 VCB HV Outdoor Intelligent Reclosing Vacuum Circuit Breaker Remote Control

Minimum Order Quantity : 10 set or Negotiation Price : Negotiation
Packaging Details : Sea worthy : professional packing, plastic bag, carton, pallets if clients needed. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: CCC, CE, CQC, RoHS Model Number: ZW32-12F

Detail Information

Model Number: ZW32-12F Product Name: Outdoor Voltage Circuit Breaker
Material:: Stainless Steel Or Hot-dip Galvanized Steel. Altitude: ≤2000m
Ambient Tempretureperatu: -40°C-+45°C Wind Speed: 34m/s
Earthquake Intensity: ≤ 8 Degre Ice ThickNess: 10mm
High Light:

ZW32 VCB Vacuum Circuit Breaker

,

ZW32 HV Vacuum Circuit Breaker

,

ZW32 outdoor vacuum circuit breaker

Product Description

ZW32 VCB HV Outdoor Intelligent Reclosing Remote Control Vacuum Circuit Breaker Switch





Quick Detail:

Product Description

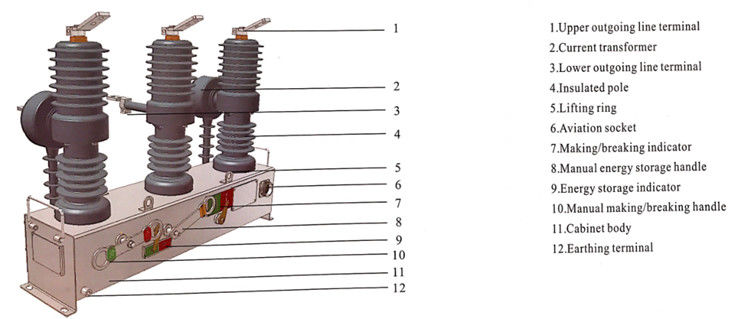

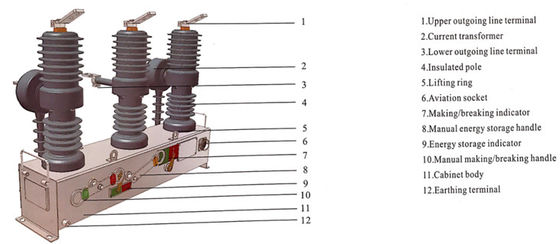

Product structure description:

1.ZW32-40.5 mainly consist of intergret solid-seal pole,current transformer,electrical

mechanism and box.The model is designed in small shape.At same time equip with

manual breakingan closing brake device.Current is transformer is choosed by the

requirement of custom.

2.Intelligent control unit provide with the ability of long-distance controling through

communication port,operated by remote controller(cable,optical fiber,GPRS/CDMA,

GCM.etc are selected for communication passage)

3.Intelligent control unit intalled adjacent to breaker.Through control cable to connect

with breaker.Electric source of intelligent control include main electric source and backup

source.Main electric is AC or DC 220V,is acquired by high voltage line through PT.Backup

source is supplied by storage battery(installed in intelligent control unit box).When proper

functioning,main electric source supply electric to backup source(fully charged) is able to

bear machine to work for not less 48 hours

4.There are urgent breaking brake handgrip set in breaker operation mechanism for urgent

breaking operation when control system or electric source happen.

ZW32 VCB HV Outdoor Intelligent Reclosing Vacuum Circuit Breaker Remote Control 0

Technical Parameter

Product parameters:

Rated voltage kV 12 24 40.5
Rated frequency Hz 50 50 50
Rated current A 630 630 630
Rated short circuit breaking current kA 20 20 20
Rated peak withstand current (peak) kA 50 50 50
Rated short-time withstand current kA 20 20 20
Rated short-circuit making current (peak) kA 50 50 50
Mechanical endurance Ops 10000 10000 10000
Rated short circuit breaks number Ops 30 30 30

Power frequency withstand voltage (1min) (wet)(dry)

phase to phase/isolating distance

kV 42/48 65/79 85/95

Lighting impulse withstand voltage (peak) (wet)(dry)

phase to phase/isolating distance

kV 75/85 125/145 185

Power frequency withstand voltage of

secondary circuit (1min)

kV 2 2 2

ZW32 VCB HV Outdoor Intelligent Reclosing Vacuum Circuit Breaker Remote Control 1

ZW32 VCB HV Outdoor Intelligent Reclosing Vacuum Circuit Breaker Remote Control 2



For more product

ZW32 VCB HV Outdoor Intelligent Reclosing Vacuum Circuit Breaker Remote Control 3

Service Environment

ZW32 VCB HV Outdoor Intelligent Reclosing Vacuum Circuit Breaker Remote Control 4

Workshop:

ZW32 VCB HV Outdoor Intelligent Reclosing Vacuum Circuit Breaker Remote Control 5

Shipping:

1. Packing

Our packing experts will work with you and your product’s specifications, and provide solutions for packaging

options to ensure safe transport and delivery.

Packaging:Wooden case, container or according to client's requirements

Shipping:Land transportation and Ocean transportation



The standard procedure for making wooden case is as follows:

♦ Receipt of information required for the type of goods to be wood barrel customers.

♦ Measure and create original designs for customers.

♦ Select the type of wood suitable for the requirements of the goods.

♦ Determine the delivery time.

♦ Check the wood barrel technique.

♦ Handover confirmation.

ZW32 VCB HV Outdoor Intelligent Reclosing Vacuum Circuit Breaker Remote Control 6


Technical Support
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100

engineers. We have special pre-sales engineer to work with customer at early stage of the project.


ZW32 VCB HV Outdoor Intelligent Reclosing Vacuum Circuit Breaker Remote Control 7

Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru,

Ecuador, Senegal, which will make a fast response for customer.



ZW32 VCB HV Outdoor Intelligent Reclosing Vacuum Circuit Breaker Remote Control 8

ZW32 VCB HV Outdoor Intelligent Reclosing Vacuum Circuit Breaker Remote Control 9
