Three Phase Power Distribution Transformer 15kva 100kva 200kva 250 Kva 315kva

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : ls International standard wood case or according to client's requests Best selling 66kv 20mva 3 phase 2 windings transformer oil price Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 600 Set/Sets per Month S11series 125kva/35kv/400v oil filled immersed transformer
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001 Model Number: S11-M-250/20

Detail Information

Place Of Origin: China Usage: Power
Phase: Three Coil Structure: TOROIDAL
Coil Number: AUTOTRANSFORMER Material: Copper
Type: Oil-filled Transformer Frequency: 50Hz/60Hz
Cooling Method: Oil Cooling Color: Grey
Rated Capacity: 30-3000kva Primary Voltage: 6kv 11kv 22kv 33kv
High Light:

Three Phase Power Distribution Transformer

,

Power Distribution Transformer 15kva

,

Power Distribution Transformer 100kva

Product Description

Three Phase 15kva 100kva 200kva 250 Kva 315kva Power Distribution Transformer


Quick Details

Product Features

1. The product has the advantages of small loss, low noise and high efficiency, which can achieve good energy saving effect and reduce pollution.
2. The fully sealed transformer eliminates the need for oil storage tank. The change of oil quantity is automatically adjusted and compensated by the elasticity of the corrugated board of the corrugated tank.
3. The transformer is isolated from the air to prevent and slow down the deterioration of oil and insulation aging.

Product Show

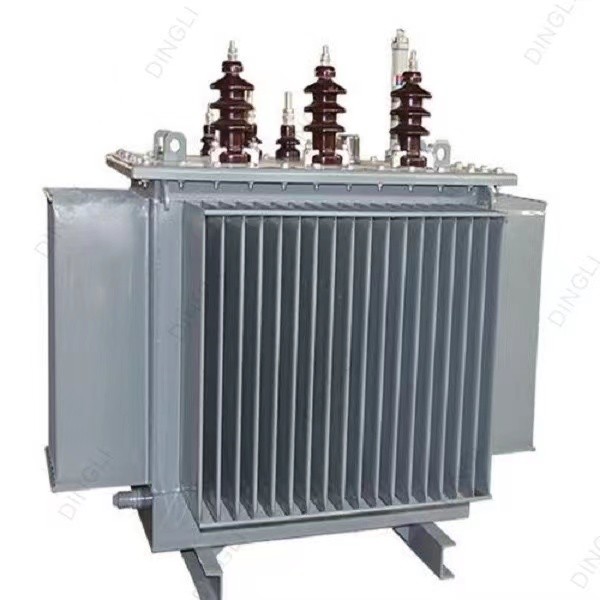

Three Phase Power Distribution Transformer 15kva 100kva 200kva 250 Kva 315kva 0

Product parameter list

S11 - M-30~2000 / 10 series fully sealed distribution transformer
Rated Capacity KVA Voltage Combination(KV) Connection symbol No-bad Loss (W) On-load Los s (W)
(75℃)
Short circuit
impendence

(%)
No load current
(%)
Weight(KG) Dimesions(mm) Track Gauge(mm)
High Voltage Tapping Range Low Voltage (KV) Body Oil Total L ×W× H
30 6
6.3
10
20
30
士5
士2×2.5
0.4 Yyn0/ Dyn11 90 600 4.0 2.1 165 70 300 800×660×940 400×400
50 120 870 2 230 80 400 830×690×990 400×400
63 140 1040 1.9 270 90 450 860×690×1020 400×400
80 170 1250 1.8 320 105 520 900×720×1060 550×550
100 200 1500 1.6 365 115 600 940×740×1080 550×550
125 235 1800 1.5 420 125 700 1220×770×1100 550×550
160 280 2200 1.4 sos 140 820 1240×780×1170 550×550
200 335 2600 1.3 605 170 980 1390×800×1200 550×550
250 390 3050 1.2 700 190 1150 1410×820×1230 550×550
315 465 3650 1.1 810 220 1300 1500×860×1270 660×660
400 560 4300 1.0 950 240 1525 1520×870×1320 660×660
500 670 5100 1.0 1130 270 1780 1600×890×1410 660×660
630 840 6200 4.5 0.9 1360 320 2050 1660×950×1460 820×820
800 980 7500 0.8 1660 490 2800 1760×970×1500 820×820
1000 1190 10300 0.7 1720 570 3030 1800×1090×1620 820×820
1250 1360 12000 0.6 2060 650 3535 1870×1100×1700 820×820
1600 1640 14500 0.6 2340 750 4350 1980×1180×1800 1070×1070
2000 1980 18500 5.5 0.5 2830 950 5040 2090×1280×1930 1070×1070



The production process

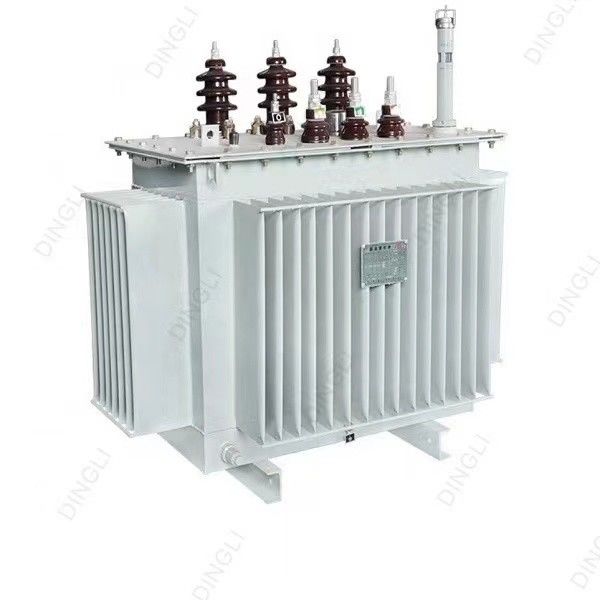

Three Phase Power Distribution Transformer 15kva 100kva 200kva 250 Kva 315kva 1

Technology & Detail

Oil level indicator
Surface spraying process of seamless steel pipe;
High-precision liquid level glass tube display meter;
Accurate measurement;durable
Three Phase Power Distribution Transformer 15kva 100kva 200kva 250 Kva 315kva 2

Wiring palm
The fuselage height and the fastening part of the low-pressure lead are equipped with self-locking locknut.

Three Phase Power Distribution Transformer 15kva 100kva 200kva 250 Kva 315kva 3

Gas relay
More sensitive sensing of changes in the internal gas of the transformer to protect the transformer.

Three Phase Power Distribution Transformer 15kva 100kva 200kva 250 Kva 315kva 4

Oil drain valve
Quick oil drain, reducing maintenance time;
Convenient maintenance
Three Phase Power Distribution Transformer 15kva 100kva 200kva 250 Kva 315kva 5


Packaging
1.Specific packaging can be made to order.
You can specify other shipping methods such as Airmail, FEDEX or DHL.
We shall let you know about the shipping cost after receipt of your order.
And also can send by sea or air, kindly send me the port of yours.



Three Phase Power Distribution Transformer 15kva 100kva 200kva 250 Kva 315kva 6



1. About us
HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.



Three Phase Power Distribution Transformer 15kva 100kva 200kva 250 Kva 315kva 7



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.

2. International Certificate
ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

3. After-Sale Service

Technical Support
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.



Three Phase Power Distribution Transformer 15kva 100kva 200kva 250 Kva 315kva 8



Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

Three Phase Power Distribution Transformer 15kva 100kva 200kva 250 Kva 315kva 9



Warehouse and Emergency Supply
Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.



Three Phase Power Distribution Transformer 15kva 100kva 200kva 250 Kva 315kva 10



Design and Consultant
Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.

Package
Set-wisely packing or member-wisely packing as per client's requirements.





 Global-network map

China

Henan DINGLI Pole and Tower Co., ltd.

Henan Zhongdingxin Detection Technology Co.,ltd.

Henan Dadi Electricity Engineering Co.,ltd.

Henan DINGLI Power Equipment Co.,ltd

Henan DINGLI Power Construction Co., ltd

Huading Concrete Pole Co., Ltd

Xingjiang Huili Steel Tower Co., Ltd.

Bazhou Dingli Tower Co., Ltd.

Shanghai Sales and Service Center

Beijing Sales and Service Center



Cambodia

Cambodia Phnom Penh Factory



Spain

Madrid (Spain) Sales and Service Center



Dakar, Senegal



Senegal (Dakar) Sales and Service Center

Senegal (Dakar) Spare Part Warehouse



Quito, Ecuador



Quito (Ecuador) Steel Tower Design Center (ASTM Standard)

Quito (Ecuador) Steel Tower Emergency Production Line

Quito (Ecuador) Raw Material and Spare Part Warehouse



Lima, Peru

Lima (Peru) Sales and Service Center



Cochabamba, Bolivia

Cochabamba (Bolivia) Raw Material and Spare Part Warehouse



Santiago, Chile

Santiago (Chile) Sales and Service Center



Jakarta, Indonesia

Jakarta (Indonesia) Sales and Service Center




Three Phase Power Distribution Transformer 15kva 100kva 200kva 250 Kva 315kva 11




Customer Visit
Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and found ways to solve it together. They set a high value on this cooperation.


Customers and Partners of Dingli



Three Phase Power Distribution Transformer 15kva 100kva 200kva 250 Kva 315kva 12
