Outdoor 36kV GCB SF6 Gas Circuit Breaker Substation Type With Long Service Life

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Sea worthy : professional packing, plastic bag, carton, pallets if clients needed. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 1000 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: IEC62271-100 Model Number: ZN63(VS1)

Detail Information

Type: High Voltage, Outdoor Poles Number: 3
Rated Voltage: 12/24/36/40.5kV, 12/24/36/40.5kV Product Keywords: Outdoor SF6 Circuit Breaker
Standard: IEC62271-100 Rated Current: 1250A/2500A
Rated Frequency: 50/60Hz Breaking Capacity: 25/31.5kA
Feature: Big Breaking Capacity, Long Life, SF6 Insulated, Outdoor Package: Wooden Case
High Light:

GCB SF6 Gas Circuit Breaker Substation

,

36kV SF6 Gas Circuit Breaker Substation

,

GCB sf6 circuit breaker in substation

Product Description

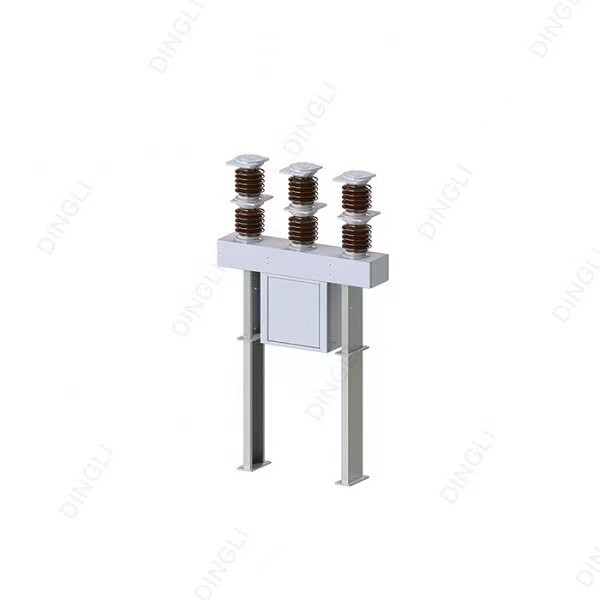

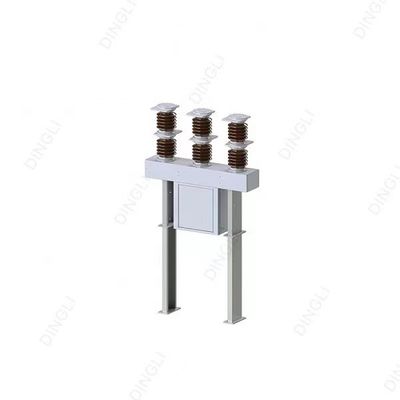

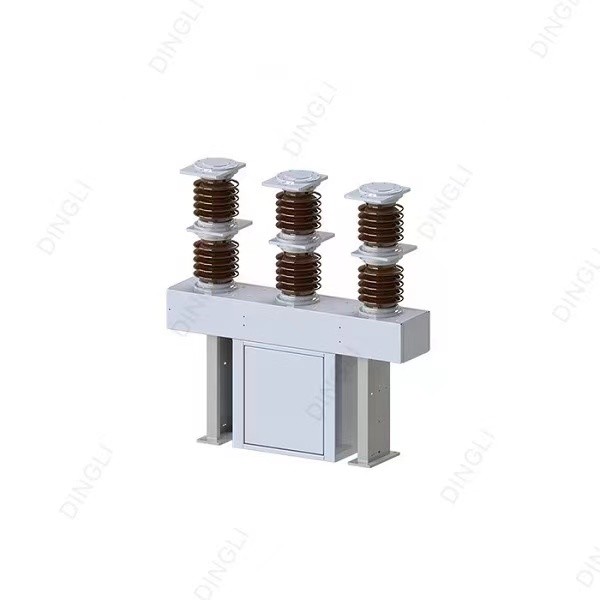

Outdoor 36kV GCB SF6 Gas Circuit Breaker Substation Type With Long Service Life



Quick Detail: Indoor high voltage vacuum circuit breaker

DINGLI strives to bring our customers the latest technology and competitive pricing and best service for distribution

automatic GCB medium voltage circuit-breakers for outdoor installation use sulphur hexafluoride gas (SF6) to extinguish

the electric arc and as the insulating medium. Breaking in SF6 gas takes place without current chopping or generation

of overvoltages. These characteristics guarantee a long electrical life for the circuit-breaker and limited dynamic di-electric

and thermal stresses on the installation.

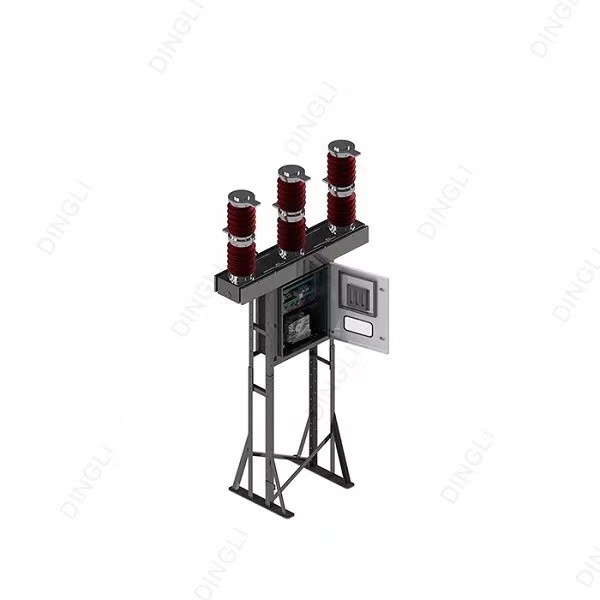

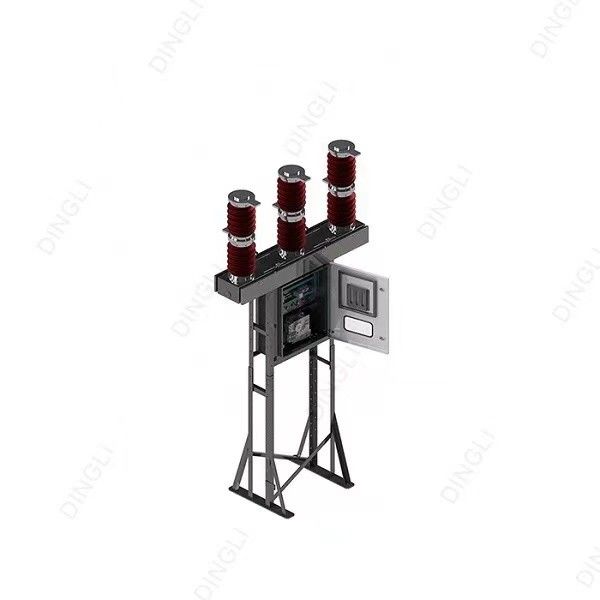

The GHS type of stored energy and free release mechanical operating mechanism allows opening and closing operations

through local and remote control. The operating mechanism, the activating kinematics of the moving contacts and the

anti-condensation heater are located inside a tight metal enclosure which also acts as the support for the poles. The

above-mentioned structure is supported by a frame made of telescopic metal sections which allow the height of the

circuit-breaker terminal to be adapted from 2800 mm to 3700 mm.
The metal enclosure has IP 54(*) degree of protection and is fitted with a tight door with an inspection window.The

circuit-breaker is compact and ensures a high level of sturdiness and excellent mechanical reliability.The enclosure

is made out of a steel plate with adequate surface protection by a special metalising and painting process. The support

structures are hot dip galvanised.

Outdoor 36kV GCB SF6 Gas Circuit Breaker Substation Type With Long Service Life 0







Main Contact Separation
No electric arc is struck because the current flows through the arcing contacts. During its run downwards,

the moving apparatus compresses the gas in the lower chamber. The compressed gas flows from the lower to

the upper chamber. hereby taking both the chambers to the same pressure.

Arcing Contact Separation
The current flows due to the electric arc which has struck between the arcing contacts. The gas cannot escape

through the nozzle because the hole is still closed by the fixed arcing contact and cannot even escape through

the inside of the arcing contact, because of the clogging effect of the electric arc.

No.
Item
Unit
Data
1
Model

GCB-12/24
GCB-36
GCB-40
2
Standards

IEC 62271-100
3
Rated voltage
kV
12/24
36
40.5
4
Rated Frequency
Hz
50-60
50-60
50-60
5
Rated Normal Current
A
1250
2500
1250
2500
1250
2500
6
Rated Breaking Capacity
kA
25/31.5
25/31.5
25/31.5
25/31.5
25/31.5
25/31.5
7
Rated Short Time Withstand Current(3s)
kA
25/31.5
25/31.5
25/31.5
25/31.5
25/31.5
25/31.5
8
Making Capacity
kA
63/80
63/80
63/80
63/80
63/80
63/80
9
Operation Sequence

O-0.3S-CO-15s-CO
10
Opening Time
ms
45+10
45+10
45+10
11
Arcing Time
ms
10-15
10-15
10-15
12
Total Breaking Time
ms
55-60
55-60
55-60
13
Closing Time
ms
75+10
75+10
75+10
14
SF6 Gas Absolute Pressure
kPa
380
380
550
15
Tropicalisation

IEC: 60068-2-30, 721-2-1
16
Electromagnetic Compatibility

IEC: 60694, 61000-6-2, 61000-6-4



Standards And Service

The GCB circuit-breakers comply with the IEC 62271- 100 standard as well as of other major industrialised countries.

They have undergone the tests indicated ensure service safety and reliability of the apparatus in alll installationsThe

mechanical and electrical locking devices have been provided to prevent incorrect operations and to carry out nspection

of the installations while guaranteeing maximum operator safety.
