3 Phase 10kv 5000kva Electric Power Transformer Low Loss

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : ls International standard wood case or according to client's requests Best selling 66kv 20mva 3 phase 2 windings transformer oil price Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 500 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001 Model Number: S13

Detail Information

Model Number: S13 Usage: Power
Phase: Three Coil Structure: TOROIDAL
Coil Number: AUTOTRANSFORMER Material: 100%Copper Winding Or Aluminum Winding
Rated Voltage: 10kV Rated Capacity: 5000kva
High Voltage: 11kv Frequency: 50 / 60Hz
High Light:

10kv 5000kva Electric Power Transformer

,

3 Phase Electric Power Transformer

,

10kv 5000 kva transformer

Product Description

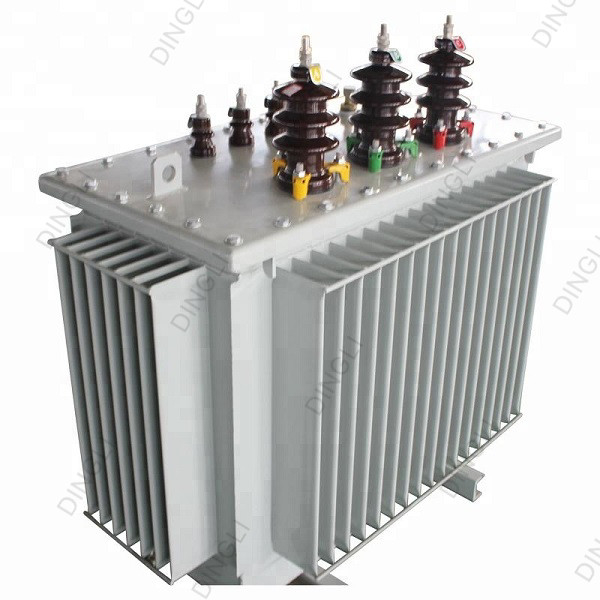

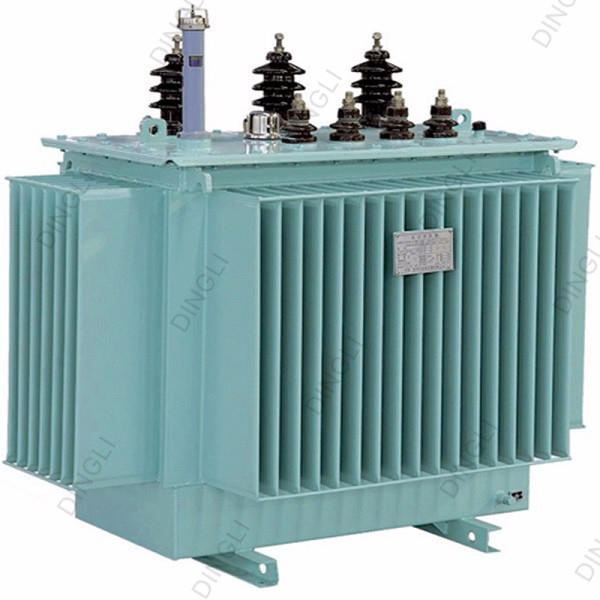

S13 Series Electric 3 Phase 10kv 5000kva Power Transformer


Quick Details

S13 series transformer is one kind of low loss copper winding product. It adopts high quality material, especially

applying the new technology and new material to the insulation of the coil and transformer body, thus the no-load

and the load loss are obviously reduced, the performance and structure are more reliable and superior.

3 Phase 10kv 5000kva Electric Power Transformer Low Loss 0
3 Phase 10kv 5000kva Electric Power Transformer Low Loss 1

3 Phase 10kv 5000kva Electric Power Transformer Low Loss 2

3 Phase 10kv 5000kva Electric Power Transformer Low Loss 3



Product Parameters

Model



Rated Capacity
KVA
Rated Voltage KV
Connection Group Symbol
Loss W
No-load Current (%)
Impedance Voltage
(%)
HV
KV
Tapping Range of High Voltage
LV
KV
No-load
On load
S13-M*R-30/10
30
















10















±5%
±2*2.5%
















0.4















Dyn11
Yyn0
80
630/600
0.30












4.0
S13-M*R-50/10
50
100
910/870
0.24
S13-M*R-80/10
80
130
1310/1250
0.22
S13-M*R-100/10
100
150
1580/1500
0.21
S13-M*R-160/10
160
200
2310/2200
0.19
S13-M*R-200/10
200
240
2730/2600
0.18
S13-M*R-250/10
250
290
3200/3050
0.17
S13-M*R-315/10
315
340
3830/3650
0.16
S13-M*R-400/10
400
410
4520/4300
0.16
S13-M*R-500/10
500
480
5410/5100
0.16
S13-M*R-630/10
630
570
6200
0.15





4.5
S13-M*R-800/10
800
700
7500
0.15
S13-M*R-1000/10
1000
830
10300
0.14
S13-M*R-1250/10
1250
970
12000
0.13
S13-M*R-1600/10
1600
1170
14500
0.13

Product Details Show

3 Phase 10kv 5000kva Electric Power Transformer Low Loss 4

3 Phase 10kv 5000kva Electric Power Transformer Low Loss 5

3 Phase 10kv 5000kva Electric Power Transformer Low Loss 6

1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.



3 Phase 10kv 5000kva Electric Power Transformer Low Loss 7



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.

2. International Certificate
ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

3. After-Sale Service

Technical Support
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.



3 Phase 10kv 5000kva Electric Power Transformer Low Loss 8



Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

3 Phase 10kv 5000kva Electric Power Transformer Low Loss 9



Warehouse and Emergency Supply
Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.



3 Phase 10kv 5000kva Electric Power Transformer Low Loss 10



Design and Consultant
Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.

Package
Set-wisely packing or member-wisely packing as per client's requirements.
