85kva Isolation Variable Electric Power Transformer Dry Type

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : ls International standard wood case or according to client's requests Best selling 66kv 20mva 3 phase 2 windings transformer oil price Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 3000 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: CE

Detail Information

Model Number: SG-85KVA Usage: Power
Phase: Three Coil Structure: TOROIDAL
Coil Number: AUTOTRANSFORMER Input Voltage: Rated Voltage Below 1000v
Output Voltage: Rated Voltage Below 1000v Dielectric Class: No Damage At 2KV For 1 Minute
Winding Material: Aluminum Working Frequency: 50 / 60Hz
Insulation Class: F Efficiency: >98 %
High Light:

85kva Electric Power Transformer

,

Isolation Variable Electric Power Transformer

,

85kva variable power transformer

Product Description

85kva Dry Type Isolation Variable Electric Power Transformer


Quick Details

Transformer Features

(1) All new raw materials.

(2) Full (100%) capacity.

(3) Low core loss with maximum efficiency and efficiency up to 99% reduces operating cost by 30%.

(4) Ultra quiet operation.
(5) Clear, comprehensive documentation and labeling.

REMARK:

---Frequency CANNOT be converted by transformer.

---Single phase voltage to 3 phase voltage CANNOT be achieved via transformer.



Technical Parameters

Transformer Type Isolation transformer/auto transformer
KVA Rating 85KVA
Primary Rated voltage
Primary Taps None
Primary Connection Wye/Delta/Z, etc
Secondary Rated voltage
Secondary Taps None
Secondary Connection Wye/Delta/Z, etc
Working Frequency 50Hz/60Hz
Vector Group YY0/DYN11, etc
Winding Material Aluminum/copper
Cooling Class AA/FA
Insulation Class F/H, etc
Temperature Rise 150℃/180℃, etc
Insulation Resistance ≥2MΩ
Dielectric Class No damage at 2.5KV for 1 minute
Impedance Percentage 4%
Efficiency ≥99%
Duty Cycle Continuous
Ambient Temperature -15 to +45°C
Relative Humidity 0-95% (Non-condensing)
Altitude ≤5000m
Enclosure None/NEMA 1, etc
Enclosure Color None, white, black, etc
IP Rating IP00/IP20 for indoor/IP54 for outdoor, etc
Special Requirements Please advise before quotation

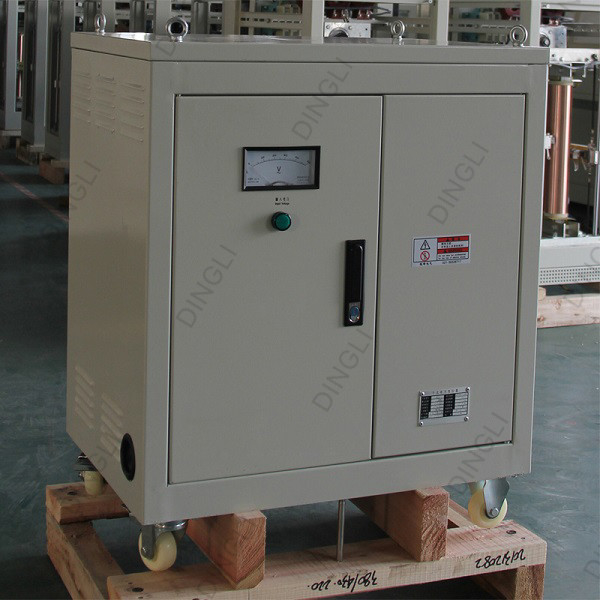

85kva Isolation Variable Electric Power Transformer Dry Type 0

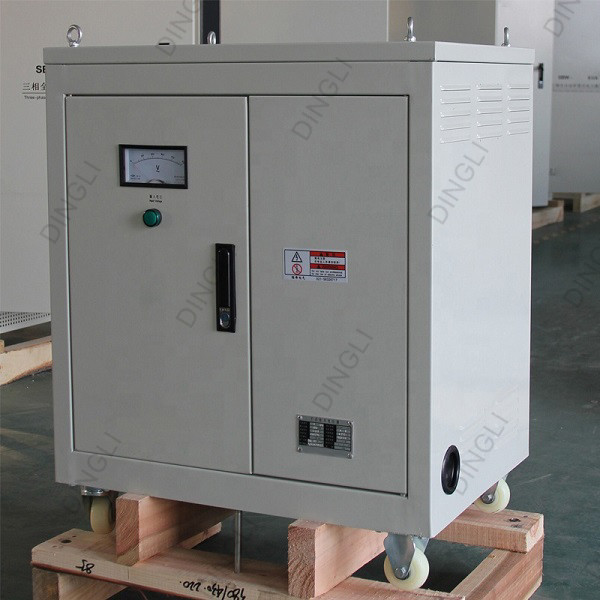

85kva Isolation Variable Electric Power Transformer Dry Type 1

Processing Equipment

85kva Isolation Variable Electric Power Transformer Dry Type 2


Finished Transformer
Without or with enclosure (1.5-2mm thickness).

85kva Isolation Variable Electric Power Transformer Dry Type 3




Pre-shipping Tests

Before leaving the factory, every transformer must pass a series of rigorous tests, performed with advanced equipment, on a range of measurements.

(1) Appearance – visual check.
(2) Winding resistance.
(3) Insulation impedance.
(4) Voltage ratio. Phase angle displacement.
(5) Short circuit impedance and load loss.
(6) No load loss and current.
(7) AC voltage regulation.

Below are part of our testing instrument.

85kva Isolation Variable Electric Power Transformer Dry Type 4
