High Voltage Vacuum Circuit Breaker Outdoor Auto Recloser Substation VCB

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Sea worthy : professional packing, plastic bag, carton, pallets if clients needed. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 100 Unit/Units per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001 Model Number: ZW7-40.5

Detail Information

Place Of Origin: China Poles Number: 3P
Type: High Voltage, Outdoor, High Voltage, Outdoor Model Number: ZW7-40.5
Rated Voltage: 40.5kV, 40.5kV Rated Frequency: 50/60Hz
Rated Current: 1250A Number Of Phase: Three Phase
Certificated: GB11022/GB1984/GB311.1-6 Application: Electric Power Transmission
High Light:

40.5kV Vacuum Circuit Breaker

,

Power Transmission Vacuum Circuit Breaker

,

Auto Recloser Substation VCB

Product Description

Vacuum Circuit Breaker ZW7-40.5 Outdoor Auto Recloser VCB Substation



Description
ZW7-40.5 high voltage vacuum breaker is outdoor power distribution equipment, with rated voltage 40.5kV,

which is widely applies for protecting and controlling power distribution systems in transformer substations,

industrial and mining establishments.



Quick Detail:

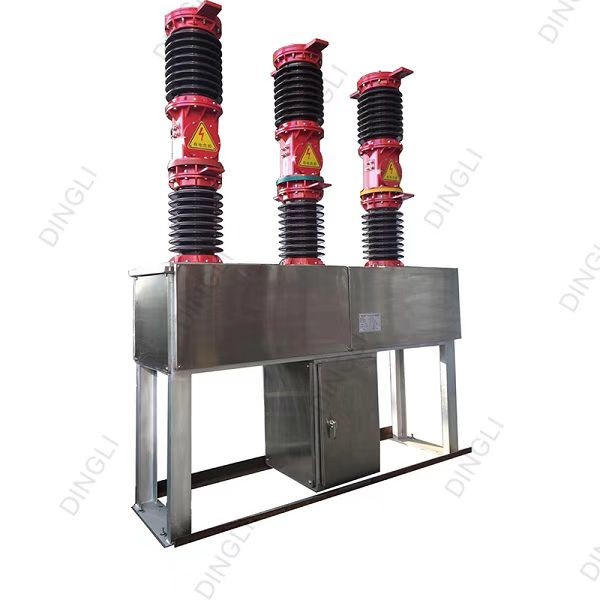

High Voltage Vacuum Circuit Breaker Outdoor Auto Recloser Substation VCB 0

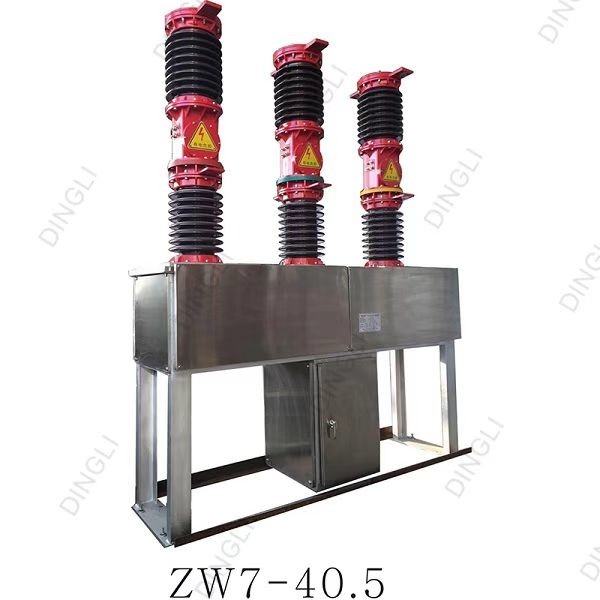

High Voltage Vacuum Circuit Breaker Outdoor Auto Recloser Substation VCB 1



Specification

Type
High Voltage, Outdoor
Rated Voltage
40.5kV
Rated Cuttent
1250A
Certificated:
GB11022/GB1984/GB311.1-6
Mechanical Life
10000
Rated frequency
50/60Hz
Application
Electric Power Transmission
Item
Units
parameters
Rated voltage
KV
40.5
Rated Frequency
HZ
50
Rated Current
A
1250/1600/2500
Rated short-circuit breaking current
KA
20/25/31.5
Rated short-circuit duration
S
4
Rated short-circuit breaking current breaking number
nos
12
Rated operating sequence

0-0.3s-CO-180s-CO
Closing time
ms
≤ 150
opening time
ms
≤ 60
Mechanical life
Times
10000
Rated Storage and operation voltage
V
AC DC 220/110
Closing speed
m/s
0.7±0.2
Opening speed
m/s
1.5±0.2
Contact closing spring time
ms
≤5
Three phase closing opening asynchrony
ms
≤2


Shipping:

1. Specific packaging can be made to order.
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the

shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.
The standard procedure for making wooden case is as follows:

High Voltage Vacuum Circuit Breaker Outdoor Auto Recloser Substation VCB 2
Technical Support
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100

engineers. We have special pre-sales engineer to work with customer at early stage of the project.


High Voltage Vacuum Circuit Breaker Outdoor Auto Recloser Substation VCB 3

Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru,

Ecuador, Senegal, which will make a fast response for customer.

High Voltage Vacuum Circuit Breaker Outdoor Auto Recloser Substation VCB 4



Customer Visit
Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and found

ways to solve it together. They set a high value on this cooperation.

High Voltage Vacuum Circuit Breaker Outdoor Auto Recloser Substation VCB 5
