Disc Electric Glass Insulators Toughened Glass Insulator U300B/195
Contact Person : Julia
Phone Number : 86-18037871307
WhatsApp : +8618037871307
| Minimum Order Quantity : | Negotiation | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Standard National Packing Method | Delivery Time : | Depends on the quality of client |
| Payment Terms : | 30% advanced payment , 70% balance payment before shipment. | Supply Ability : | 5000 Set/Sets per Month |
| Place of Origin: | China | Brand Name: | DINGLI |
|---|---|---|---|
| Model Number: | DL-100 |
|
Detail Information |
|||
| Certification: | ISO9001 | Material: | Glass, Glass |
|---|---|---|---|
| Type: | Insulator, Suspension Glass Insulator | Model Number:: | DL-100 |
| Application: | High Voltage | Battering Load: | >578KN |
| Weight: | 4.10kg | Mechanical Damage Load: | >100KN |
| Nominal Height: | 146mm | Minimum Nominal Creepage Distance: | 320mm |
| High Light: | Glass Electrical Insulators 100kn,100kn High Voltage Glass Insulators,HV Toughened Glass Insulators |
||
Product Description

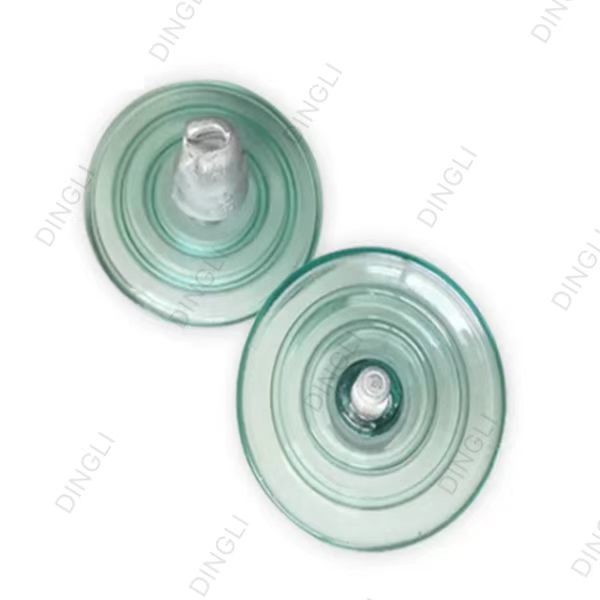

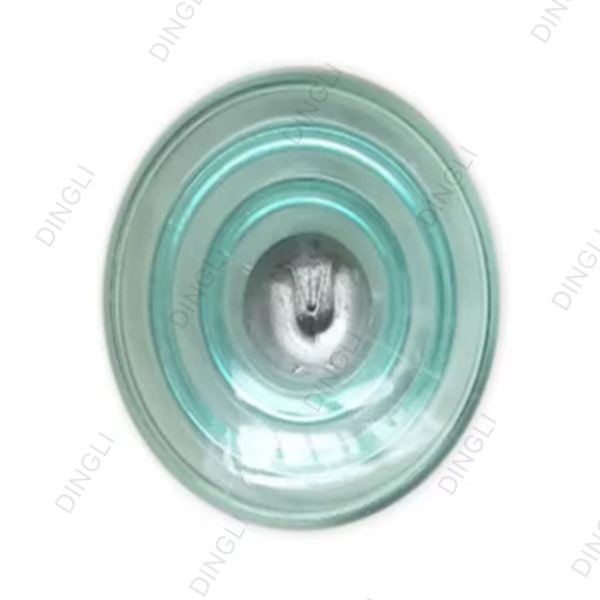

High Voltage 100kn Anti Pollution Glass Electrical Insulators
Quick Detail:
Characteristic
Insulators are made of toughened glass. Because of the high mechanical strength of the glass insulator
surface, it is not easy to crack on the surface.
Insulator is a special insulation control, which can play an important role in overhead transmission lines.
Initially, insulators were mostly used in poles, and gradually developed into high-voltage wire towers with
many disc-shaped insulators hanging at one end.
Using glass insulator, it can cancel the operation process of insulator of charged periodic preventive test.
This is due to every damage to tempered glass causes damage to the insulator, which operators can easily
find when patrolling the wire. Toughened glass insulators are widely used because of the characteristics of
zero self-breaking and easy maintenance. Insulator is one of the key components of high voltage transmission
line, and its performance directly affects the operation safety of the whole transmission line.
Product parameters:
| Model | DL-70 | DL1-70 | DL-100 | DL-120 | DL3-160 | DL3-210 | DL-240 | DL-300 | |
|
Mechanical damage load≥ KN |
70 | 70 | 100 | 120 | 160 | 210 | 240 | 300 | |
|
Battering load≥ KN |
565 | 565 | 678 | 678 | 1017 | 1017 | 1017 | 1017 | |
|
Electromechanical load test value/h KN |
52.5 | 52.5 | 75 | 90 | 120 | 157.5 | 180 | 225 | |
|
Nominal Height H mm |
127 | 146 | 146 | 146 | 155 | 170 | 170 | 195 | |
|
Nominal diameter of insulator D mm |
255 | 255 | 255 | 255 | 280 | 280 | 280 | 320 | |
|
Minimum nominal creepage distance mm |
320 | 320 | 320 | 320 | 380 | 390 | 390 | 485 | |
|
Peak voltage tolerance for lightning full - wave shock kv |
≥100 | ≥100 | ≥100 | ≥100 | ≥105 | ≥105 | ≥105 | ≥105 | |
|
Effective value of power frequency voltage≥ kv |
1min wet resistance | 40 | 40 | 40 | 40 | 42 | 42 | 42 | 45 |
| Breakdown | 130 | 130 | 130 | 130 | 130 | 130 | 130 | 130 | |
| Weight/set (kg) | 3.77 | 3.78 | 4.1 | 4.2 | 6.2 | 6.7 | 6.8 | 10.7 | |
1. Specific packaging can be made to order.
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the
shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.
Package
Set-wisely packing or member-wisely packing as per client's requirements.
