130kV 40KN Tensile Electric Glass Insulators With 16mm Socket Coupling

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 100000 Piece/Pieces per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001 Model Number: U40B

Detail Information

Material: FiberGlass Type: Electric Glass Tension Insulators
Model Number:: U40B Certification: ISO9001
Application: High Voltage Socket Coupling: 16mm
Tensile Strength: 40 KN Power Frequency Puncture Voltage: 130kV
Impulse Puncture Voltage( P.U ): 2.8 Creepage Distance: 320mm
High Light:

40KN Tensile Electric Glass Insulators

,

130kV Electric Glass Insulators

,

16mm Socket Coupling Electric Glass Insulators

Product Description

High Quality Electric Glass Tension Insulators For High Voltage

Quick Detail:

Advantages:



IEC designation U70B/140 U70B/146 U708/127 U100B/146 U100B/127
Diameter D( mm ) 255 255 255 255 255
Spacing H( mm ) 140 146 127 146 127
Creepage disiance L( mm ) 320 320 320 320 320
Socket coupling( mm) 16 16 16 16 16
Mechanical failing load( mm ) 70 70 70 100 100
Mechanical routine test( kN ) 35 35 35 50 50
Wet power frequency withstand voltage( kV ) 40 40 40 40 40
Dry lightning impulse withstand voltage( kV) 100 100 100 100 100
Impulse puncture voltage( P.U ) 2.8 2.8 2.8 2.8 2.8
Power frequency puncture voltage( kV ) 130 130 130 130 130
Radio influence voltage( pV) 50 50 50 50 50
Corona visual test( kV ) 18/22 18/22 18/22 18/22 18A22
Power frequency elednc arc voltage 0.12s/20kA 0 12s/20kA 012s/20kA 0.12s/20kA 0.12S/20KA
Net weight per unit( kg ) 3.6 3.6 3.5 4 4

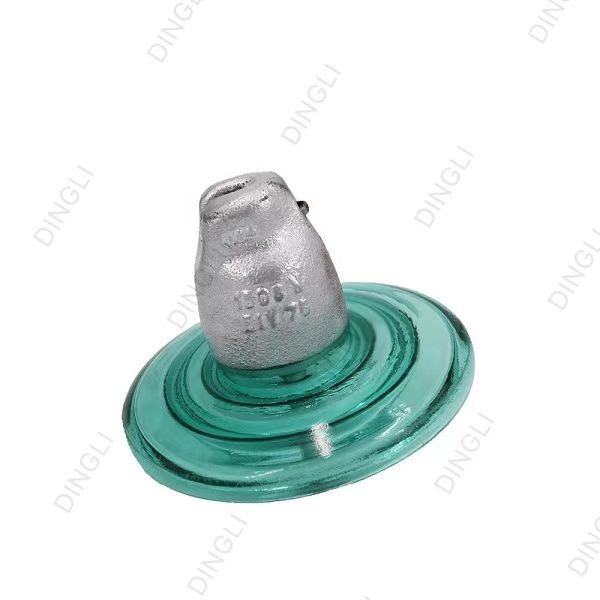

130kV 40KN Tensile Electric Glass Insulators With 16mm Socket Coupling 0

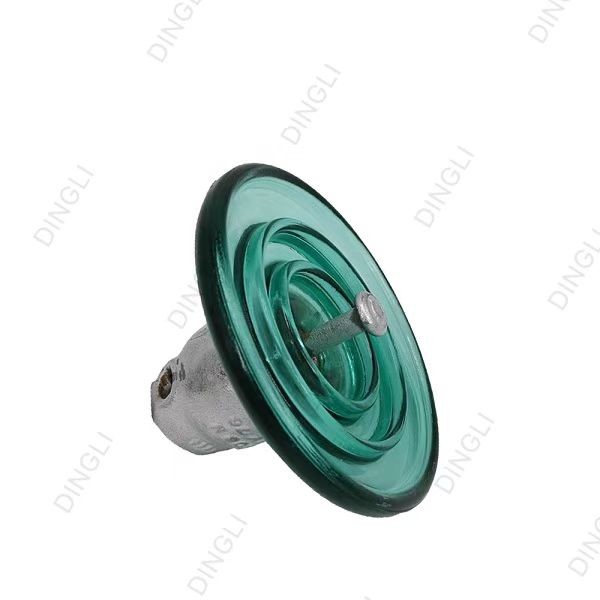

130kV 40KN Tensile Electric Glass Insulators With 16mm Socket Coupling 1

130kV 40KN Tensile Electric Glass Insulators With 16mm Socket Coupling 2

130kV 40KN Tensile Electric Glass Insulators With 16mm Socket Coupling 3

130kV 40KN Tensile Electric Glass Insulators With 16mm Socket Coupling 4

130kV 40KN Tensile Electric Glass Insulators With 16mm Socket Coupling 5

Packaging

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the

shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.



130kV 40KN Tensile Electric Glass Insulators With 16mm Socket Coupling 6

Package

Set-wisely packing or member-wisely packing as per client's requirements.
