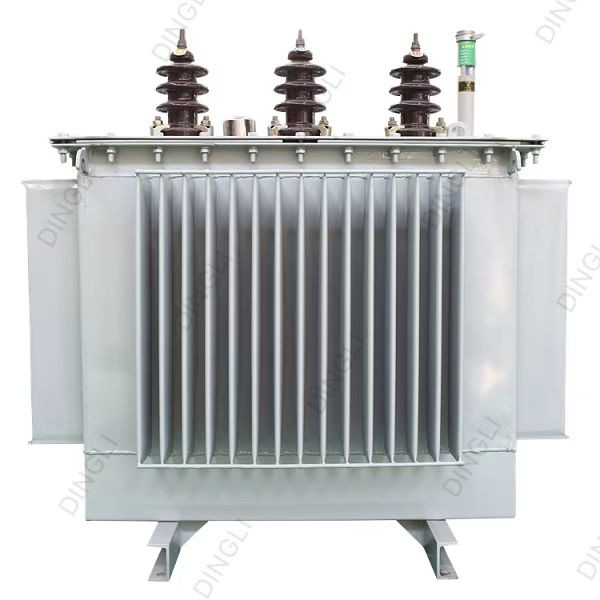

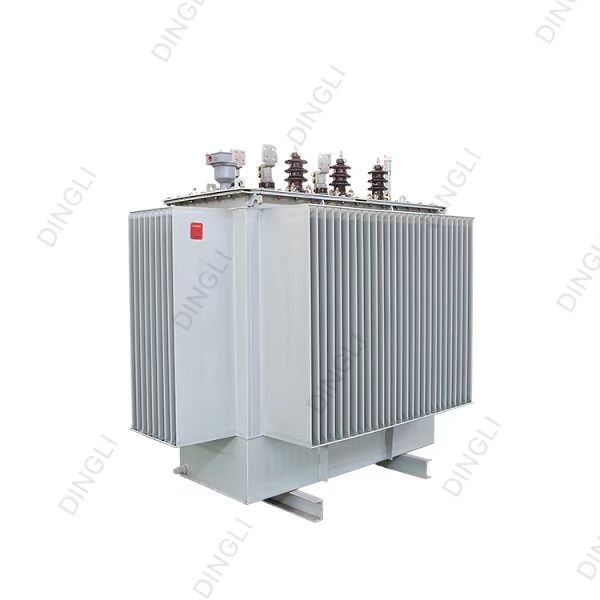

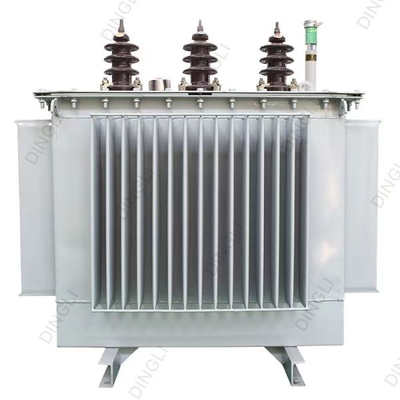

Three Phase Electrical Power Transformer 315 Kva 1000kva 2000 Kva 1600 Kva

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : ls International standard wood case or according to client's requests Best selling 66kv 20mva 3 phase 2 windings transformer oil price Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 100 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001 Model Number: Oil-immersed Transformer

Detail Information

Model Number: Oil-immersed Transformer Usage: Electronic, Power/ Electric Power Transmission
Phase: Three Coil Structure: TOROIDAL
Coil Number: Three Material: Copper Winding
Type: Oil-filled Transformer Output Voltage: 220V 380V 400V 415V
Rated Capacity: 1500kva Connection Method: Yyn0 Dyn11
Certification: ISO CCC Frequency: 50/60Hz
High Light:

Copper Winding Electrical Power Transformer

,

Oil Filled Electrical Power Transformer

,

315 Kva Three Phase Power Transformer

Product Description

315 Kva 1000kva 2000 Kva Three Phase 1600 Kva Electrical Power Transformer


Quick Details

Three Phase Electrical Power Transformer 315 Kva 1000kva 2000 Kva 1600 Kva 0

Products Range
Our company can produce a variety of oil-immersed transformers with a voltage rating of 35kV or less and

a capacity of 12500kVA or less. The variety includes S9, S11 series and S13, S15 series of energy-saving

products. The product is widely used in industrial and mining enterprises, agriculture, civil construction and

other distribution sites as well as oil, chemical industry, more oil, more chemical substances in the places.


Executive Standard:
GB1094 Electrical Transformer
IEC60076 Electrical Transformer
JB/T6451 Specification and Technical Requirements for Oil-immersed Power Transformers
JB/T10088 6kV~500kV Power Transformer Sound Level
GB/T7595 Quality of Transformer Oils in Service



Product Show

1. The body adopts a new type of insulation structure to improve the ability to withstand short-circuits;
2. Spiral coil with longitudinal oil passage has a better internal heat dissipation;
3. High efficiency, low loss, can save a lot of power and operating costs;
4. The surface of the corrugated oil tank is coated with three anti-paint after oil removal, rust removal, and

phosphating. It is suitable to use in metallurgy, petrochemical, and mining environments.



Three Phase Electrical Power Transformer 315 Kva 1000kva 2000 Kva 1600 Kva 1



Product parameters

10KV Grade Winding Core Oil-immersed Transformer S13-M·RL-30~6100/10

Rated

Capacity

Voltage

Combination

Connec

-tion

Method

Loss(W)

No Load

Current

(%)

Impend

-ence

Voltage

(%)

Weight Dimension(mm)
(KVA) HV(KV) LV(KV) No Load Load (75℃) (Kg) (L×W×H)
30 11 10.5 10 6 0.4 Yyn0 Dyn11 80 630/600 0.30  4 300 800×620×1100
50 100 910/870 0.24  380 840×640×1150
80 130 1090/1040 0.22  480 980×670×1210
100 150 1310/1250 0.21  540 1040×700×1230
125 170 1580/1500 0.20  590 910×800×1260
160 200 1890/1800 0.19  720 1110×970×1290
200 240 2310/2200 0.18  860 1180×1020×1310
250 290 2730/2600 0.17  970 1190×1030×1300
315 340 3200/3050 0.16  1170 1290×1120×1360
400 410 3830/3650 0.16  1320 1280×1110×1410
500 480 4520/4300 0.16  1490 1400×1210×1420
630 570 6200 0.15  4.5 1910 1440×1250×1490
800 700 7500 0.15  2160 1540×1340×1520
1000 830 10300 0.14  2550 1600×1420×1630
1250 970 12400 0.13  3160 1680×1460×1730
1600 1170 14500 0.12  3850 1780×1540×1810

Three Phase Electrical Power Transformer 315 Kva 1000kva 2000 Kva 1600 Kva 2

Three Phase Electrical Power Transformer 315 Kva 1000kva 2000 Kva 1600 Kva 3

Three Phase Electrical Power Transformer 315 Kva 1000kva 2000 Kva 1600 Kva 4

Three Phase Electrical Power Transformer 315 Kva 1000kva 2000 Kva 1600 Kva 5

1.ABOUT US

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after

more than 50 years’development, DINGLI now is group company dedicated on total solutions for

electricity projects covering survey, design, manufacture, complete equipment supply, construction,

operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid

construction, participated in all UHV construction projects and made an outstanding contribution to

UHV transmission lines of China.

Three Phase Electrical Power Transformer 315 Kva 1000kva 2000 Kva 1600 Kva 6



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador,

Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers.

We have got a number of international certificates, such as ISO certificate covering design, equipment and construction,

AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate,

Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is

more than 30% of the company's main revenue. We have provided high-quality products and services to more than

100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong

technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and

won their recognition.



2. International Certificate
ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

3. After-Sale Service

Technical Support
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers.

We have special pre-sales engineer to work with customer at early stage of the project.

Three Phase Electrical Power Transformer 315 Kva 1000kva 2000 Kva 1600 Kva 7



Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia,

Peru, Ecuador, Senegal, which will make a fast response for customer.

Three Phase Electrical Power Transformer 315 Kva 1000kva 2000 Kva 1600 Kva 8



Warehouse and Emergency Supply
Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production

line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with

common use spare parts.

Three Phase Electrical Power Transformer 315 Kva 1000kva 2000 Kva 1600 Kva 9



Design and Consultant
Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the engineers

are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will

reduce the weight, and avoid the replacement on the profiles to save the working time.

Package
Set-wisely packing or member-wisely packing as per client's requirements.





Global-network map

China

Henan DINGLI Pole and Tower Co., ltd.

Henan Zhongdingxin Detection Technology Co.,ltd.

Henan Dadi Electricity Engineering Co.,ltd.

Henan DINGLI Power Equipment Co.,ltd

Henan DINGLI Power Construction Co., ltd

Huading Concrete Pole Co., Ltd

Xingjiang Huili Steel Tower Co., Ltd.

Bazhou Dingli Tower Co., Ltd.

Shanghai Sales and Service Center

Beijing Sales and Service Center



Cambodia

Cambodia Phnom Penh Factory



Spain

Madrid (Spain) Sales and Service Center



Dakar, Senegal



Senegal (Dakar) Sales and Service Center

Senegal (Dakar) Spare Part Warehouse



Quito, Ecuador



Quito (Ecuador) Steel Tower Design Center (ASTM Standard)

Quito (Ecuador) Steel Tower Emergency Production Line

Quito (Ecuador) Raw Material and Spare Part Warehouse



Lima, Peru

Lima (Peru) Sales and Service Center



Cochabamba, Bolivia

Cochabamba (Bolivia) Raw Material and Spare Part Warehouse



Santiago, Chile

Santiago (Chile) Sales and Service Center



Jakarta, Indonesia

Jakarta (Indonesia) Sales and Service Center

Three Phase Electrical Power Transformer 315 Kva 1000kva 2000 Kva 1600 Kva 10
