Three Phase Step Down 11kv Oil Immersed Distribution Transformer

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : ls International standard wood case or according to client's requests Best selling 66kv 20mva 3 phase 2 windings transformer oil price Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 5000 Set/Sets per Year
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001 Model Number: S11-M-1000/11

Detail Information

Model Number: S11-M-1000/11 Usage: Power
Phase: Three Coil Structure: TOROIDAL
Coil Number: Other Material: Copper
Rated Capacity: 100KVA Input Voltage: 6kV/6.3kV/10kV/10.5kV/11kV
Output Voltage: 0.4kV Application: Industrial Power Supplies
Type: Oil-filled Transformer Frequency: 50/60Hz
High Light:

11kv Oil Immersed Distribution Transformer

,

Three Phase Oil Immersed Power Transformer

,

Step Down Oil Immersed Type Transformer

Product Description

Three Phase Step Down 11kv Oil-Immersed Distribution Electric Power Transformer


Quick Details

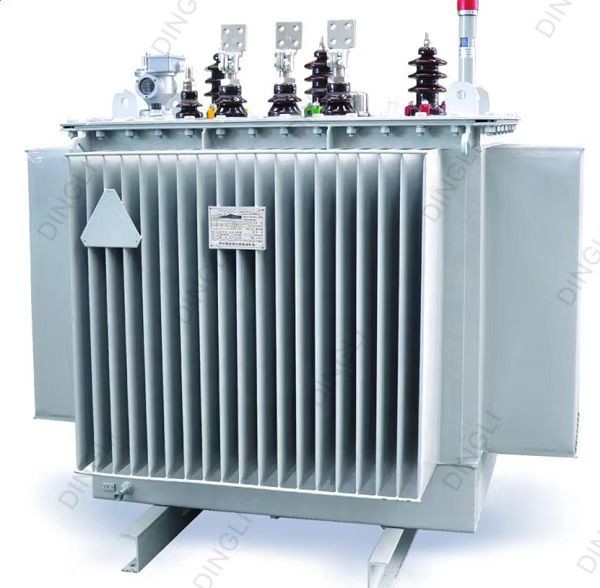

Three Phase Step Down 11kv Oil Immersed Distribution Transformer 0

Three phase step down 50kva 100 kva 125kva 11kv 15Kv Oil-immersed distribution electric power transformer
The performances of model S9-M, S10-M, S11-M 22kv series full-sealed oil-immersed distribution transformes

conform to Standards IEC. Three phase step down 50kva 100 kva 125kva 11 kv Oil-immersed distribution electric

power transformer. Its core is made of quality cold-rolled silicon sheet and is of a full-miter non-puncture structure

and its coil is made of quality oxygen-free copper.It adopts radiator oil tank of corrugated shteet type or expansion type.
As it doesn't need oil conservator, the height of transformer is reduced, and as the transformer oil doesn't contract

with air, the oil ageing is retarded, thus prolonging the service life of transformer. The no-load loss of Model S10-M

is 20% lower than that of Model S9-M, and S11-M is 30% lower than S9-M.
Product parameter list

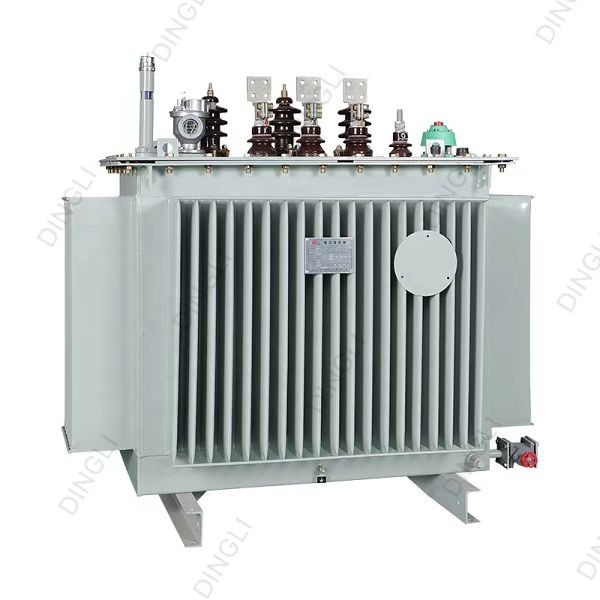

Three Phase Step Down 11kv Oil Immersed Distribution Transformer 1

Three Phase Step Down 11kv Oil Immersed Distribution Transformer 2

Place of Origin

China

Brand Name

DINGLI

Model Number

S11-M-1000/11

Usage

Power

Phase

Three

Coil Structure

TOROIDAL

Coil Number

Other

Material

Copper

Type

Oil-filled Transformer

Application

Industrial Power Supplies

Rated capacity

100KVA

Frequency

50/60Hz

Input Voltage

6kV/6.3kV/10kV/10.5kV/11kV

The production process

Three Phase Step Down 11kv Oil Immersed Distribution Transformer 3

Technology & Detail

Three Phase Step Down 11kv Oil Immersed Distribution Transformer 4
Oil level indicator

Surface spraying process of seamless steel pipe;

High-precision liquid level glass tube display meter;

Accurate measurement;durable



Wiring palm



The fuselage height and the fastening part of the low-pressure lead are equipped with self-locking locknut.

Three Phase Step Down 11kv Oil Immersed Distribution Transformer 5
Three Phase Step Down 11kv Oil Immersed Distribution Transformer 6


Gas relay

More sensitive sensing of changes in the internal gas of the transformer to protect the transformer.




Oil drain valve

Quick oil drain, reducing maintenance time;

Convenient maintenance

Three Phase Step Down 11kv Oil Immersed Distribution Transformer 7

Engineering Cooperation Cases

Three Phase Step Down 11kv Oil Immersed Distribution Transformer 8

1.ABOUT US

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after

more than 50 years’development, DINGLI now is group company dedicated on total solutions for

electricity projects covering survey, design, manufacture, complete equipment supply, construction,

operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid

construction, participated in all UHV construction projects and made an outstanding contribution to

UHV transmission lines of China.

Three Phase Step Down 11kv Oil Immersed Distribution Transformer 9



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador,

Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers.

We have got a number of international certificates, such as ISO certificate covering design, equipment and construction,

AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate,

Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is

more than 30% of the company's main revenue. We have provided high-quality products and services to more than

100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong

technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and

won their recognition.



2. International Certificate
ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

3. After-Sale Service

Technical Support
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers.

We have special pre-sales engineer to work with customer at early stage of the project.

Three Phase Step Down 11kv Oil Immersed Distribution Transformer 10



Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia,

Peru, Ecuador, Senegal, which will make a fast response for customer.

Three Phase Step Down 11kv Oil Immersed Distribution Transformer 11



Warehouse and Emergency Supply
Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production

line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with

common use spare parts.

Three Phase Step Down 11kv Oil Immersed Distribution Transformer 12



Design and Consultant
Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the engineers

are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will

reduce the weight, and avoid the replacement on the profiles to save the working time.

Package
Set-wisely packing or member-wisely packing as per client's requirements.
