Glass Reinforced Plastic Suspension Type Insulator Good Arc Resistance Performance

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Ton per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM, Model Number: Insulator

Detail Information

Material: Glass, Glass Type: Glass Reinforced Plastic Suspension Insulator
Model Number:: U120B/146 Certification: ISO9001/CE/ROHS
Usage: Insulation Protection Feature: Good Arc Resistance Performance
Supply Ability:: 50000 Piece/Pieces Per Month
High Light:

glass power line insulators

,

disc suspension insulator

Product Description

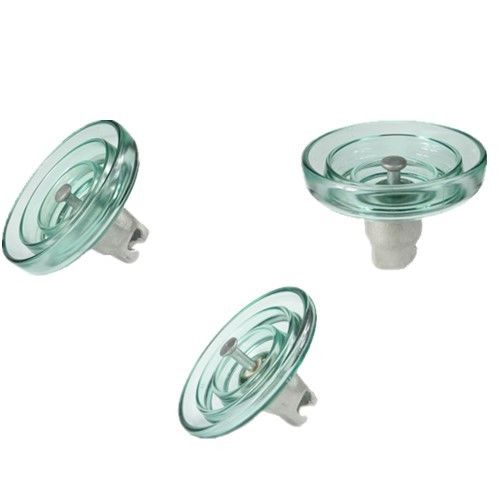

Glass Reinforced Plastic Suspension Type Insulator Good Arc Resistance Performance

Quick Detail: Glass reinforced plastic suspension insulator

Product Range:

Currency designation U160BP/146M U160BP/155M U210BP/170M U120BP/170M
Designation LXAP1-160 LXAP-160 LXAP-210 LXAP-240
(mm)Diameter D 420 420 420 420
(mm)Spacing H 146 155 170 170
(mm)Creepage L 380 380 380 380
(mm)Socket soupling 20 20 20 24
(KN)Mechanical failing Load 160 160 210 240
(KN)Mechanical routine test 80 80 105 120
(KV)Wet Power frequency withstand voltage 50 50 50 50
(KV)Dry lighting impulse withstand voltage 95 95 95 95
(P.U)Impulse puncture voltage 2.8 2.8 2.8 2.8
(KV) Power frequency puncture voltage *130 *130 *130 *130
(μV)Rodio influence voltage 50 50 50 50
(KV)Corona visual test 18/22 18/22 18/22 18/22
power frequency electric arc voltage 0.12s/20KA 0.12s/20KA 0.12s/20KA 0.12s/20KA
(kg)Net weight per unit 7.2 7.2 7.3 7.5

Glass Reinforced Plastic Suspension Type Insulator Good Arc Resistance Performance 0

Packaging

1.Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.



Glass Reinforced Plastic Suspension Type Insulator Good Arc Resistance Performance 1





1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

Glass Reinforced Plastic Suspension Type Insulator Good Arc Resistance Performance 2



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.

2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

3. After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.



Glass Reinforced Plastic Suspension Type Insulator Good Arc Resistance Performance 3



Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.

Package

Set-wisely packing or member-wisely packing as per client's requirements.



Glass Reinforced Plastic Suspension Type Insulator Good Arc Resistance Performance 4

5. Global-network map

China

Henan DINGLI Pole and Tower Co., ltd.

Henan Zhongdingxin Detection Technology Co.,ltd.

Henan Dadi Electricity Engineering Co.,ltd.

Henan DINGLI Power Equipment Co.,ltd

Henan DINGLI Power Construction Co., ltd

Huading Concrete Pole Co., Ltd

Xingjiang Huili Steel Tower Co., Ltd.

Bazhou Dingli Tower Co., Ltd.

Shanghai Sales and Service Center

Beijing Sales and Service Center

Cambodia

Cambodia Phnom Penh Factory

Spain

Madrid (Spain) Sales and Service Center

Dakar, Senegal

Senegal (Dakar) Sales and Service Center

Senegal (Dakar) Spare Part Warehouse

Quito, Ecuador

Quito (Ecuador) Steel Tower Design Center (ASTM Standard)

Quito (Ecuador) Steel Tower Emergency Production Line

Quito (Ecuador) Raw Material and Spare Part Warehouse

Lima, Peru

Lima (Peru) Sales and Service Center

Cochabamba, Bolivia

Cochabamba (Bolivia) Raw Material and Spare Part Warehouse

Santiago, Chile

Santiago (Chile) Sales and Service Center

Jakarta, Indonesia

Jakarta (Indonesia) Sales and Service Center



Glass Reinforced Plastic Suspension Type Insulator Good Arc Resistance Performance 5



7. Customer Visit

Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and found ways to solve it together. They set a high value on this cooperation.

8. Customers and Partners of Dingli

Glass Reinforced Plastic Suspension Type Insulator Good Arc Resistance Performance 6

Glass Reinforced Plastic Suspension Type Insulator Good Arc Resistance Performance 7
