High Voltage Electric Glass Insulators Disk Suspension Type Insulation Protection

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Ton per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM, Model Number: Insulator

Detail Information

Material: Glass, Glass Type: Glass Suspension Insulators
Model Number:: U120B/146 Usage: Insulation Protection
OEM/ODM: Available Supply Ability:: 50000 Piece/Pieces Per Month
High Light:

toughened glass insulators

,

glass power line insulators

Product Description

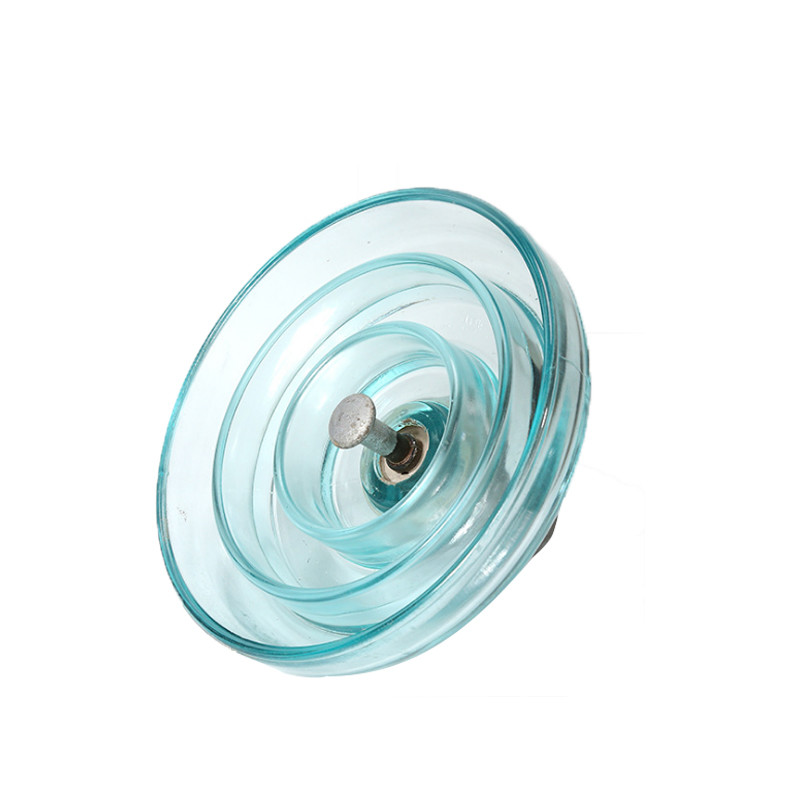

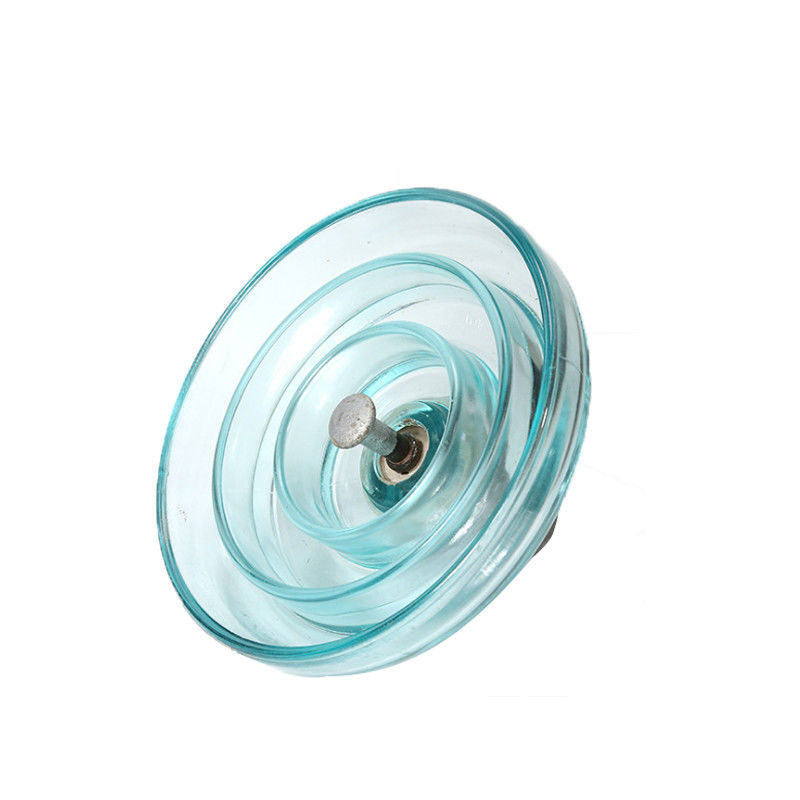

High Voltage Electric Glass Insulators Disk Suspension Type Insulation Protection



Quick Detail: High voltage electrical insulation standard disk suspension type glass insulator



Product Range:

High Voltage Electric Glass Insulators Disk Suspension Type Insulation Protection 0



IEC Type Drawing Number Diameter D Spacing H Creepage Distance L Size of Coupling Mechanical Failing Load Mechanical Routine Test Power Frequency Withstand Voltage (DRY) Power Frequency Withstand Voltage (WET) Lighting Impulse Withstand Voltage Impulse Withstand Voltage Min Power Frequency Puncture Voltage

Radio Interference Voltage

(10kV,1MHz)

Corona Test

(pin&cap)

Power Frequency Electric Arc Test Net Weight Per Unit
U70BL/146 1 255 146 320 16 70 35 70 40 100 2.8 130 ≤50 18/22 0.12s/20kA 3.6
U70BS/127 1 255 127 320 16 70 35 70 40 100 2.8 130 ≤50 18/22 0.12s/20kA 3.5
U100BL/146 1 255 146 320 16 100 50 70 40 100 2.8 130 ≤50 18/22 0.12s/20kA 4.0
U100BS/127 1 255 127 320 16 100 50 70 40 100 2.8 130 ≤50 18/22 0.12s/20kA 4.0
U120B/146 1 255 146 320 16 120 60 70 40 100 2.8 130 ≤50 18/22 0.12s/20kA 4.2
U120B/127 1 255 127 320 16 120 60 70 40 100 2.8 130 ≤50 18/22 0.12s/20kA 4.0
U160BL/170 1 280 170 400 20 160 80 75 45 110 2.8 130 ≤50 18/22 0.12s/20kA 6.5
U160B/155 1 280 155 450 20 160 80 75 45 110 2.8 130 ≤50 18/22 0.12s/20kA 6.3
U160B/155 1 280 155 400 20 160 80 75 45 110 2.8 130 ≤50 18/22 0.12s/20kA 6.3
U160BS/146 1 280 146 400 20 160 80 75 45 110 2.8 130 ≤50 18/22 0.12s/20kA 6.3
U210B/170 1 280 170 460 20 210 105 85 45 125 2.8 130 ≤50 18/22 0.12s/20kA 6.9
U210B/170 1 280 170 400 20 210 105 75 45 110 2.8 130 ≤50 18/22 0.12s/20kA 6.9
U240B/170 2 280 170 400 24 240 120 75 45 110 2.8 130 ≤50 18/22 0.12s/20kA 6.9
U240B/170 2 280 170 460 24 240 120 85 50 110 2.8 130 ≤50 18/22 0.12s/20kA 6.9
U300B/195 3 320 195 485 24 300 150 85 50 130 2.8 130 ≤50 18/22 0.12s/20kA 10.6
U420/205 3 360 205 550 28 420 210 90 55 140 2.8 130 ≤50 18/22 0.12s/20kA 16.0
U550B/240 3 380 240 620 32 550 275 95 55




High Voltage Electric Glass Insulators Disk Suspension Type Insulation Protection 1



We are focused on power transmission and distribution products, including: glass Insulators, porcelaininsulators, overhead line fittings, pole fittings, OPGW and ADSS fittings, cable accessorles, as well as protective devices. We strictly follow IEC, IEEE and related International and industrial standards In production and management, our partner manufacturers all have obtalned certificates of ISO9001 and ISO 14001.



High Voltage Electric Glass Insulators Disk Suspension Type Insulation Protection 2



Packaging



1.Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.



High Voltage Electric Glass Insulators Disk Suspension Type Insulation Protection 3



1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

High Voltage Electric Glass Insulators Disk Suspension Type Insulation Protection 4



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.



2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.



3. After-Sale Service



Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.



High Voltage Electric Glass Insulators Disk Suspension Type Insulation Protection 5



Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.



Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.



Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.



Package

Set-wisely packing or member-wisely packing as per client's requirements.



High Voltage Electric Glass Insulators Disk Suspension Type Insulation Protection 6



 Global-network map

China

Henan DINGLI Pole and Tower Co., ltd.

Henan Zhongdingxin Detection Technology Co.,ltd.

Henan Dadi Electricity Engineering Co.,ltd.

Henan DINGLI Power Equipment Co.,ltd

Henan DINGLI Power Construction Co., ltd

Huading Concrete Pole Co., Ltd

Xingjiang Huili Steel Tower Co., Ltd.

Bazhou Dingli Tower Co., Ltd.

Shanghai Sales and Service Center

Beijing Sales and Service Center



Cambodia

Cambodia Phnom Penh Factory



Spain

Madrid (Spain) Sales and Service Center



Dakar, Senegal



Senegal (Dakar) Sales and Service Center

Senegal (Dakar) Spare Part Warehouse



Quito, Ecuador



Quito (Ecuador) Steel Tower Design Center (ASTM Standard)

Quito (Ecuador) Steel Tower Emergency Production Line

Quito (Ecuador) Raw Material and Spare Part Warehouse



Lima, Peru

Lima (Peru) Sales and Service Center



Cochabamba, Bolivia

Cochabamba (Bolivia) Raw Material and Spare Part Warehouse



Santiago, Chile

Santiago (Chile) Sales and Service Center



Jakarta, Indonesia

Jakarta (Indonesia) Sales and Service Center





High Voltage Electric Glass Insulators Disk Suspension Type Insulation Protection 7





Customer Visit

Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and found ways to solve it together. They set a high value on this cooperation.
