Toughened Glass Disc Suspension Insulator For 70kn High Voltage Power Lines

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Ton per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM, Model Number: Insulator

Detail Information

Material: Glass, Glass Type: Glass Disc Insulator
Model Number:: U120B/146 Certification: ISO9001/CE/ROHS
Usage: Power Lines OEM/ODM: Available
Supply Ability:: 50000 Piece/Pieces Per Month
High Light:

glass power line insulators

,

disc suspension insulator

Product Description

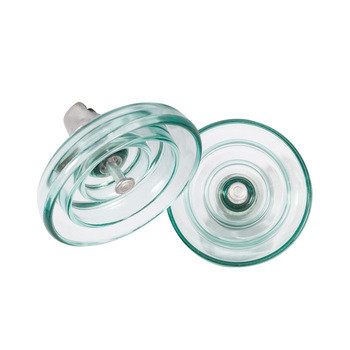

Toughened Glass Disc Suspension Insulator For 70kn High Voltage Power Lines

Quick Detail:

Glass Disc Insulator For 70kN High Voltage Glass Suspension insulator

Application:

Insulators are commonly used as a flexible coating on electric wire and cable. Since air is an insulator, in principle no other substance is needed to keep power where it should be. High-voltage power lines commonly use just air, since a solid (e.g., plastic) coating is impractical. However, wires which touch each other will produce cross connections, short circuits, and fire hazards. In coaxial cable the center conductor must be supported exactly in the middle of the hollow shield in order to prevent EM wave reflections. Finally, wires which expose voltages higher than 60V can cause human shock and electrocution hazards. Insulating coatings help to prevent all of these problems.

Product parameters
IEC designation U70BLP U100BLP U120BLP
Diameter D( mm ) 280 280 280
Socket coupling( mm ) 146 146 146
Creepage distance L( mm ) 450 450 450
Socket coupling( mm ) 16 16 16
Mechanical failing load( KN ) 70 100 120
Wet power frequency withstand voltage( kV ) 50 50 50
Dry lightning impulse withstand voltage( kV ) 125 125 125
Impulse puncture voltage( P.U ) 2.8 2.8 2.8
Power frequency puncture voltage( kV ) 130 130 130
Radio influence voltage( µV ) 50 50 50
Corona visual test( kV ) 18/22 18/22 18/22
Power frequency electric arc voltage 0.12s/20ka 0.12s/20ka 0.12s/20ka
Net weight per unit( kg ) 5.8 5.8 5.8
Product features
♦ It is made of toughened glass. Due to the high mechanical strength of the surface layer of glass insulator, cracks are not easy to occur on the surface. The electrical strength of glass remains constant throughout its operation and the aging process is much slower than that of porcelain.
♦ Using glass insulator, it can cancel the operation process of insulator of charged periodic preventive test. This is due to every damage to tempered glass causes damage to the insulator, which operators can easily find when patrolling the wire. When the insulator is damaged, glass fragments near the steel cap and iron foot get stuck, and the remaining part of the insulator is strong enough to prevent the string from breaking off. The slope ratio of glass insulator is one of the important indexes to measure the product quality, and it is also the quality basis of the current power transmission project bidding.
♦ Insulator is one of the key components in high voltage transmission line, its performance directly affects the whole the safety operation of the transmission line. Glass insulators are widely used because of their characteristics of zero self-breaking and easy maintenanc.
Characteristic
Insulator is a special insulating control which can play an important role in overhead transmission line. In the early years, insulators were mostly used in power poles. Gradually, they developed into a kind of dial-shaped insulator hanging at one end of the high type high-voltage wire connecting tower. The purpose of insulators is to increase the creepage distance. Insulators should not fail due to various electromechanical stresses caused by changes in the environment and electrical load conditions. Otherwise, insulators will not play a significant role and will damage the service life of the entire line.
