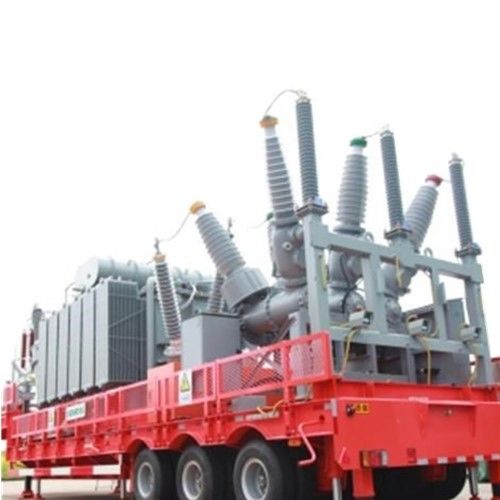

Power Transformer Mobile Substation 69kv 63mva With Iron Core CE Certification

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : According to client's request. 7.5mva 33kv semi-trailer transformer substation 11/0.4kv Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 10 Set/Sets per Year 7.5mva 33kv semi-trailer transformer substation 11/0.4kv
Place of Origin: China Brand Name: DINGLI
Model Number: Mobile substation

Detail Information

Certification: ISO9001/CE Material: Copper
Type: Three Phase Model Number:: SFZ9 SFZ10 SFZ11
Rated Voltage: Electronic Usage: Electricity Transmission Project
Product Name: 69kv 63mva Power Transformer Mobile Substation With Iron Core Rated Capacity: 63MVA
Output Voltage:: 33kv 11kv Retated Voltage: 69 Kv
Frequency:: 50/60Hz Type:: Three Phase
Standard:: ANSI C57.12
High Light:

portable substation

,

gis ais substation

Product Description

Power Transformer Mobile Substation 69kv 63mva With Iron Core CE Certification

Power Transformer Mobile Substation 69kv 63mva With Iron Core CE Certification 0

Total Solution for the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation

and modular substation·Distribution network·Electricity Maintenance·Electricity investment·

Telecom tower and accessories

Quick Detail:

69kv 63mva Power Transformer Mobile Substation with Iron Core

Product Description

220kv,110kv and 66kv low loss series transformer if our independently developed new generation of transformer on the basis of absorption of domestic and foreign advanced technology,which features low local discharge ,low loss,low noise,high reliability ,strong protection against abrupt short circuit,its excellent performence has been recognized ny wide users and high appeaised by experts.the full sealed suspending cover free product sell well nationwide.

Amount of local discharge :the apparent discharge amount under 1.5 times if rated voltage is less than 80pc.

Noise:product of 63mva and below is lower than 58db(an)

Power loss:no-load loss is 30% lower than that of IEC stanard.

Reliability:all in service product have no damage or oil leakage occurred;

Short circuit withstanding :model SFZ11-50000/132 smoothly passed the short circuit withstanding test of the national transformer quality supervision and inspection center and also passed holland KEMA quality control systom.

Main Technical Parameters for 66KV level S(F)Z9,S(F)Z10,S(F)Z11 Series three-phase on-load oil-immeresd power transformer
Rated
Power
(kva)
High
Voltage
(kv)
H.V.Tap
range
Low
Voltage
(kv)
Connection
symbol
Short
Circuit
Impendence
(%)
No-load loss(KW) On-load loss(KW) No load
current
(%)
S9 S10 S11 S9 S10 S11
6300 63
66
69
±8x1.25% 6.3
6.6
10.5
11
YNd11 9 9.5 9.4 8.25 36 34 34 0.63
8000 11.4 11.2 9.83 42.8 40.4 40.4 0.63
10000 13.5 13.1 11.6 50.4 47.6 47.6 0.75
12500 17.2 15.4 13.6 59.9 56.5 56.5 0.53
16000 20.6 18.5 16.3 73.53 69.5 69.5 0.49
20000 24.3 21.8 19.2 89.1 84.2 84.2 0.49
25000 28.6 25.6 22.6 105.3 99.5 99.5 0.42
31500 33.9 30.4 26.8 126.9 120 120 0.42
40000 40.4 36.2 31.9 148.5 140.3 140.3 0.39
50000 47.8 42.6 38.6 184.5 174.3 174.3 0.39
63000 56.3 50.4 44.4 222.3 210 210 0.39

Power Transformer Mobile Substation 69kv 63mva With Iron Core CE Certification 1Power Transformer Mobile Substation 69kv 63mva With Iron Core CE Certification 2

Our Services

1. We offer the best solution and products to fulfill the buyers' requirments.
2. We can arrange technicians to install the equipments and train your staff on site.
3. Anytime, we provide considerate technical consultation.
4. Prompt reply for your inquiry and feedback.

Packaging

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.

Power Transformer Mobile Substation 69kv 63mva With Iron Core CE Certification 3

1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

Power Transformer Mobile Substation 69kv 63mva With Iron Core CE Certification 4

Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.

2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

3. After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.

Power Transformer Mobile Substation 69kv 63mva With Iron Core CE Certification 5

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

Power Transformer Mobile Substation 69kv 63mva With Iron Core CE Certification 6

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.

Power Transformer Mobile Substation 69kv 63mva With Iron Core CE Certification 7

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.

Package

Set-wisely packing or member-wisely packing as per client's requirements.
