400KVA 630KVA 10kV 0.4kV Mobile Transformer Substation Metal - Clad

Product Description





Total Solution for the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation

and modular substation·Distribution network·Electricity Maintenance·Electricity investment·

Telecom tower and accessories

Product Details

1.Rating: Rated voltage: HV equipment 10KV and 12KV. LV equipment 0.4 KV.Rated current :

HV equipment 630A LV equipment 1500A.

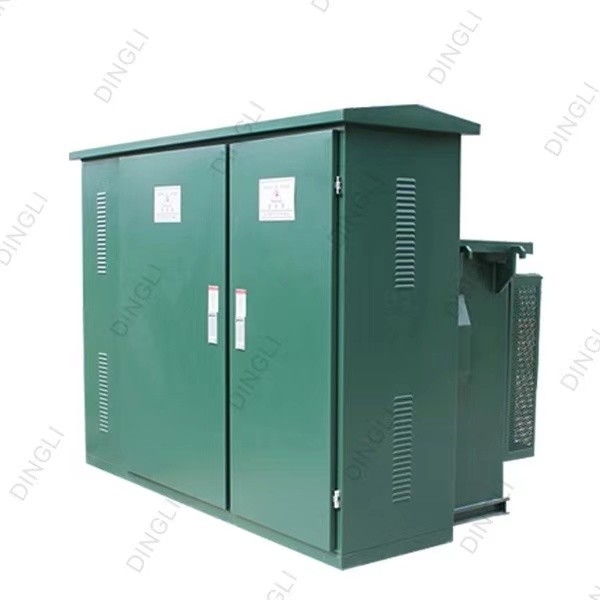

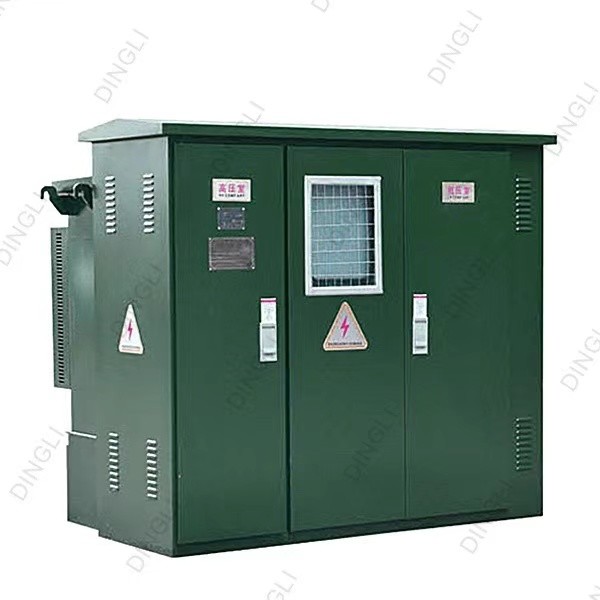

2. Application: YB27 series substation is American type combined substation with the function of high

voltage control protect, power transformation and distribution.Usually used in urban and rural power

distribution system .The high voltage loadswitch and high voltage fuse of this product are installed in

the oil of thetransformer. with the two structure: in same case with the transformer and indifferent case

with transformer. It can be used in high-rise buildings. building inurban and rural areas,

residential communities ,high-tech development areas,small and medium-size factories,

mining areas, oil fields, temporary constructionsites, and other premises.

3.Standard: IEC1330

Technical parameter



Rated capacity (kVA)	The rated voltage		Voltage regulating range (%)	Connection group label	No-load current (%)	Loss (W)
	High Voltage (KV)	Low voltage (KV)				no-load			load
					S9/S10/S11	S9	S10	S11	S9/(S10.S11)
30	6 6.3 10	0.4 (0.69)	卤5 (卤2脳25)	Yyn0 |Dyn11	2.2/2	130			600
50					2/.8	170			870
63					1.9/1.5	200			1040
80					1.7/1.2	250			1250
100					1.6/1.1	290			1500
125					1.5/1	340	270		1800
160					1.4/1	400	310		2200
200					1.4/0.8	480	375		2600
250					1.2/0.8	560	455	400	3050/3000
315					1.1/0.7	670	540	475	3650/3600
400					1/0.7	800	650	570	4300/4200
500					1/0.6	960	775	680	5100/5000
630					0.9/0.6	1200	920	800	6200/6000
800					0.8/0.6	1400	1120	980	7500/7400
1000					0.7/0.5	1700	1320	1150	10300/9860
1250					0.6/0.5	1950	1560	1360	12800/12000
1600					0.6/0.5	2400	1880	1640	14500/14000



The Use Of Conditions

1.Ambient air temperature:-30℃-+40℃

2.Altitude: 1000m

3.Wind speed:34m/s 700pa

4.Relative humidity: Daily average relative humidity<95%.Monthly average relative humidity<95%.

5.Installation inclination: grade 8

6.Applicable in the places without corrosive and flammable gas Note: Customized products are available.
