Intelligentized Substation Switchgear Energy Saver Lower Voltage GGD Serie

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : In standard export packages Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000000 Piece/Pieces per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,SGS,CCC,KEMA,TUV Model Number: Ai-GDD,GCK,GCS,KYN,P/V-12

Detail Information

Rated Voltage: 690V,1000V Rated Frequency: 50/60 Hz
Protection Degree: IP54 Standard: IEC 60439-1
Brand Name: CHINT, CHNT
High Light:

power distribution switchgear

,

metal enclosed switchgear

Product Description

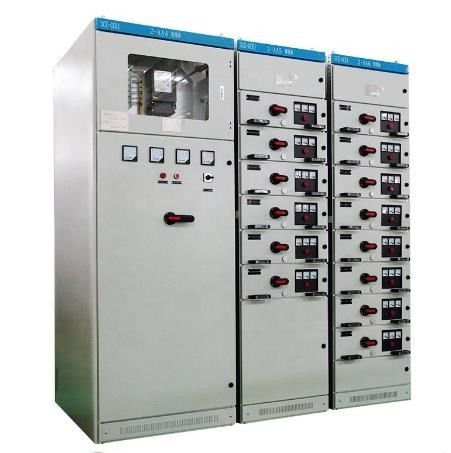

Intelligentized Substation Switchgear Energy Saver Lower Voltage GGD Serie



Intelligentized Substation Switchgear Energy Saver Lower Voltage GGD Serie 0

Total Solution for the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation

and modular substation·Distribution network·Electricity Maintenance·Electricity investment·

Telecom tower and accessories

Quick Detail:

Intelligentized Electric Power Distribution Switchgear Energy Saver Lower Voltage Air Gas Insulated Switchgear GGD Series








Energy-Saving of GGD/Gck/Gcs/Mns Series Switchgear Used in distribution System


Engaged in manufacturing energy-saving and environmental-protecting products, Ai Power developed series of high qualified switchgear, which include P/V-12 series switchgear, KYN series switchgear, GGD, GCK, GCS, MNS switchgear, SEN Plus switchgear, MD190 and Safering gas insulated switchgear. All the products are manufactured with the advanced technologies and equipment from abroad. Our switchgear have passed the type test by the State High Voltage Apparatus Quality Supervision and Examination Center, and got the China Compulsory Certifications. All the products are universally used in distribution system of national grid, infrastructure projects, transportation construction and residential areas, etc.



GGD, GCK, GCS, MNS series switchgears

Structure Feature

1. High generality

2. Separate compartments: functional compartment, busbar compartment, cable compartment

3. Compacted designing, space saving

4. Modular design, easily assembly

5. Anti-flaming material, high safety and reliability

6. Protection degree of enclosure: max. IP40

Specification

Rated insulate voltage
660V
Rated operation voltage
380V
Rated current of main busbars
up to 6300A
Rated current of distribution busbars
up to 2000A
Rated short time withstand current(1s)
up to 100kA
Rated peak withstand current
up to 220kA



KYN, P/V-12 series switchgears

Structure Feature

1. Metal-clad enclosed switchgear, with handcart.

2. Air insulation.

3. Separate earthing, 4 separate compartments: busbar compartment, handcart compartment, cable compartment, meters compartment.

4. Modular structure, plug electric connection.

5. Perfect and reliable interlocks and pressure relief facilities.

6. Intelligentized system, less maintaince.

Specification

Rated voltage
3.6, 7.2, 12KV
Rated insulation level

Rated short time withstand voltage(1min)
42kV
Rated impulse withstand voltage(peak)
75kV
Rated frequency
50/60 Hz
Rated current of main busbars
Up to 4000A
Rated current of distribution busbars
Up to 4000A
Protection degree
IP4X for enclosure, IP2X for circuit breaker compartment



Safering series switchgears



Structure Feature
1. Applicable standards: China National Standards and IEC Standards
2. SF6 insulated RMU, fully insulated busbars and cable terminals
3. Maintenance-free, suitable for out-door circumstance
4. Reliable interlocks
5. Stainless steel compartment for SF6
6. Protection degree: IP67
7. Explosion-protection devices



Our Services

1. We offer the best solution and products to fulfill the buyers' requirments.

2. We can arrange technicians to install the equipments and train your staff on site.

3. Anytime, we provide considerate technical consultation.

4. Prompt reply for your inquiry and feedback.



Packaging



1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.



Intelligentized Substation Switchgear Energy Saver Lower Voltage GGD Serie 3



1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

Intelligentized Substation Switchgear Energy Saver Lower Voltage GGD Serie 4



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.



2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.



3. After-Sale Service



Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.



Intelligentized Substation Switchgear Energy Saver Lower Voltage GGD Serie 5



Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

Intelligentized Substation Switchgear Energy Saver Lower Voltage GGD Serie 6



Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.

Intelligentized Substation Switchgear Energy Saver Lower Voltage GGD Serie 7



Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.



Package

Set-wisely packing or member-wisely packing as per client's requirements.
