12 KV 50/60Hz High Standard Electrical Substation Switchgear Low Voltage Withdrawble

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : In standard export packages Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 400 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001 Model Number: XGN-12

Detail Information

Place Of Origin: China Brand Name: DINGLI
Useage: Substation Color: Steel
Gradation Of Earthquake Damage: ≤ Level 8 Rated Voltage: 12KV
Material: Stainless Steel Rated Frequency: 50/60Hz
Altitude: ≤2000m Certificate: ISO
High Light:

12 KV Electrical Substation Switchgear

,

Withdrawble Electrical Substation Switchgear

,

12 KV insulated switchgear

Product Description

12 KV High Standard Electrical Substation Low Voltage Withdrawble Switchgear

Product details

1. Description

This product is our company introduced advanced technology and a new generation of high voltage electrical

products in accordance with the requirements of domestic rural and urban network renovation,designed and

developed. The strict type test and long-term operation of the examination, the technical performance indicators

all meet IECstanderds

2. Environmental Conditions

(1) Suitable Altitude: ≤2000mSuitable

(2) Temperature: -40℃ ~ +55℃Relative

(3) Humidity: Daily mean ≤95%, monthly mean ≤90%

(4) Gradation of Earthquake Damage: ≤ Level 8

3. Technical Parameter

Item Unit Load Switch Combined electrical cabinet Circuit breaker cabinet
Rated voltage KV 12 12 12
Rated frequency HZ 50/60 50/60 50/60
Rated current A
Main bus A 630 630
Branch bus A 125 630
Rated insulation level KV
Power frequency withstand voltage (interphase and relative) KV 42 42 48
Power frequency withstand voltage (interphase and relative) KV 48 42 48
Pov/er frequency rolling (control and auxiliary circuit) KV 2 2 2
Lightning impulse withstand voltage (interphase and relative) KV 75 75 75
Lightning impulse withstand voltage (between fractures) KV 85 85 85
Rated short-time withstand current KA
Main circuit KA 20/3s 25/,2S
Ground loop KA 20/25 25/.3S
Rated peak withstand current KA 50 63
Rated short circuit closing current KA 50 80 63
Rated short-circuit breaking current KA 31.5 25
Rated transfer current A 1700
Rated active load breaking current A 630
Rated closed-loop breaking current A 630 630
Rated cable charging breaking current A 10 15
Protection level
Mechanical life Times
Load switch   5000 5000
Grounding switch   2000 2000

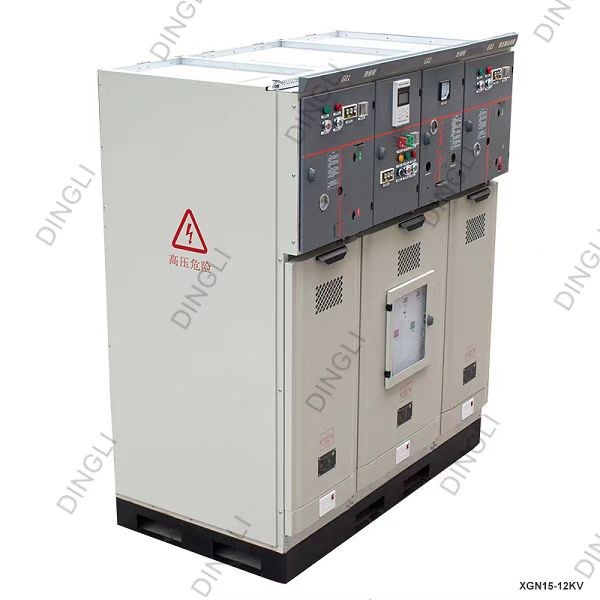

12 KV 50/60Hz High Standard Electrical Substation Switchgear Low Voltage Withdrawble 0

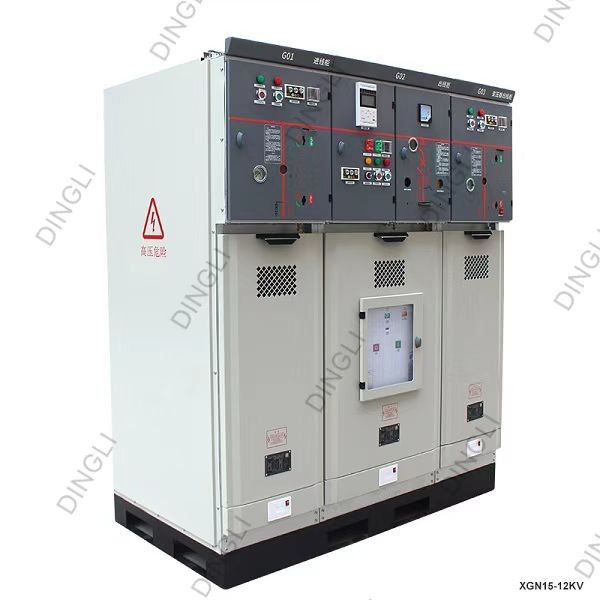

12 KV 50/60Hz High Standard Electrical Substation Switchgear Low Voltage Withdrawble 1

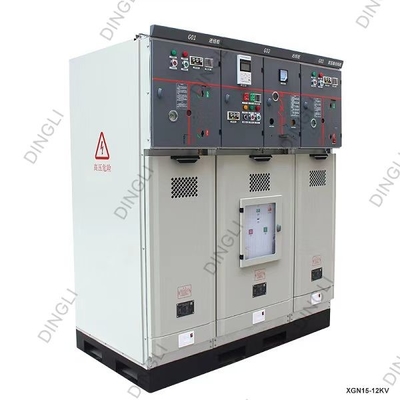

12 KV 50/60Hz High Standard Electrical Substation Switchgear Low Voltage Withdrawble 2

12 KV 50/60Hz High Standard Electrical Substation Switchgear Low Voltage Withdrawble 3

12 KV 50/60Hz High Standard Electrical Substation Switchgear Low Voltage Withdrawble 4
