6.6KV 12KV Electric Substation Switchgear 630A For Power Transmission

Product Description

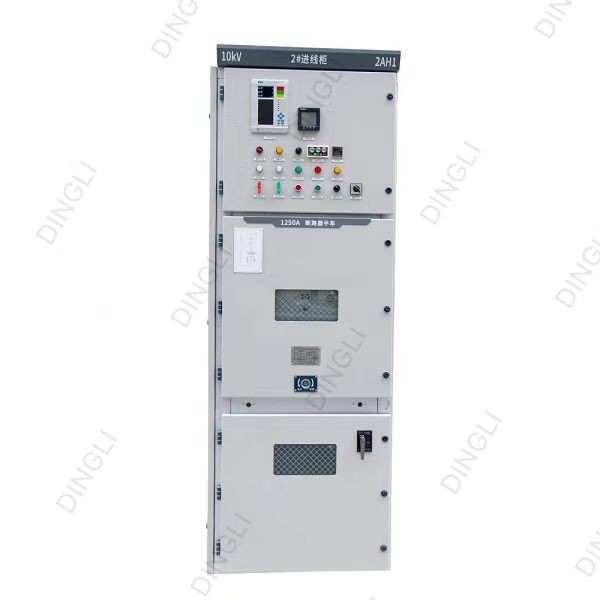

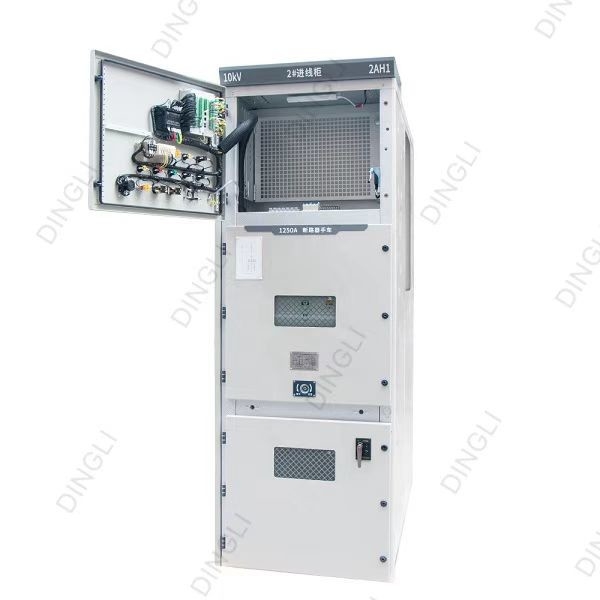

6.6KV 12KV High Voltage Electric Substation Power Equipment Switchgear

Product details

Product Parameters

1. Overview

The switchgear with high breaking capacity and low values of intercepting VS1 vacuum breaker or VD4 vacuum

circuit breaker, reliably prevent wrong operation function, prevent load push, prevent the shake handshandle together

when grounding switch is closed circuit breaker, prevent charged, wrongly grounding switch, prevent charged into every

"five" interlock function, is a kind of superior performance of the power distribution device.



2. Implementation standards

• GB 3906 3~36KV/AC metal-enclosed switchgear

• GB/T11022 Common technical requirements for high voltage switchgear and control equipment standards

• DL/T404 Indoor AC high voltage switch ordering technical conditions



3. Technical parameters

Items	Units	Data
The rated voltage	KV	12
Rated insulation level Power frequency withstand voltage	KV	Alternate with and to the ground:42;Fracture:48
Rated insulation level Lightning shock	KV	Alternate with and to the ground:75;Fracture:85
Rated frequency	Hz	50
Rated current	A	630,1250,,1600,2000,2500,3150
Rated current of main bus	A	630,1250,,1600,2000,2500,3150
Rated short-circuit breaking current	KA	25,31.5,40
Rated short-time withstand current of main circuit	KA/4S	16,20,25,31,5,40
Ground circuit rated short-time withstand current	KA/2S	13.9,17.4,21.8,27.4,34.8
Rated peak withstand current	KA	40,50,63,80,100
Protection class		IP4X
