12KV High Voltage Switchgear Main Electrical Switch Board For Indoor Substation

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : In standard export packages Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 500 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001 Model Number: DL-KYN28A-12

Detail Information

Place Of Origin: China Brand Name: DINGLI
Useage: Substation Type: Switchgear
Phase: AC ,Three Phase Rated Frequency: 50Hz/60Hz
Rated Voltage: 6KV 12KV Rated Current: 630/1250/1600/2000/2500/3150A
Installation: Indoor Certificate: ISO9001,Type Test Report
High Light:

12KV High Voltage Switchgear

,

Indoor Substation High Voltage Switchgear

,

12KV hv switch gear

Product Description

High Voltage Switchgear Main Electrical Switch Board For Indoor Substation Equipment

Product details

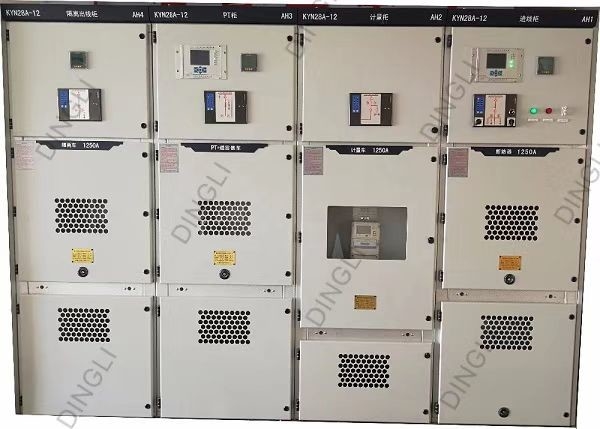

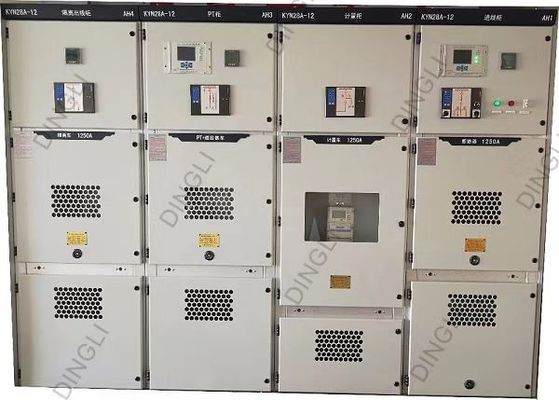

KYN28A-12 indoor AC metal-clad withdrawable switchgear:DL-KYN28A-12

The KYN28A-12 indoor AC metal-clad withdrawable switchgear is a complete set of power distribution

devices of 3.6kV ~ 12kV three-phase AC 50Hz single bus or single bus sectional system.
KYN28A-12 is mainly used in power plants, small- and mediumsized power generators, industrial and

mining enterprises, and secondary substations of power system for power receiving, power transmission,

and startup of large-sized high-voltage motor in order to implement control, protection, and monitor.

Working Environment

1. Temperature:
Not over than +40, Not less than -5.

Equal Temperature35.
2. Altitude: not over than 1000M
3. Relative Humidity: ≤90% (+25)
4. Withstand Earthquake magnitude: 8 degree
5. Without dust, fire, Corrosion or other dangerous items around.

Applied to Standards

IEC62271-200
IEC60694-2002
IEC62271-100
GB763
GB1984-2003
GB1985-2004
GB3309
GB3906
GB/T11022
DLT404-1997

12KV High Voltage Switchgear Main Electrical Switch Board For Indoor Substation 0

12KV High Voltage Switchgear Main Electrical Switch Board For Indoor Substation 1

12KV High Voltage Switchgear Main Electrical Switch Board For Indoor Substation 2

12KV High Voltage Switchgear Main Electrical Switch Board For Indoor Substation 3

12KV High Voltage Switchgear Main Electrical Switch Board For Indoor Substation 4

Specification

Item

unit
value
Rated Frequency

Hz
50/60
Rated voltage




kV
12


Rated insulation level
1min Power Frequency Withstand Voltage
42
lightning impulse withsdand voltage
75
Main Busbar Rated Current
A
630,1250,1600,2000,2500,3150
Sub-Busbar Rated Current
A
630,1250,1600,2000,2500,3150*
4S Thermal Stability Currenct (Effective Data)
kA
16,20,25,31.5,40
Rated Dynamic Stability Currenct (Peak Value)
40,50,63,80,100
Protection Level
enclosure:IP4X, CB Compartment open:IP2X
