SF6 Customized Gas Insulated Ring Main Unit Switchgear Medium Voltage

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : In standard export packages Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 100 Unit/Units per Week
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001 Model Number: DLGN

Detail Information

Place Of Origin: China Brand Name: DINGLI
Useage: Substation Color: Steel
Application: Electric Power Transmission Insulating Media: SF6 Gas
Material: Steel Rated Voltage: 24 KV
Altitude: ≤1000m Standard: IEC62271
High Light:

SF6 Ring Main Unit Switchgear

,

Medium Voltage Ring Main Unit Switchgear

,

SF6 rmu switchgear

Product Description

SF6 Customized Medium Voltage Gas Insulated Ring Main Unit Switchgear

Product details

SF6 Customized Gas Insulated Ring Main Unit Switchgear Medium Voltage 0

SF6 Customized Gas Insulated Ring Main Unit Switchgear Medium Voltage 1

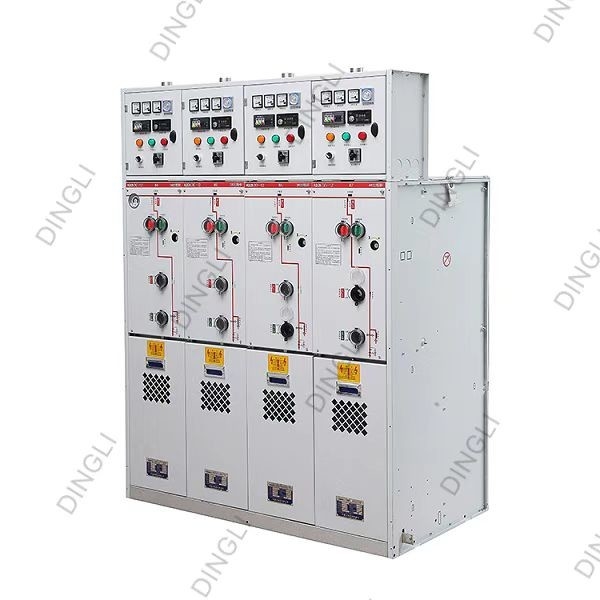

SF6 Customized Gas Insulated Ring Main Unit Switchgear Medium Voltage 2

SF6 Customized Gas Insulated Ring Main Unit Switchgear Medium Voltage 3

Specification

Description

Unit

LBS unit

Switch-fuse unit

VCB unit

Rated voltage

kV

24

24

24

Power frequency withstand voltage (1min)

Phase to phase/earth

kV

50

50

50

Across the isolating distance

kV

60

60

60

Impulse withstand voltage

Phase to phase/earth

kV

125

125

125

Across the isolating distance

kV

145

145

145

Rated frequency

Hz

50, 60

50, 60

50, 60

Rated current

A

630

125

630

Rated short circuit breaking current

kA



31.5

20

Rated short time withstand current

kA/s

20/3



20/3

Rated peak withstand current

kA

50



50

Rated short circuit making current

kA

50

80

50

Rated transfer current

A



1400



Rated active load breaking current

A

630





Rated closed loop breaking current

A

630





Mechanical lifetime

Ops.

5000

5000

10000

Annual leakage rate

<0.02%

1.ABOUT US

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after

more than 50 years’development, DINGLI now is group company dedicated on total solutions for

electricity projects covering survey, design, manufacture, complete equipment supply, construction,

operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid

construction, participated in all UHV construction projects and made an outstanding contribution to

UHV transmission lines of China.

SF6 Customized Gas Insulated Ring Main Unit Switchgear Medium Voltage 4



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador,

Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers.

We have got a number of international certificates, such as ISO certificate covering design, equipment and construction,

AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate,

Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is

more than 30% of the company's main revenue. We have provided high-quality products and services to more than

100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong

technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and

won their recognition.



2. International Certificate
ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

3. After-Sale Service

Technical Support
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers.

We have special pre-sales engineer to work with customer at early stage of the project.

SF6 Customized Gas Insulated Ring Main Unit Switchgear Medium Voltage 5



Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia,

Peru, Ecuador, Senegal, which will make a fast response for customer.

SF6 Customized Gas Insulated Ring Main Unit Switchgear Medium Voltage 6



Warehouse and Emergency Supply
Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production

line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with

common use spare parts.

SF6 Customized Gas Insulated Ring Main Unit Switchgear Medium Voltage 7



Design and Consultant
Supported by both domestic engineering company and Quito tower design center, could provide technical

consultant and design service within our scope of work. For Quito tower design center, most of the engineers

are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will

reduce the weight, and avoid the replacement on the profiles to save the working time.

Package
Set-wisely packing or member-wisely packing as per client's requirements.





Global-network map

China

Henan DINGLI Pole and Tower Co., ltd.

Henan Zhongdingxin Detection Technology Co.,ltd.

Henan Dadi Electricity Engineering Co.,ltd.

Henan DINGLI Power Equipment Co.,ltd

Henan DINGLI Power Construction Co., ltd

Huading Concrete Pole Co., Ltd

Xingjiang Huili Steel Tower Co., Ltd.

Bazhou Dingli Tower Co., Ltd.

Shanghai Sales and Service Center

Beijing Sales and Service Center



Cambodia

Cambodia Phnom Penh Factory



Spain

Madrid (Spain) Sales and Service Center



Dakar, Senegal



Senegal (Dakar) Sales and Service Center

Senegal (Dakar) Spare Part Warehouse



Quito, Ecuador



Quito (Ecuador) Steel Tower Design Center (ASTM Standard)

Quito (Ecuador) Steel Tower Emergency Production Line

Quito (Ecuador) Raw Material and Spare Part Warehouse



Lima, Peru

Lima (Peru) Sales and Service Center



Cochabamba, Bolivia

Cochabamba (Bolivia) Raw Material and Spare Part Warehouse



Santiago, Chile

Santiago (Chile) Sales and Service Center



Jakarta, Indonesia

Jakarta (Indonesia) Sales and Service Center

SF6 Customized Gas Insulated Ring Main Unit Switchgear Medium Voltage 8
