Product Description

33 KV 20kV 22kV Electrical High Voltage Vacuum Circuit Breaker Substation Switchgear

Product details

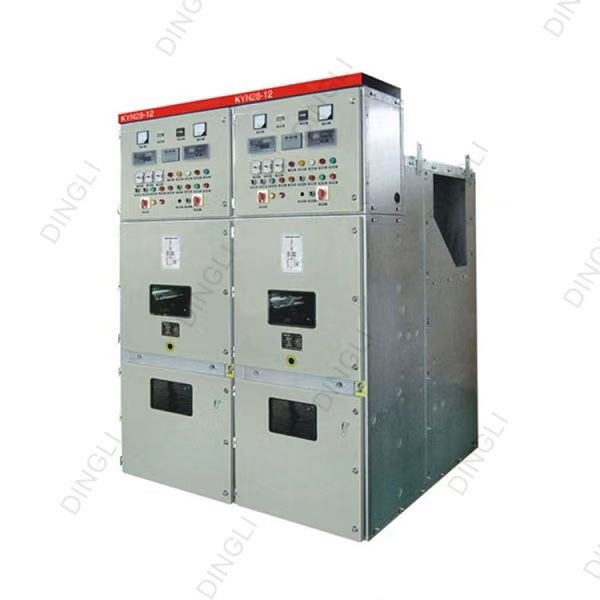

KYN28-12 Mid-removable Switchgear

KYN28-12 removable AC metal-clad switchgear (short for panel as below) is a new product. It will be a substitute for old fashioned metal-enclosed switchgear, such as KYN-12, JYN-12, GFC-12, etc. The panel applies to 3.6~12kV 3 phase AC 50Hz network for receiving and distributing power energy and also for control, monitor and protection. It accords with standard of IEC62271-200, IEC60694, GB3906.

Technical Data

Item

Unit

Value

Rated Insulation Level

1 Min Power Frequency (P2E)

KV

42/48

Lighting Impulse withstand voltage (P2E)

KV

75/85

Rated Voltage

KV

12

Rated Frequency

Hz

50/60

Rated Current

A

630~4000

Main Busbar Rated Current

A

1250/1600/2000/2500/4000

Branch Busbar Rated Current

A

630/1250/1600/2000/2500/3150

Rated Short time Withstand Current(4S)

KA

16/20/25/31.5/40/50

Rated Peak Withstand Current

KA

40/50/63/80/100/125

Protection Level



Enclosure IP4X

Outline Dimension(Width*Depth*Height)

mm

650(800/1000)*1500(1670/1300/2000)*2200

Weight

kg

800~1200
