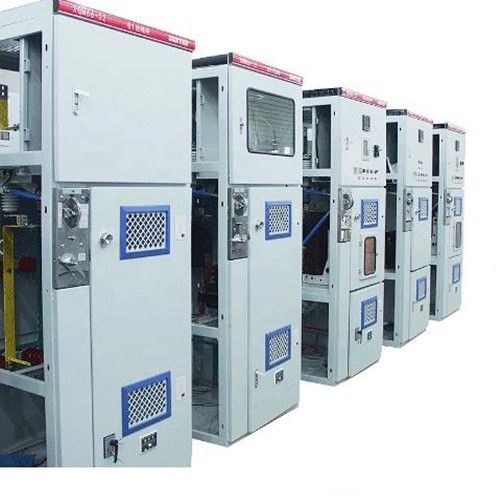

15kV 22kv IP54 Outdoor Type Switchgear RMU GIS Gas Insulated Switchgear

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : In standard export packages Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000000 Piece/Pieces per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,SGS,CCC,KEMA,TUV Model Number: Ai-GDD,GCK,GCS,KYN,P/V-12

Detail Information

Rated Voltage: 380 V Rated Frequency: 50/60 Hz
Protection Degree: IP54 Standard: IEC 60439-1
Materials: Aluminum-zinc Plate Rated Current / A: A 1000 B 600 (630) C 400
Application: Low Voltage Power Distribution System
High Light:

metal enclosed switchgear

,

gis gas insulated switchgear

Product Description

15kV 22kv IP54 Outdoor Type Switchgear RMU GIS Gas Insulated Switchgear

15kV 22kv IP54 Outdoor Type Switchgear RMU GIS Gas Insulated Switchgear 0

Total Solution for the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation

and modular substation·Distribution network·Electricity Maintenance·Electricity investment·

Telecom tower and accessories

Quick Detail:

11kV 15kV 22kv Switchgear Outdoor Type Switchgear SF6 ring main unit RMU GIS Gas Insulated Switchgear

Products Description

Item
Unit
Data
Rated voltage
KV
12
Rated current
A
630,1250,1600,2000,2500,3150,4000
Rated short-circuit current
KA
20,25,31.5,40,50,63
Rated peak withstand current
KA
50,63,80,100,125,160
Short-time withstand current(4s)
KA
20,25,31.5,40,50,63
Insulation: Power frequency/Lightning
KV
42/75
Protection class

IP4X
Optional circuit breakers

ZN63A(VS1), VD4, VBP, EV12 etc.
Operating mechanism

Spring mechanism; Permanent magnetic actuator
Operational power supply
V
DC:110,220; AC:110,220
Overall dimension(Width*Depth*Height)
mm
800(650,1000)x1500(1700)x2300
Weight
KG
800
15kV 22kv IP54 Outdoor Type Switchgear RMU GIS Gas Insulated Switchgear 1
15kV 22kv IP54 Outdoor Type Switchgear RMU GIS Gas Insulated Switchgear 2

Our Services

1. We offer the best solution and products to fulfill the buyers' requirments.
2. We can arrange technicians to install the equipments and train your staff on site.
3. Anytime, we provide considerate technical consultation.
4. Prompt reply for your inquiry and feedback.

Packaging

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.

15kV 22kv IP54 Outdoor Type Switchgear RMU GIS Gas Insulated Switchgear 3

1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

15kV 22kv IP54 Outdoor Type Switchgear RMU GIS Gas Insulated Switchgear 4



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.

2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

3. After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.

15kV 22kv IP54 Outdoor Type Switchgear RMU GIS Gas Insulated Switchgear 5

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

15kV 22kv IP54 Outdoor Type Switchgear RMU GIS Gas Insulated Switchgear 6

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.

15kV 22kv IP54 Outdoor Type Switchgear RMU GIS Gas Insulated Switchgear 7

Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.

Package

Set-wisely packing or member-wisely packing as per client's requirements.
