40.5kv Ring Main Unit Switchgear Cubicle Switchboard Three Phase Space Saving

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : In standard export packages Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000000 Piece/Pieces per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,SGS,CCC,KEMA,TUV Model Number: HXGN15

Detail Information

Rated Voltage: 40.5kV Standard: IEC62271-200 IEC62271-102 GB3906 GB1985
Rated Current / A: 630,1250,1600,2000,2500A Surface Treatment: Hot Dip Galvanized
Application: Indoor Altitude: ≤5000m
Insulating Medium: SF6
High Light:

power distribution switchgear

,

metal enclosed switchgear

Product Description

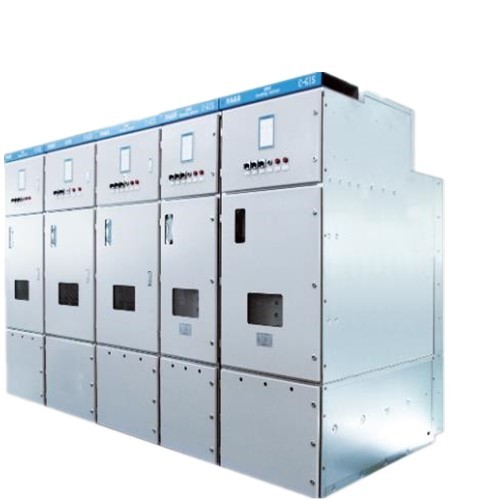

40.5kv Ring Main Unit Switchgear Cubicle Switchboard Three Phase Space Saving

40.5kv Ring Main Unit Switchgear Cubicle Switchboard Three Phase Space Saving 0

Total Solution for the field below:
Small hydro power station·Overhead transmission line·Substation,including mobile substation

and modular substation·Distribution network·Electricity Maintenance·Electricity investment·

Telecom tower and accessories

Quick Detail:

XGN17D-40.5 40.5kV SF6 Ring Main Unit Switchgear

Product Introduction
XGN17D-40.5 C-GIS(Cubicle Gas Insulated Switchgear)is a cubicle switchboard of 40.5kV three-phase AC 50Hz single bus and sectionalized single-bus system. The high-voltage components of each functional unit are installed in a sealed metal cabinet filled with low-pressure SF6 gas for insulation, so it can reliably be used under harsh conditions and greatly reduce the size and floor space of switchgear. C-GIS serves the function of control, protection and monitoring and is mainly used for power distribution of power plant substation, industrial and mining enterprises or under the conditions of high humidity (or condensation), high altitude, and pollution. C-GIS has an edge over conventional air-insulated switchgear in economy, feasibility, reliability and miniaturization.

XGN17D-40.5 C-GIS conforms to the standards of IIEC 62271-200, IEC 62271-102, IEC 62271-100, GB 3906, GB 1984, GB1985, etc. Its components are properly arranged, fully sealed, and extendable with various schemes, secure and reliable operation, and convenient on-site installation. It is new power distribution equipment incorporating advanced components and high-tech manufacturing.



Product Features
1. Small in size, less land occupied, one third to one fourth of the conventional air-insulated switchgear in size.

2. High-voltage components are fully sealed, free from external influences. It can be safely operated for a long time in hostile environments.

3. The primary equipment is maintenance-free with minimum maintenance workload and lowest maintenance cost.

4. The new vacuum circuit breaker as master switch is reliable in performance. The three-position switch incorporates disconnecting switch and earthing switch, serving three functions of connection, isolation and grounding. It enjoys simplified structure and higher reliability.

5. Modular design makes the parts of the same specification interchangeable. With the components of plug-type structure, on-site installation, extension and replacement do not involve SF6 gas problem handling.

6. The use of intelligent control and protection achieves automatic relay protection.

7. All high-voltage components are insulated and its housing is safe for contact.



Technical Parameters

Item Unit Parameter
Rated Voltage kV 40.5
Rated Frequency Hz 50
Rated Current A 630, 1250, 1600, 2000, 2500
Rated Insulation Level 1min Power Frequency Withstand Voltage kV Phase to Phase, Phase to Earth Primary Isolating Distance
95 118
Lightning Impulse Withstand Voltage 185 215

Rated Short-circuit Breaking Current (rms) kA 25, 31.5
Rated Short-circuit Making Current (Peak) kA 63,80
Rated Short-time Withstand Current kA 25,31.5
Rated Peak Withstand Current kA 63,80
Rated Duration of Short-circuit s 4
Rated Power Supply Voltage of Control Circuit V DC110,DC220,AC220
Protection Degree   IP65 / IP4X
Rated Pressure of SF6 Gas (Gauge Pressure at 20℃) MPa 0.04
Pressure of SF6 Gas Alarm MPa 0.02
SF6 Gas Annual Leakage Rate % ≤0.5
Our Services

1. We offer the best solution and products to fulfill the buyers' requirments.
2. We can arrange technicians to install the equipments and train your staff on site.
3. Anytime, we provide considerate technical consultation.
4. Prompt reply for your inquiry and feedback.

Packaging

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.

40.5kv Ring Main Unit Switchgear Cubicle Switchboard Three Phase Space Saving 1

1. About us

HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

40.5kv Ring Main Unit Switchgear Cubicle Switchboard Three Phase Space Saving 2



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.

2. International Certificate

ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.

3. After-Sale Service

Technical Support

Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.

40.5kv Ring Main Unit Switchgear Cubicle Switchboard Three Phase Space Saving 3

Site assistance

Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.

40.5kv Ring Main Unit Switchgear Cubicle Switchboard Three Phase Space Saving 4

Warehouse and Emergency Supply

Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.

40.5kv Ring Main Unit Switchgear Cubicle Switchboard Three Phase Space Saving 5



Design and Consultant

Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.

Package

Set-wisely packing or member-wisely packing as per client's requirements.

 Global-network map

China

Henan DINGLI Pole and Tower Co., ltd.

Henan Zhongdingxin Detection Technology Co.,ltd.

Henan Dadi Electricity Engineering Co.,ltd.

Henan DINGLI Power Equipment Co.,ltd

Henan DINGLI Power Construction Co., ltd

Huading Concrete Pole Co., Ltd

Xingjiang Huili Steel Tower Co., Ltd.

Bazhou Dingli Tower Co., Ltd.

Shanghai Sales and Service Center

Beijing Sales and Service Center

Cambodia

Cambodia Phnom Penh Factory

Spain

Madrid (Spain) Sales and Service Center

Dakar, Senegal

Senegal (Dakar) Sales and Service Center

Senegal (Dakar) Spare Part Warehouse

Quito, Ecuador

Quito (Ecuador) Steel Tower Design Center (ASTM Standard)

Quito (Ecuador) Steel Tower Emergency Production Line

Quito (Ecuador) Raw Material and Spare Part Warehouse

Lima, Peru

Lima (Peru) Sales and Service Center

Cochabamba, Bolivia

Cochabamba (Bolivia) Raw Material and Spare Part Warehouse

Santiago, Chile

Santiago (Chile) Sales and Service Center

Jakarta, Indonesia

Jakarta (Indonesia) Sales and Service Center



40.5kv Ring Main Unit Switchgear Cubicle Switchboard Three Phase Space Saving 6





Customer Visit

Clients of Bolivia visited Dingli for factory inspection, we talked about the key issues faced right now, and found ways to solve it together. They set a high value on this cooperation.





Customers and Partners of Dingli

40.5kv Ring Main Unit Switchgear Cubicle Switchboard Three Phase Space Saving 7

40.5kv Ring Main Unit Switchgear Cubicle Switchboard Three Phase Space Saving 8
