Automatic Condition Monitoring And Evaluation System For Transmission Line

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Sea worthy : professional packing, plastic bag, carton, pallets if clients needed. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 20000 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: CCC, CE, CQC, RoHS Model Number: ZHY880A

Detail Information

Product Name:: Video Online Monitoring Device Application Background: Real-time Video Browsing
System Highlights: Sound And Light Caveat Monitoring Host: 16 Million Pixels
Horizontal: 0 °~ 360 ° Adjustable Vertical: -85° ~ 20 ° Adjustable
High Light:

transmission line monitoring system

,

video monitoring system

Product Description

Automatic Condition Monitoring And Evaluation System For Transmission Line



Quick Detail: Transmission line condition monitoring and evaluation system video online

monitoring device



Application Background

  • Intelligent monitoring device
  • Short video recording
  • HD image surveillance
  • Real-time video browsing
  • Support external sensor access
  • Timed/manual capture of live image uploads



Part  One The video monitoring system of transmission line

Transmission line channel visualization remote patrol system

  • Front end system
  • Networking
  • Master station system

Automatic Condition Monitoring And Evaluation System For Transmission Line 0















































The current situation and existing problems of traditional line visualization

Automatic Condition Monitoring And Evaluation System For Transmission Line 1













































System highlights

  • Sound and light caveat
  • Wire temperature measurement
  • "Three-span" channel visualization
  • Mobile interconnected
  • Advanced management features
  • Diversified monitor
  • Integrated monitoring

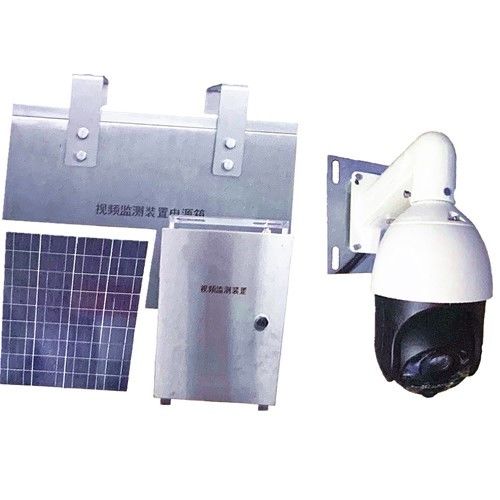

ZHY880A video online monitoring device

  • Meet the requirements of Enterprise Interface B of Grid Video Surveillance
  • System and Interface, and support access to intranet unified video platform
  • Dynamically adjust resolution and frame rate for dynamic adjustment of backhaul
  • With night vision function, it can meet the needs of night monitoring. Whether night vision is
  • turned on can be controlled by remote monitoring
  • and interface with unified video platform.
  • With 24-hour continuous recording function, the recording adopts the loop coverage mode
  • (that is, the automatic recording of the early recording files after the storage space is full),
  • the storage space can meet the historical recording requirements of more than 30 days.
  • The master station system can retrieve and record the time interval of the calling front end.
  • PTZ supports up, down, left and right movement and step, speed and other controls,
  • lens support zoom control
  • Support NTP protocol timing

Automatic Condition Monitoring And Evaluation System For Transmission Line 2



















































ZHY860 Intelligent visual monitoring device

Automatic Condition Monitoring And Evaluation System For Transmission Line 3











































Intelligent visual monitoring host

  • 16 million pixels
  • Real-time video browsing
  • Timed return photo
  • Front-end device picture,intelligent analysis,abnormal picture active,upload background
  • Remote parameter setting, OTA upgrade
  • The photo interval can be set from 1-60 minutes.
  • Automatic cruise
  • GPS positioning
  • Set internal temperature display
  • Angle adjustable: horizontal 0 °
  • ~ 360 ° adjustable, vertical -85° ~ 20 ° adjustable
  • 10 preset positions: can realize all-round visualization of line channels, towers, insulators, etc.

Automatic Condition Monitoring And Evaluation System For Transmission Line 4



































































































The main function

Front-end image intelligent recognition

The intelligent analysis and processing of the collected images identifies large-scale machines such

as hanging towers, cranes, excavators, cement pump trucks, bulldozers, etc., which are likely to cause

external damage in the line channels, and the hidden danger images are actively uploaded to the

background server. Improve hidden danger identification and line inspection efficiency.

PTZ control

Combined with warning position and video browsing to achieve full-time on-site inspection of

fixed-point timing

Real-time video browsing and recording

In view of the frequent occurrence of accidents in special transmission channels such as the

“three-span” section, real-time monitoring and tracking in the event of an emergency, timely

monitoring of the situation, timely recording, and preservation of evidence

Other functions

Timed photo, standard interface, GPS positioning, battery voltage detection / internal temperature

detection.

Automatic Condition Monitoring And Evaluation System For Transmission Line 5





































































































Networking scheme

In this scheme, the monitoring terminal transmits the line image data to the background server through

the enterprise private line telecommunication network, through the enterprise gateway and the firewall,

and the user views the line channel situation in the system software platform, and can view the image

through the mobile phone WeChat, APP software. Data, which is convenient for monitoring center personnel

to monitor the line situation in real time.

Automatic Condition Monitoring And Evaluation System For Transmission Line 6

































































Information extranet solution

In this solution, the monitoring terminal transmits the line image data to the information external network

through the VPDN private network through the enterprise gateway and the firewall, and the user can view

the line condition in the system software platform, and in the case that the information external network

opens the Internet exit, Can also achieve image data viewing via mobile phone WeChat, APP software.

Power Supply System

A variety of power supply methods can be combined to provide power supply throughout the day,
providing reliable power supply for data acquisition systems and
monitoring systems in the tower.

Data Acquisition and Analysis System

High-performance acquisition host for data acquisition front-end, using sensors to analyzes and collects

various surrounding data regularly (humidity, temperature, wind direction, etc.) through pre-set procedures

sequence . The video probe can continuously monitor the surrounding environment in real time, and

the foreground system processes the collected data and transmit it to the background control center

in time through wired or wireless mode (GSM/GPRS). /CDMA) .

Display diagram of transmission line condition monitoring

Automatic Condition Monitoring And Evaluation System For Transmission Line 7



Automatic Condition Monitoring And Evaluation System For Transmission Line 8
