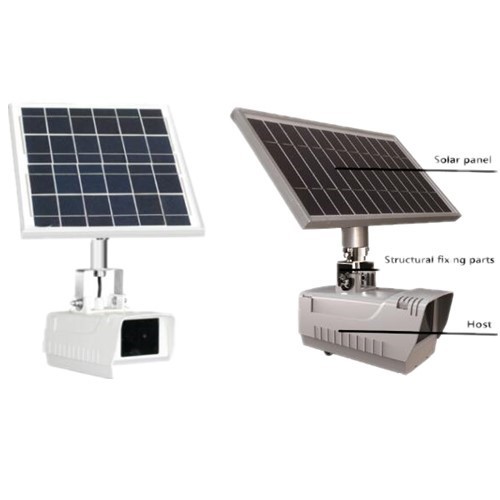

ST2303B Online Monitoring System Support Gps Automatic Picture Collection

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Sea worthy : professional packing, plastic bag, carton, pallets if clients needed. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 20000 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: CCC, CE, CQC, RoHS Model Number: ST2303B

Detail Information

Product Name:: Device For Measuring Contamination Of Insulator Surface Special Features:: Waterproof / Weatherproof
Camera:: 8 Milliion Pixels Positioning Function:: GPS
Service Life:: More Than 5 Years Weight:: 4.5KG
Solar Panel Area:: About 0.1㎡ (340mm*290mm) Battery Capacity:: 10AH
Wireless Communication:: 2G/3G/4G WIFI Bracket Material:: 304 Stainless Steel
Diversity:: Suitable For Kinds Of Pole And Tower Protective Grade:: IP65
High Light:

online condition monitoring system

,

transmission line monitoring system

Product Description

ST2303B Online Monitoring System Support Gps Automatic Picture Collection



Quick Detail:Electricity Maintenance Transmission line Intelligent hardware monitoring device

ST2303B Key Features

Take photos

Micro video

Real-time video

System advantages:

Wireless communication: Telecom, Unicom, Mobile 2G/3G/4G wireless transmission, Operators can be selected according to local conditions .

Mobile terminal management:Through Wechat platform, it can achieve the management for monitoring targets through mobile phone.

High definition: 8 Million pixels,the minimum image resolution is up to 3200*2400

Durable: Continuous power supply will be for more than 30 days, service life will be more than 5 years.

Light: Weight(including the solar panel and bracket) is about 4.5KG, it is easy to install and labor saving.

Small Size: One-tenth of the original video monitoring device.

Military protection grade: IP65 industrial protection grade

Solar-powered: Can be used in the circumstance of no power supply.

GPS positioning: Find the fault point accurately

Cost-saving: Intelligent analysis,filtering out 95% trouble-free pictures, saving data traffic.

Applications

Electrical Power,Railway,Foreign matter causes short circuit.,Insulator discharging

Fast growing vegetation

Working around the base of the tower

Wildfire warning

Illegal construction of the crane

ST2303B Online Monitoring System Support Gps Automatic Picture Collection 0

ST2303B Online Monitoring System Support Gps Automatic Picture Collection 1

Specification

Performance
Pixel 8 million pixels, Pixels can be set
according to the needs of the
scene, the minimum image
resolution is up to 3200*2400
Supervisor shoot cycle Default collection interval is 1 hour, collection interval can be set free.
Picture collection mode Automatic;Manual
Protective Grade IP65
Positioning function Support GPS
Communication mode Telecom, Unicom, Mobile 2G/3G/4G wireless transmission,
TD-LTE B40/B41;LTE-FDD B1/B3/B7; WCDMA B1/B2/B5;GSM B2/B3/B8
Size of the solar panel About 0.1m2(340mm*290mm)
Testing and debugging Testing and debugging on the condition of no disassembling
Machine weight About 4.5Kg( including the solar panel and bracket)
Battery capacity 10AH
Standby Continuous power supply will be for 30 days, if the battery is single full charge charged
Bracket material 304 stainless steel
Diversity It can be suitable for different kinds of Pole and Tower, like Angle steel tower, Cement Poles,steel tube pole etc.
Service life More than 5 years

Two person,three steps,ten minutes

2

Two person operation: One person on the ground and one person on the tower can complete the installation of the whole set of device.



Three steps: Simple adjustment under the tower, Minor adjustment to fix on the tower, testing transferred pass on the ground



Ten minutes: The installation of the device can be completed within ten minutes.



Platform Functions

1.Browsing pictures

Display the latest 5 photos from the current time automatically, and the latest photo is shown strikingly. Double click the picture can see the big clear picture.

5

2. History searching

According to the search conditions can search the pictures accurately. The pictures you searched support to be exported singly, in bulk or Wechat pushing.

6

3. Shooting settings

Set the working time, working frequency, photo pixels, the length and frequency of recording video and so on.

7

4. Authority management

Different rights can be set for different groups. Users can only access their authorized resources.

5. Device positioning

Support GPS and display directly on electronic map. Provide the possibility for the equipment to be recovered in time.

8



6. Statistical analysis

Multi-dimension statistics, emphasis are different, including conditions of taking photo statistics, distribution of device statistics, voltage of the battery statistics, etc.

9

7. Photo rotating

There are nine photos on the screen at the same time, which can rotate automatically, and the quantity of photos on the screen can be set. When hundreds of devices are connected in the front-end of your circumstance, it can greatly save your browsing time.



8. Taking photos and Micro video automatically

Be ready all the time. You can get photos whenever you want.



10





9. Wechat pushing



Single pushing or mass pushing, you can choose flexibly. It is convenient and quick.

11



What would your inspection like in the picture?

12

Inspection device takes pictures and uploads in real time.



Monitoring center processes intelligently and selects artificially.



Wechat App can position accurately the line problems.
