Video Online Monitoring Device Zhy851 Transmission Pole Tower Body Monitoring Unit

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Sea worthy : professional packing, plastic bag, carton, pallets if clients needed. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 20000 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: CCC, CE, CQC, RoHS Model Number: ZHY880A

Detail Information

Product Name:: Video Online Monitoring Device Biaxial Inclination Measurement: X-axis / Y-axis
Wide Temperature Work: -40~+80°C Resolution: 0.01°
Features 1: Stable Performance Features 2: Real-time
High Light:

transmission line monitoring system

,

video monitoring system

Product Description

Video Online Monitoring Device Zhy851 Transmission Pole Tower Body Monitoring Unit



Quick Detail: Transmission line condition ZHY851 Transmission pole tower body monitoring unit



Application Background

  • Intelligent monitoring device
  • Short video recording
  • HD image surveillance
  • Real-time video browsing
  • Support external sensor access
  • Timed/manual capture of live image uploads



Part  One The video monitoring system of transmission line

Transmission line channel visualization remote patrol system

  • Front end system
  • Networking
  • Master station system

Video Online Monitoring Device Zhy851 Transmission Pole Tower Body Monitoring Unit 0

The current situation and existing problems of traditional line visualization

Video Online Monitoring Device Zhy851 Transmission Pole Tower Body Monitoring Unit 1

System highlights

  • Sound and light caveat
  • Wire temperature measurement
  • "Three-span" channel visualization
  • Mobile interconnected
  • Advanced management features
  • Diversified monitor
  • Integrated monitoring

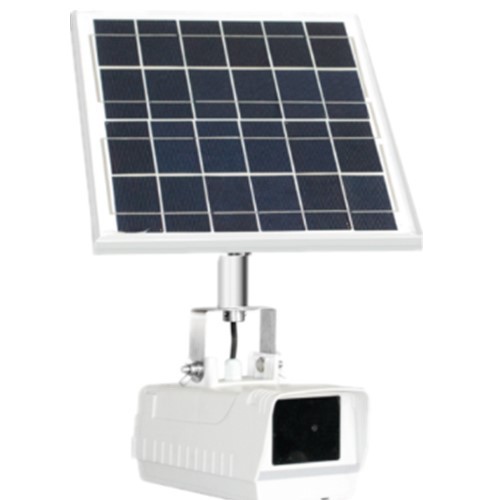

ZHY851 Transmission pole tower body monitoring unit

Features

  • Small size for distributed installation on the tower
  • The picture is clear, and multiple key areas of the tower can be visually monitored by installing multiple devices.
  • Timely capture photos, wirelessly transmit to the transmission line status monitoring device via Bluetooth/WIFI, and then transmit to the control center monitoring platform through the 3G/4G wireless communication module to realize real-time online monitoring and warning of the hidden dangers of the transmission tower body.

Video Online Monitoring Device Zhy851 Transmission Pole Tower Body Monitoring Unit 2

Front-end feature highlights

Flexible settings for visualization

  • Image pixels are adjustable
  • Adjustable working hours
  • Adjustable capture interval
  • Support remote upgrade
  • Support short video recording
  • Support remote wake-up image capture
  • Support device real-time status monitoring
  • Support CMCC, China Telecom, China Unicom

Standardized module design

The front-end device hardware design is integrated, standardized, modular, and serialized. Flexibility to match the module according to the needs of the site to save investment costs and meet the visualization requirements in complex environments





"Smart +" function extension

Both ZHY810C and ZHY860 can support interface expansion, which can connect different function sensors according to site requirements, and can implement on-site image capture or video recording according to site conditions to realize comprehensive real-time monitoring of transmission line channel status and environment.

Design highlights

  • Monitor and upload wire temperature in real time
  • Mass storage function
  • Low power design

Main characteristics

  • Biaxial inclination measurement (X-axis / Y-axis)
  • Wide temperature work -40~+80°C
  •  Resolution 0.01°

Features

  • Simultaneous measurement of wind speed, wind direction, temperature,
  • humidity, pressure, rainfall and other meteorological parameters
  • Can work around the clock, free from heavy rain, snow, frost and weather
  • High measurement accuracy and stable performance

Video Online Monitoring Device Zhy851 Transmission Pole Tower Body Monitoring Unit 3











The main function



Front-end image intelligent recognition

The intelligent analysis and processing of the collected images identifies large-scale machines such as hanging towers, cranes, excavators, cement pump trucks, bulldozers, etc., which are likely to cause external damage in the line channels, and the hidden danger images are actively uploaded to the background server. Improve hidden danger identification and line inspection efficiency.

PTZ control

Combined with warning position and video browsing to achieve full-time on-site inspection of fixed-point timing

Real-time video browsing and recording

In view of the frequent occurrence of accidents in special transmission channels such as the “three-span” section, real-time monitoring and tracking in the event of an emergency, timely monitoring of the situation, timely recording, and preservation of evidence

Other functions

Timed photo, standard interface, GPS positioning, battery voltage detection / internal temperature detection.

Video Online Monitoring Device Zhy851 Transmission Pole Tower Body Monitoring Unit 4

Networking scheme

In this scheme, the monitoring terminal transmits the line image data to the background server through the enterprise private line telecommunication network, through the enterprise gateway and the firewall, and the user views the line channel situation in the system software platform, and can view the image through the mobile phone WeChat, APP software. Data, which is convenient for monitoring center personnel to monitor the line situation in real time.

Video Online Monitoring Device Zhy851 Transmission Pole Tower Body Monitoring Unit 5

Information extranet solution

In this solution, the monitoring terminal transmits the line image data to the information external network through the VPDN private network through the enterprise gateway and the firewall, and the user can view the line condition in the system software platform, and in the case that the information external network opens the Internet exit, Can also achieve image data viewing via mobile phone WeChat, APP software.

Power Supply System

A variety of power supply methods can be combined to provide power supply throughout the day,
providing reliable power supply for data acquisition systems and
monitoring systems in the tower.

Data Acquisition and Analysis System

High-performance acquisition host for data acquisition front-end, using sensors to analyzes and collects various surrounding data regularly (humidity, temperature, wind direction, etc.) through pre-set procedures sequence . The video probe can continuously monitor the surrounding environment in real time, and the foreground system processes the collected data and transmit it to the background control center in time through wired or wireless mode (GSM/GPRS). /CDMA) .

Display diagram of transmission line condition monitoring
