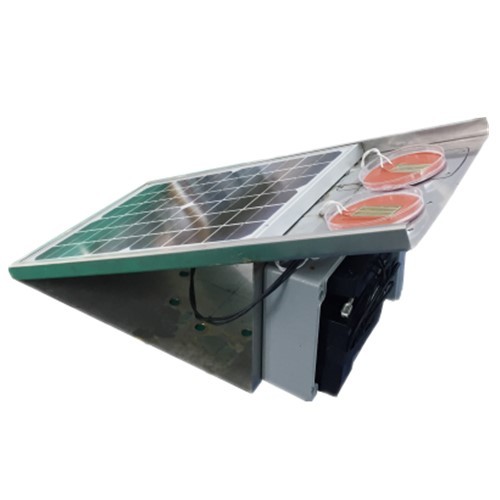

Real Time Online Monitoring System Atmospheric Corrosion Monitoring Device

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Sea worthy : professional packing, plastic bag, carton, pallets if clients needed. Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 20000 Set/Sets per Month
Place of Origin: China Brand Name: DINGLI
Certification: CCC, CE, CQC, RoHS Model Number: Customized

Detail Information

Product Name:: Atmospheric Corrosion Monitoring Device Duration: 4 Hours
Cruise Time: 100 Km/h Playload: 3-7 Kg
Probe Life: > 3 Months Corrosion Current: 10nA ~ 3mA, ± 3%
High Light:

online condition monitoring system

,

video monitoring system

Product Description

Real Time Online Monitoring System Atmospheric Corrosion Monitoring Device



Quick Detail:Electricity MaintenanceTransmission line Atmospheric corrosion monitoring device

Application Background

The climate in the areas where the transmission lines are located varies, and the corrosion environment is complex and changeable. The steel components of the equipment will experience various atmospheric corrosion damage. After the corrosion, the electrical and mechanical properties of the equipment will be greatly reduced, which seriously affects the safety of power transmission. Therefore, the atmospheric corrosion condition of the environment where the transmission line is located needs to be monitored in real time to provide technical support for transmission line corrosion protection. This product is distributed installation and measurement, realizes online remote monitoring, implements platform management, and graphical display. It is more intelligent and intuitive, significantly improves system operation and maintenance efficiency, and reduces enterprise operation and maintenance costs and labor costs.

Real Time Online Monitoring System Atmospheric Corrosion Monitoring Device 0

Product Principle

The degree of corrosion can be judged according to the number of electrons transferred in electrochemical corrosion. In order to calculate the number of electrons transferred between two electrodes, two different metals are connected through a wire to form a corrosion couple. Measure the current on the wire and calculate the cumulative value of the current (that is, the amount of accumulated charge) to estimate the quality of the corroded metal.

Basic functions
1. Dual channel commercial corrosion probe synchronous monitoring
2. Online collection of ambient temperature and humidity
3. Photovoltaic and energy storage independent power supply system
4. Data time stamping and local storage
5. Real-time remote data transmission for the Internet of Things

Technical parameters
1. Corrosion current: 10nA ~ 3mA, ± 3%
2. Probe life:> 3 months
3. Ambient temperature: -20 ~ 125 ℃, ± 0.5 ℃
4. Relative humidity: 10 ~ 100%, ± 4%
5. Average power consumption: <0.2W
6. Data storage:> 5 years, 10s / Sample
7. Data transmission: GPRS, 60s / Sample
8. Device weight: 6.5 ± 0.5kg

Real Time Online Monitoring System Atmospheric Corrosion Monitoring Device 1

Features

  • Dual-channel corrosion probe synchronous detection, the detection efficiency is greatly improved, and the overall reliability is high.
  • Online collection of ambient temperature and humidity, real-time control of the operating environment status of the transmission circuit.
  • Photovoltaic and energy storage independent power supply system, optical storage power, convert solar energy and store electrical energy, power equipment for a long time, the average energy consumption of the system is less than 0.2W.
  • Data time stamp and local storage, realize the storage and export of system historical data.
  • Real-time remote data transmission of the Internet of Things, graphical display of data, and intelligent and intuitive platform management.

Shipping:

1.Specific packaging can be made to order.
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.
The standard procedure for making wooden case is as follows:

Real Time Online Monitoring System Atmospheric Corrosion Monitoring Device 2



1. About us
HENAN DINGLI was founded in 1963 as a small electric power equipment manufacturer, after more than 50 years’development, DINGLI now is group company dedicated on total solutions for electricity projects covering survey, design, manufacture, complete equipment supply, construction, operations, maintenance, investment and so on. HENAN DINGLI actively devote to power grid construction, participated in all UHV construction projects and made an outstanding contribution to UHV transmission lines of China.

Real Time Online Monitoring System Atmospheric Corrosion Monitoring Device 3



Since 2000, HENAN DINGLI has been actively developing international business, successively built Ecuador, Cambodia manufacturing Base, Quito tower design center, Spain, Peru, Chile and other overseas service centers. We have got a number of international certificates, such as ISO certificate covering design, equipment and construction, AWS welding certificate, ASTM system certificate, Chile NCH 203 certificate, Colombia RETIE certificate, Costa Rica material quality Certificate, etc. By the end of 2018, the overall proportion of international business is more than 30% of the company's main revenue. We have provided high-quality products and services to more than 100 customers in 33 countries, including the markets of Europe, America, Africa and Southeast Asia. With strong technical support and on-site service capability, HENAN DINGLI has saved a lot of project costs for customers and won their recognition.
2. International Certificate
ASTM,RETIE,Nch203,Costa Rica ASTM,EPC,TCL,ect.
3. After-Sale Service
Technical Support
Technical support on pre-sales stage. DINGLI has own survey and engineering company with more than 100 engineers. We have special pre-sales engineer to work with customer at early stage of the project.



Real Time Online Monitoring System Atmospheric Corrosion Monitoring Device 4


Site assistance
Site assistance in Latin American market, so far we have sales and service center in Spain, Chile, Bolivia, Peru, Ecuador, Senegal, which will make a fast response for customer.
Warehouse and Emergency Supply
Warehouse and emergency supply for spare parts, damage parts and missing parts: DINGLI has built production line in Quito and warehouse for transmission line and distribution network in Ecuador, Bolivia and Senegal with common use spare parts.

Real Time Online Monitoring System Atmospheric Corrosion Monitoring Device 5


Design and Consultant
Supported by both domestic engineering company and Quito tower design center, could provide technical consultant and design service within our scope of work. For Quito tower design center, most of the engineers are local staffs. The Design is based on ASTM protocols meantime with GB material standard, which will reduce the weight, and avoid the replacement on the profiles to save the working time.
