120KN Disc Suspension ANSI Toughened Glass Insulator

Minimum Order Quantity : Negotiation Price : Negotiation
Packaging Details : Standard National Packing Method Delivery Time : Depends on the quality of client
Payment Terms : 30% advanced payment , 70% balance payment before shipment. Supply Ability : 2000 Ton per Month
Place of Origin: China Brand Name: DINGLI
Certification: ISO9001,ASTM, Model Number: Insulator

Detail Information

Material: Glass, Glass Type: Insulator
Model Number:: U120B/146 Certification: ISO9001/ROHS
Usage: Insulation Protection OEM/ODM: Available
High Light:

ANSI Toughened Glass Insulator

,

Disc Suspension Toughened Glass Insulator

,

120KN Toughened Glass Insulator

Product Description

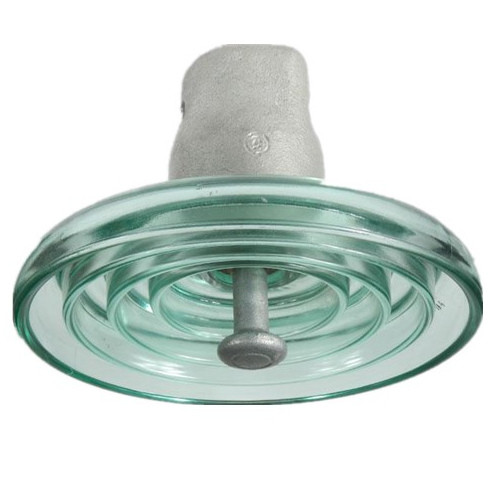

33KV 120KN U120BP Toughened electrical Disc Suspension High Voltage Glass Insulator



Quick Detail: 33KV 120KN U120BP Toughened electrical Disc Suspension High Voltage Glass Insulator



Product Range:





Technical Requirement
1
The contact surface of the steel leg and adhesive should be coated with a buffering agent layer prior to binding
2
Creepage distance:450mm
3
Others should comply with the provisions of IEC60383 , in addition to the provisions of drawing
4
Electrical performance:
1)
Lightnig impact withstand voltage (5 pieces):450KV
2)
Wet power-frequency withstand voltage (5 pieces):180KV
3)
Puncture withstand voltage:130KV
4)
Impact breakdown voltage in air:P.U=105KV
5)
Radio interference under 10KV:50uv
6)
Visible corona voltage:Steel leg:18KV Iron cap:22KV
7)
Electromechanical failing load test SFL=120KN X-3∝ ∧SFL



ASNI Toughened glass insulator,high voltage insulator,glass insulators

The toughened glass insulator are used on high voltage , ultra-high voltage AC and DC transmission line to insulate and hang wire.

Advantage:

1, light-weight

2, high strength

3, long creepage distance

4, saving metal material and reduce the cost of line

5, aging resistance

6, strence soiling

7, superior electrial function, metchnical capability, high and low tempreture resistance



Standard particulars

Type LXY-40C
IEC Class U40C
Nominal Diameter D (mm) 175
Unit Spacing H (mm) 140
Nominal Creepage Diameter D (mm) 190
Couping Size 11C
Min.Meachnacal Failing Load (KN) 40
Min.Impact Strength (N.m) 5
Dry Lightning Impulse Withstand Volt.KV 75
Power Frequency Withstand Volt.KV Min.Wet One Minute 30
Min.Puncture Voltage 90
Approx.Net Weight (Kg)

2.8

120KN Disc Suspension ANSI Toughened Glass Insulator 0



Packaging

1. Specific packaging can be made to order.

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.And also can send by sea or air, kindly send me the port of yours.
